Part 3

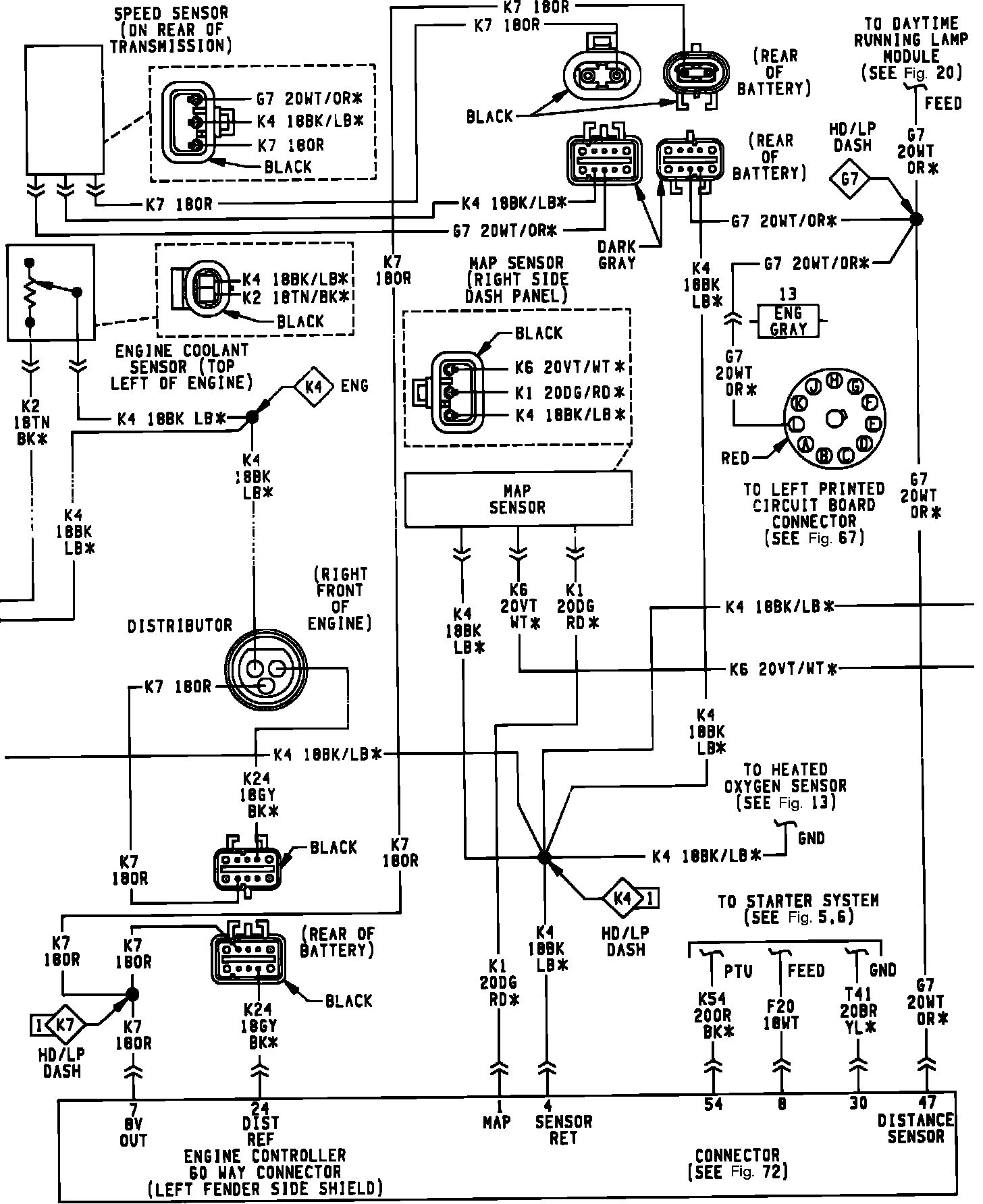

Fuel Injection And Ignition System Wiring Diagram (3 Of 5):

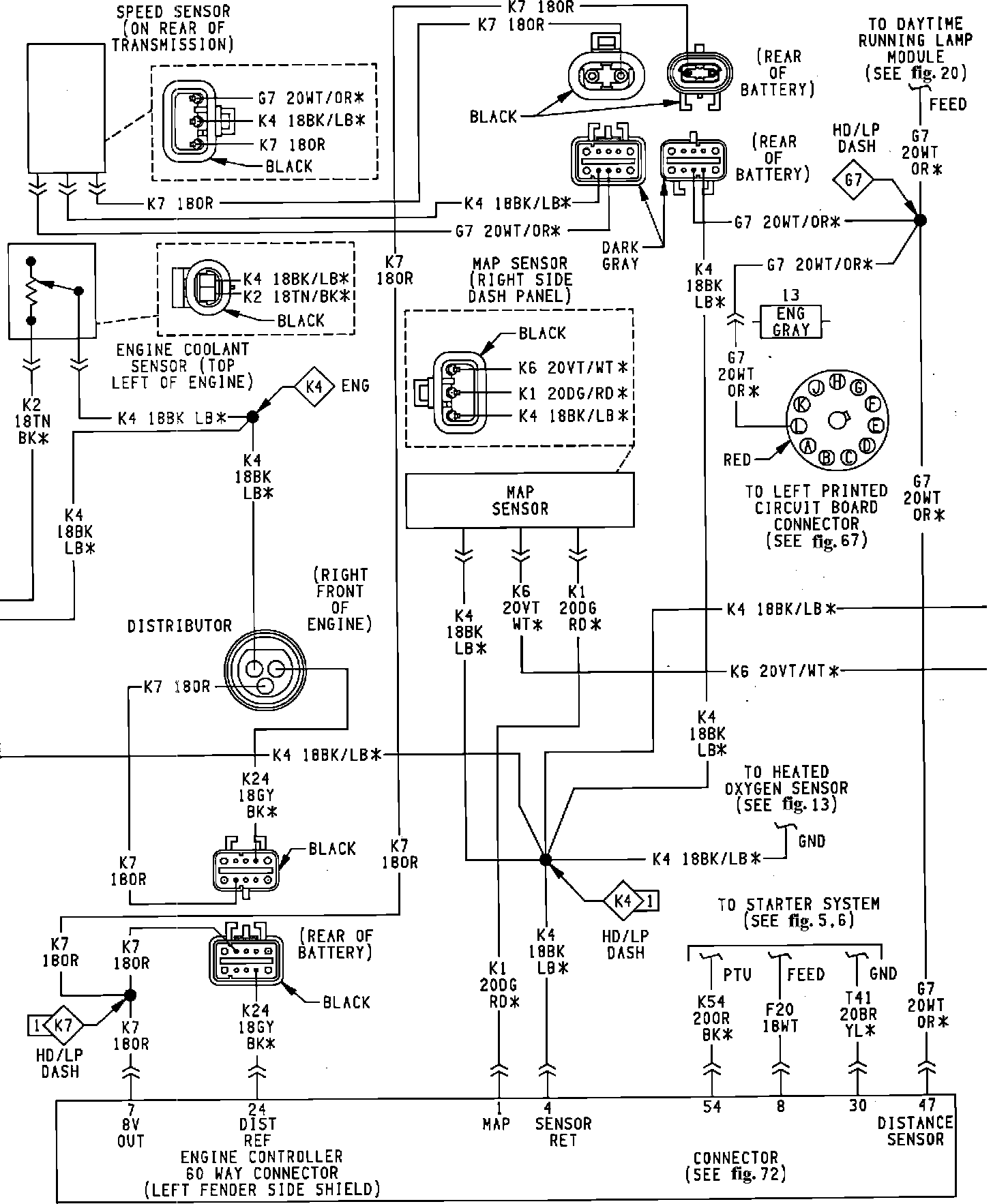

Fuel Injection And Ignition System Wiring Diagram (3 Of 5):

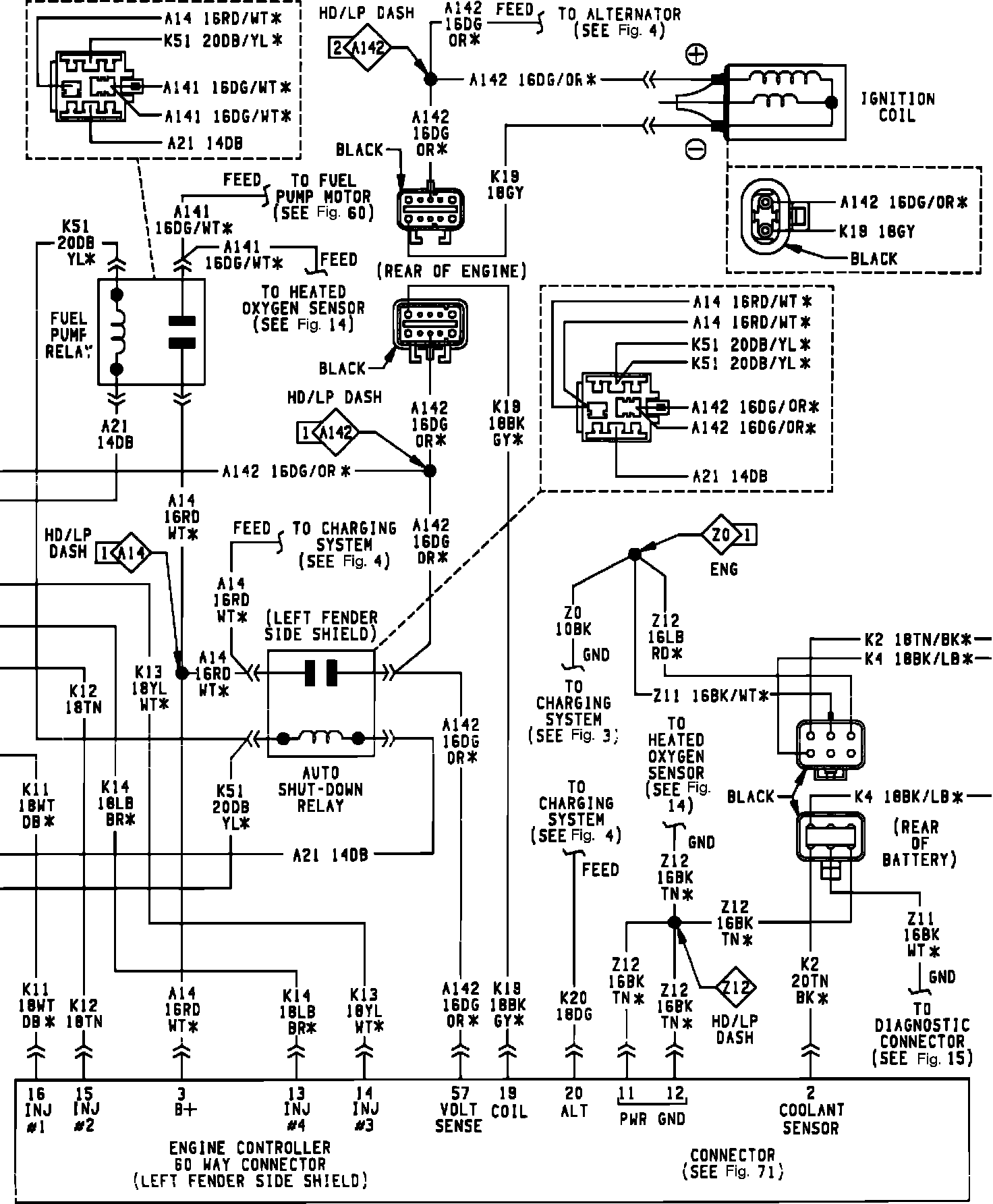

Electronic Fuel Injection Ignition System:
