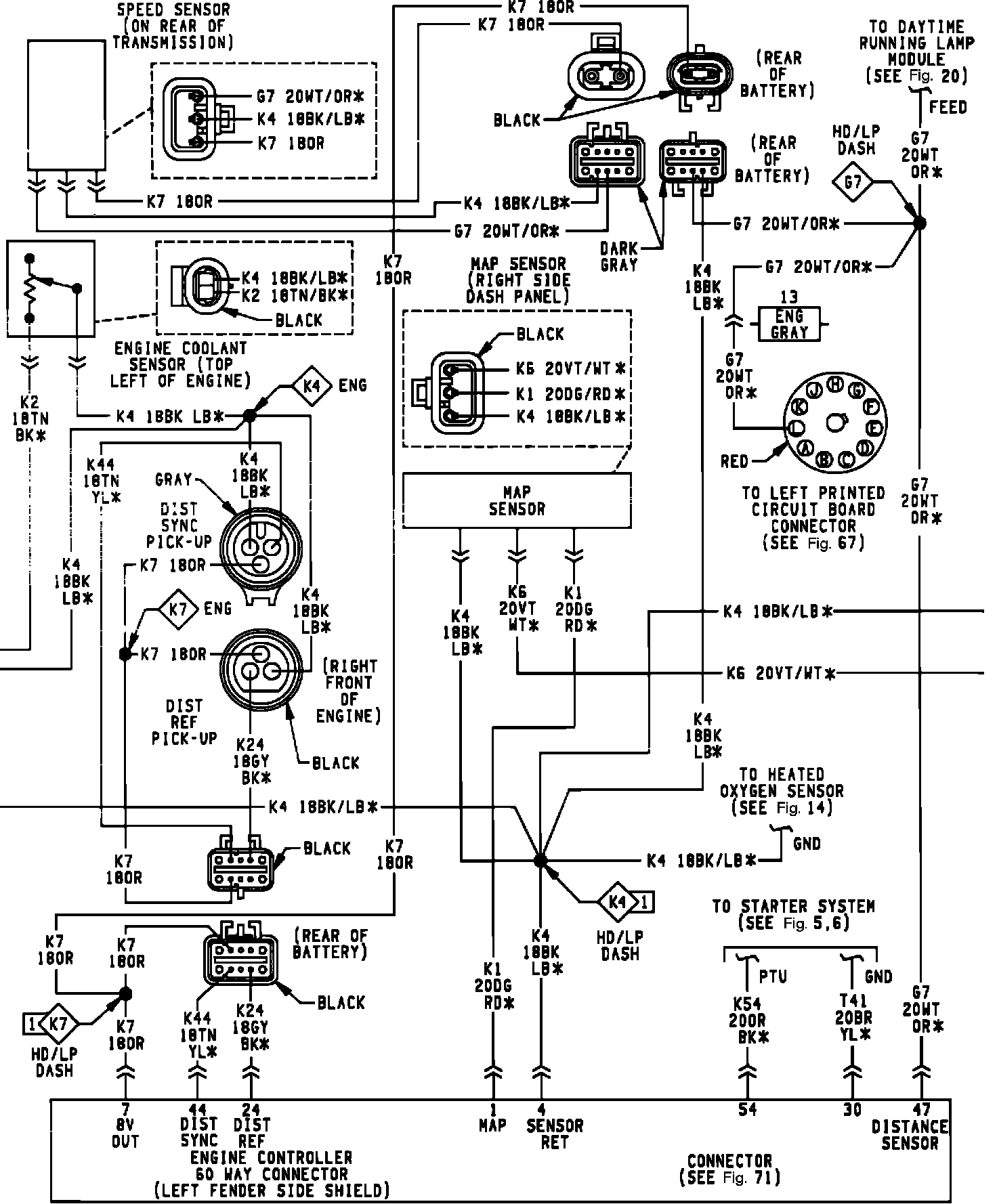

Fuel Injection And Ignition System Wiring Diagram (4 Of 5):

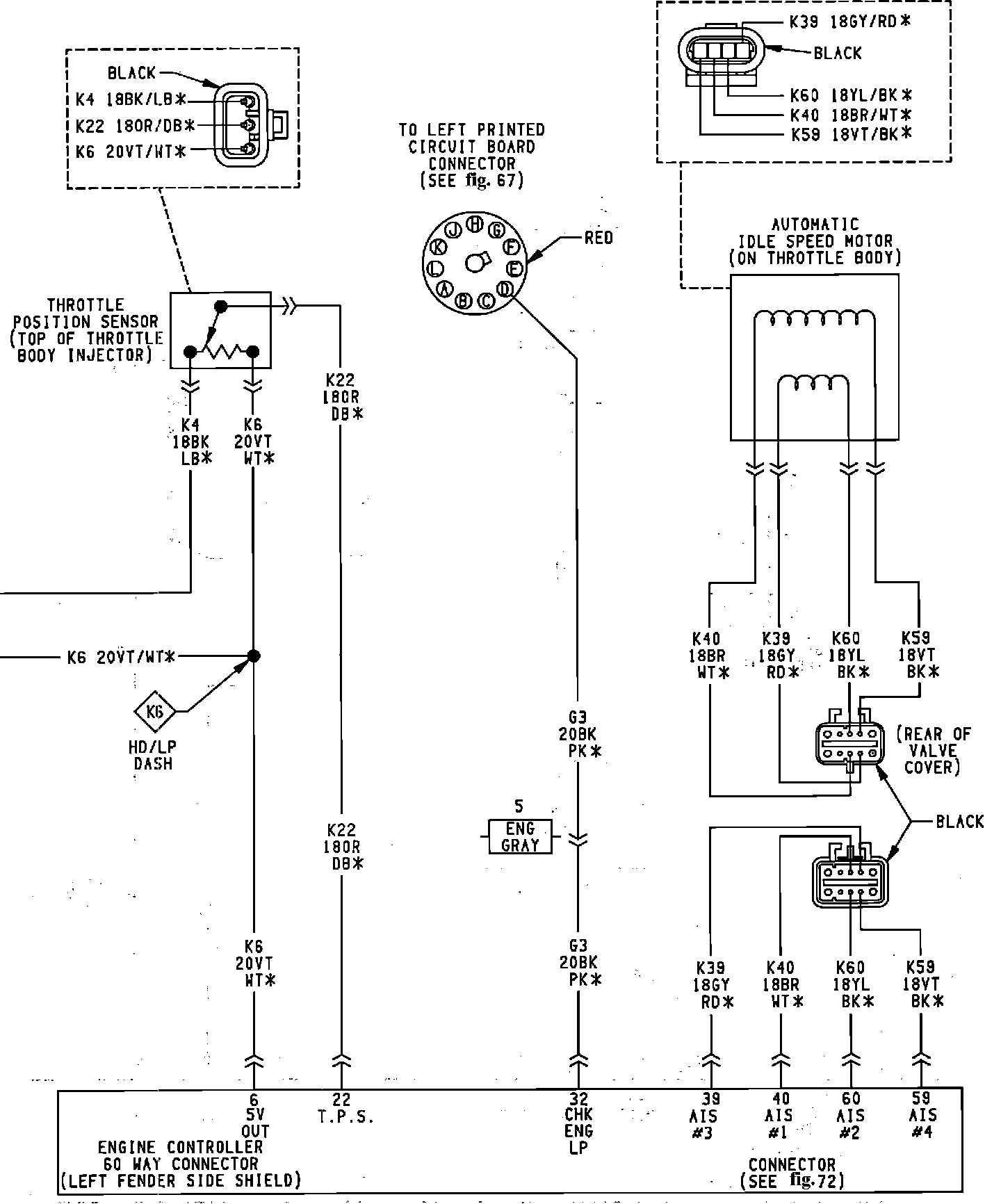

Fuel Injection And Ignition System Wiring Diagram (4 Of 5):



Electronic Fuel Injection System:
