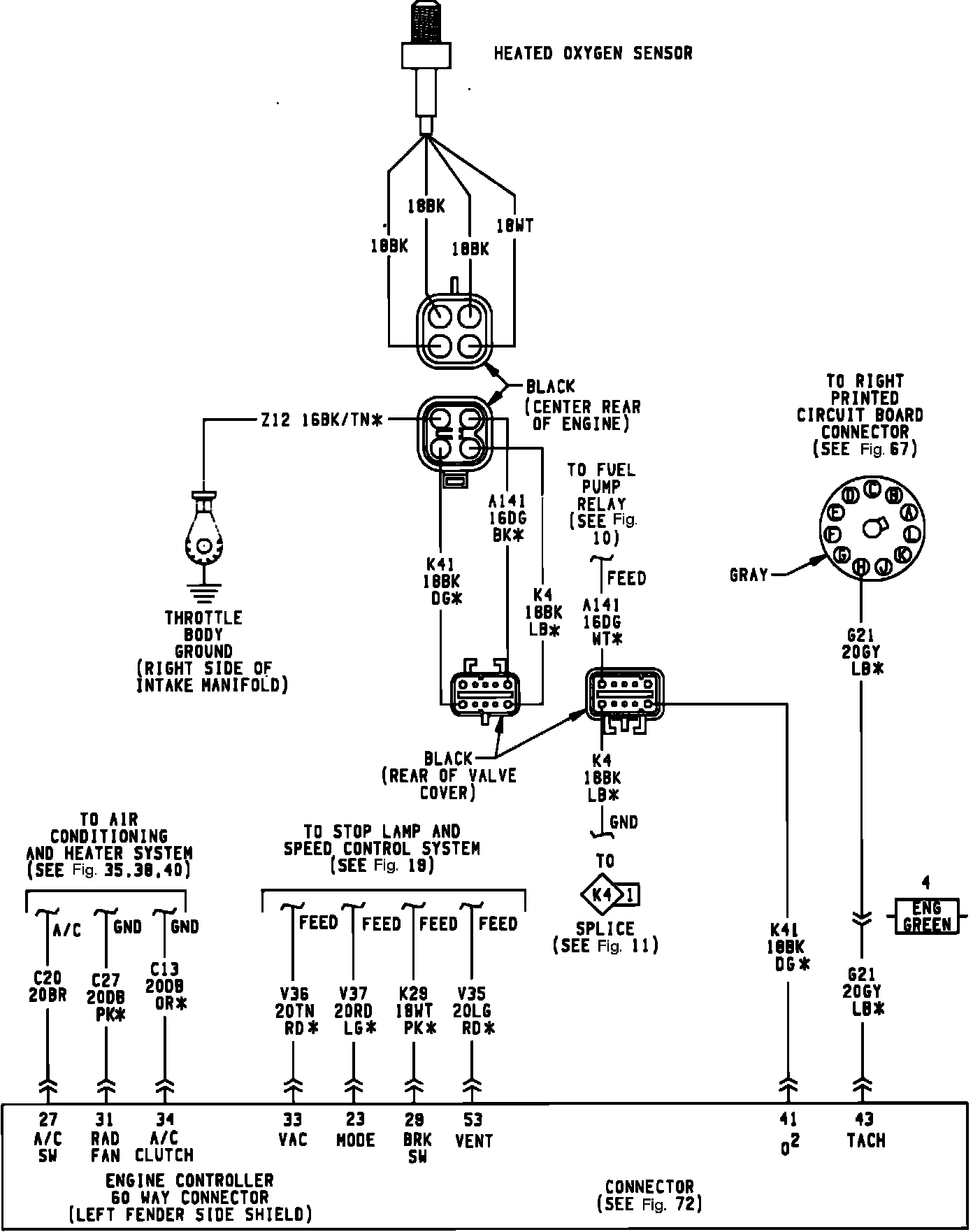

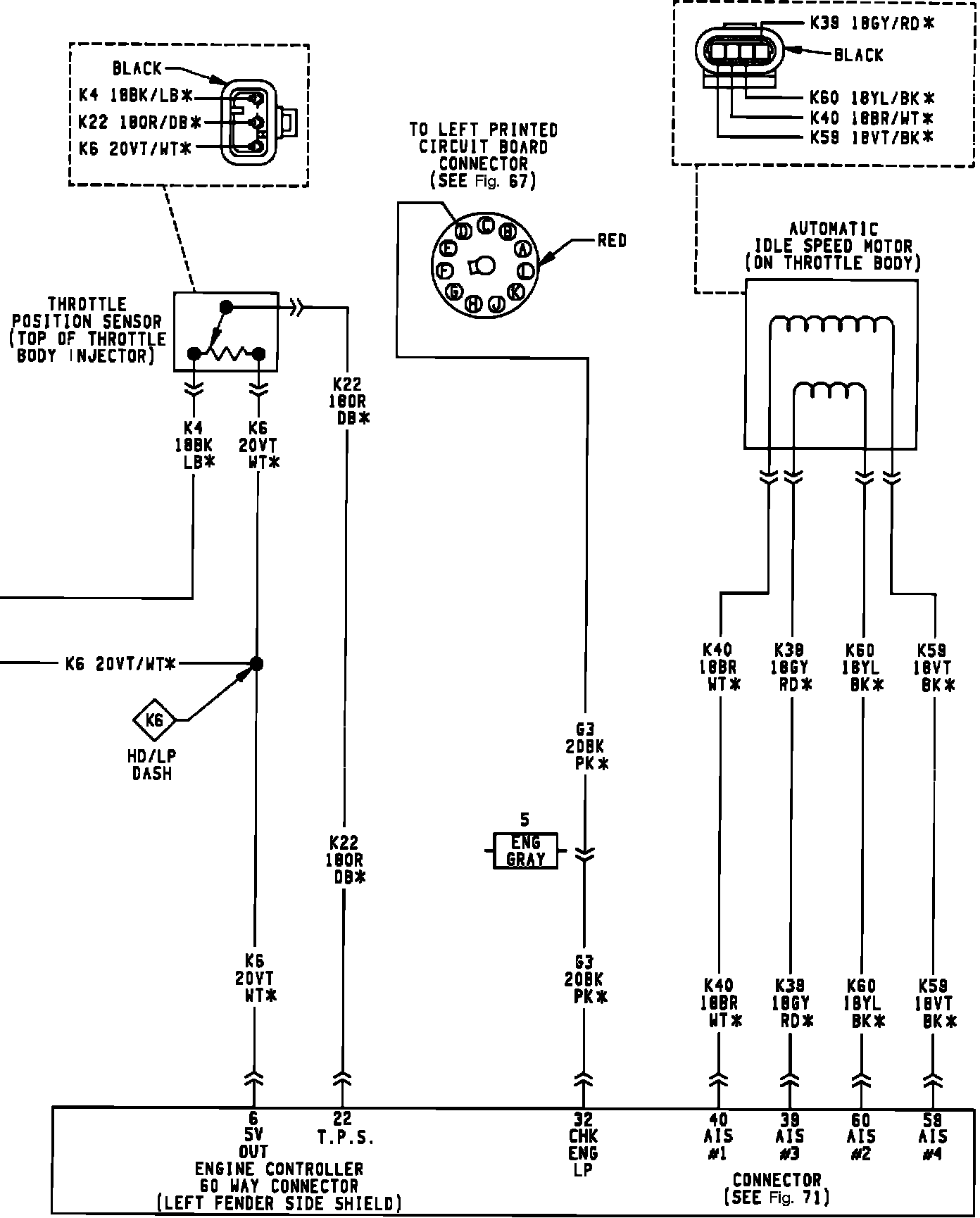

Fuel Injection And Ignition System Wiring Diagram (5 Of 5):

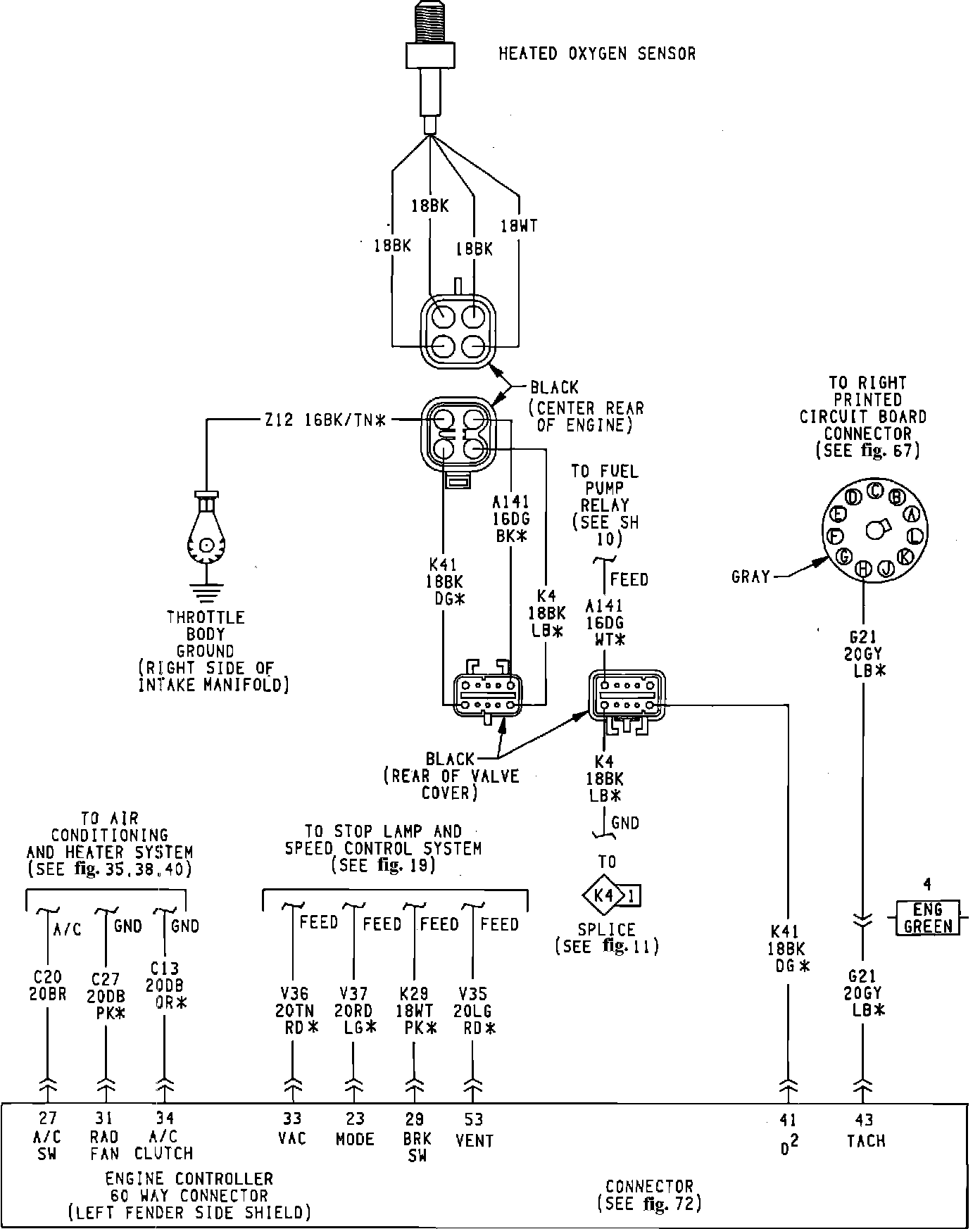

Fuel Injection And Ignition System Wiring Diagram (5 Of 5):



Electronic Fuel Injection Ignition System:
