Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1992
>>
Sundance L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

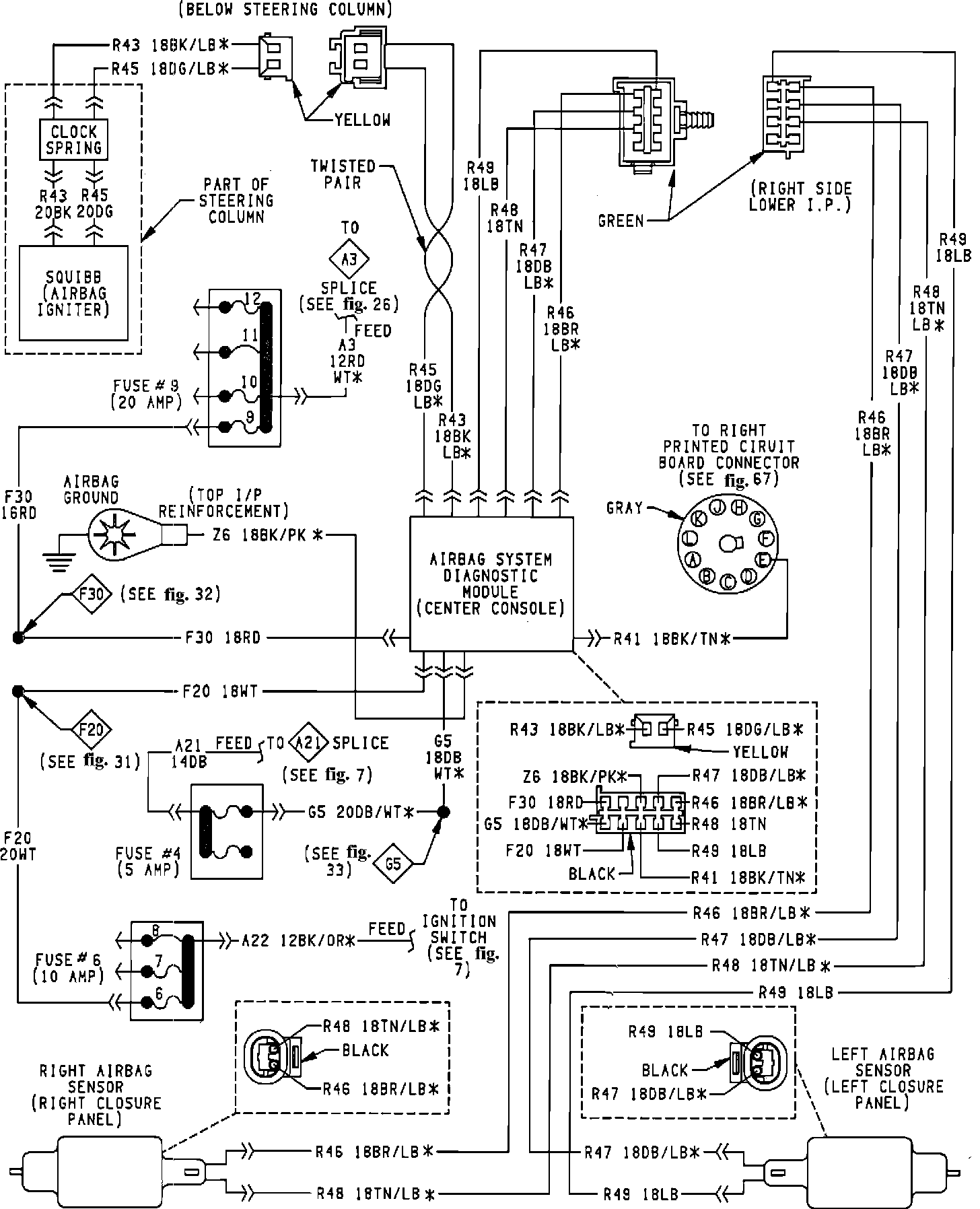

Airbag System:
