Plymouth
>>
1992
>>
Sundance L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission
Automatic Transmission

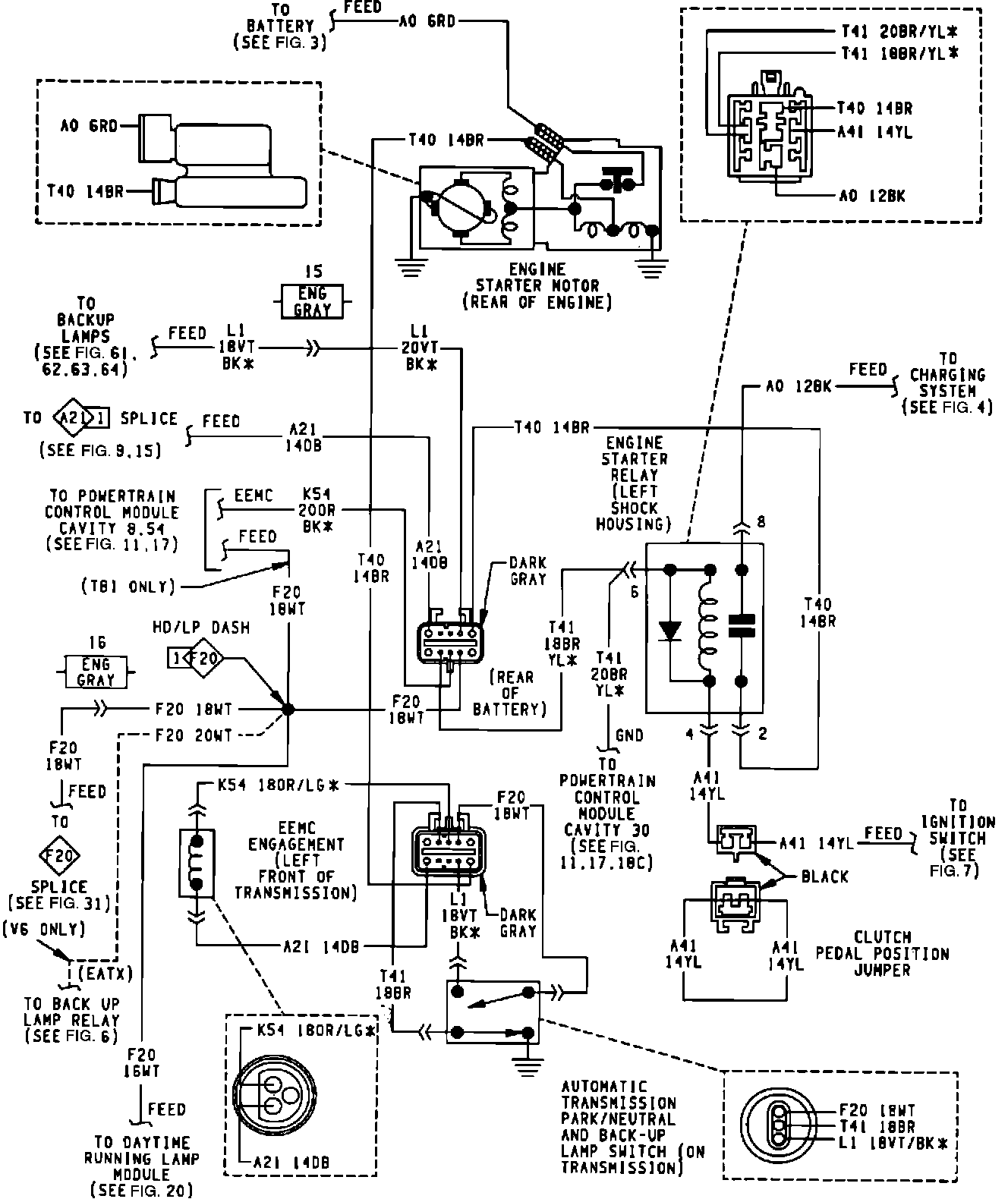

Starter System With Electronic Transaxle:
