Home >> Plymouth >> 1992 >> Sundance L4-153 2.5L SOHC VIN W >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-26A Repairing "Radiator Fan Circuit" Fault >> Part 2 of 2

Part 2 of 2

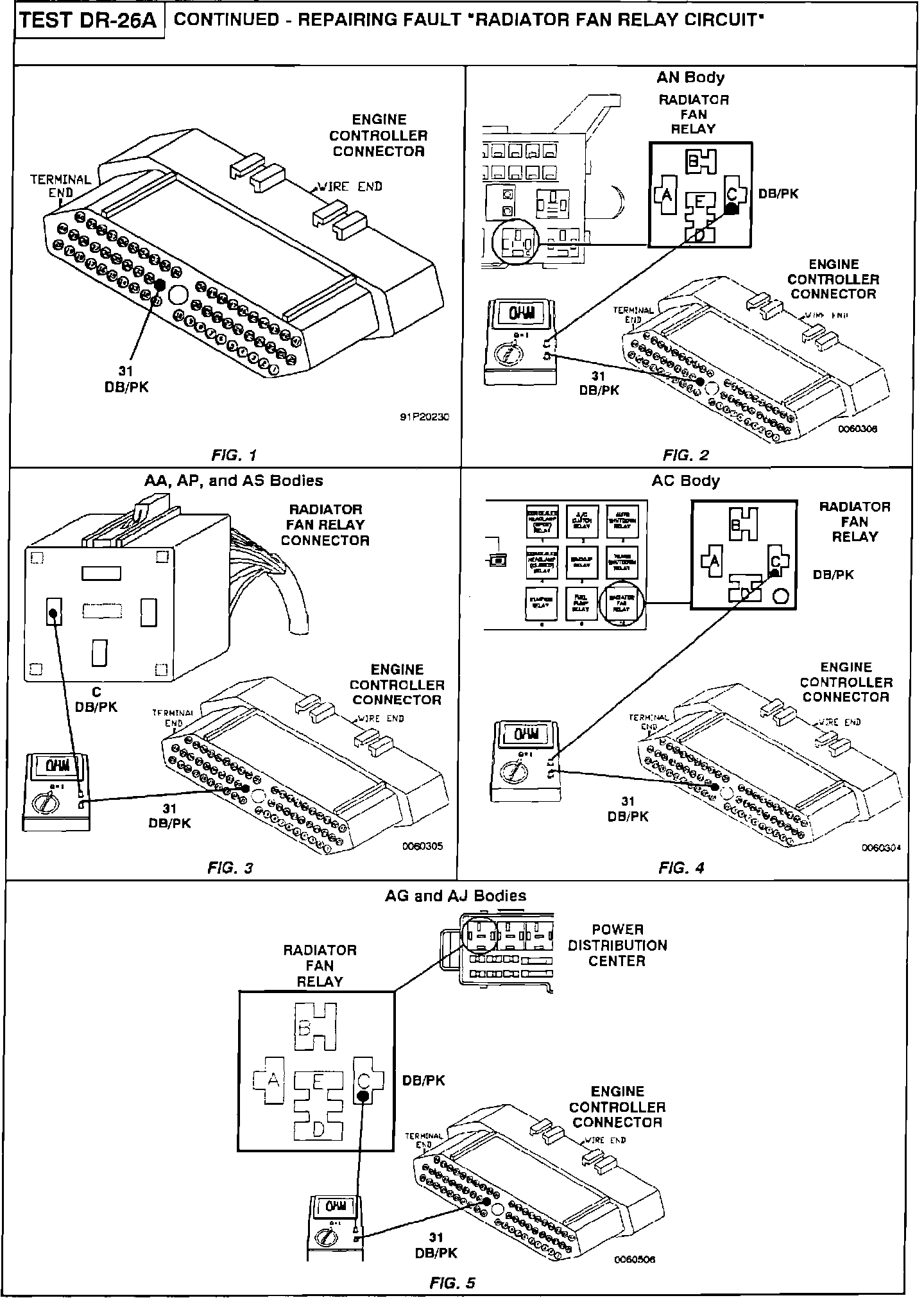

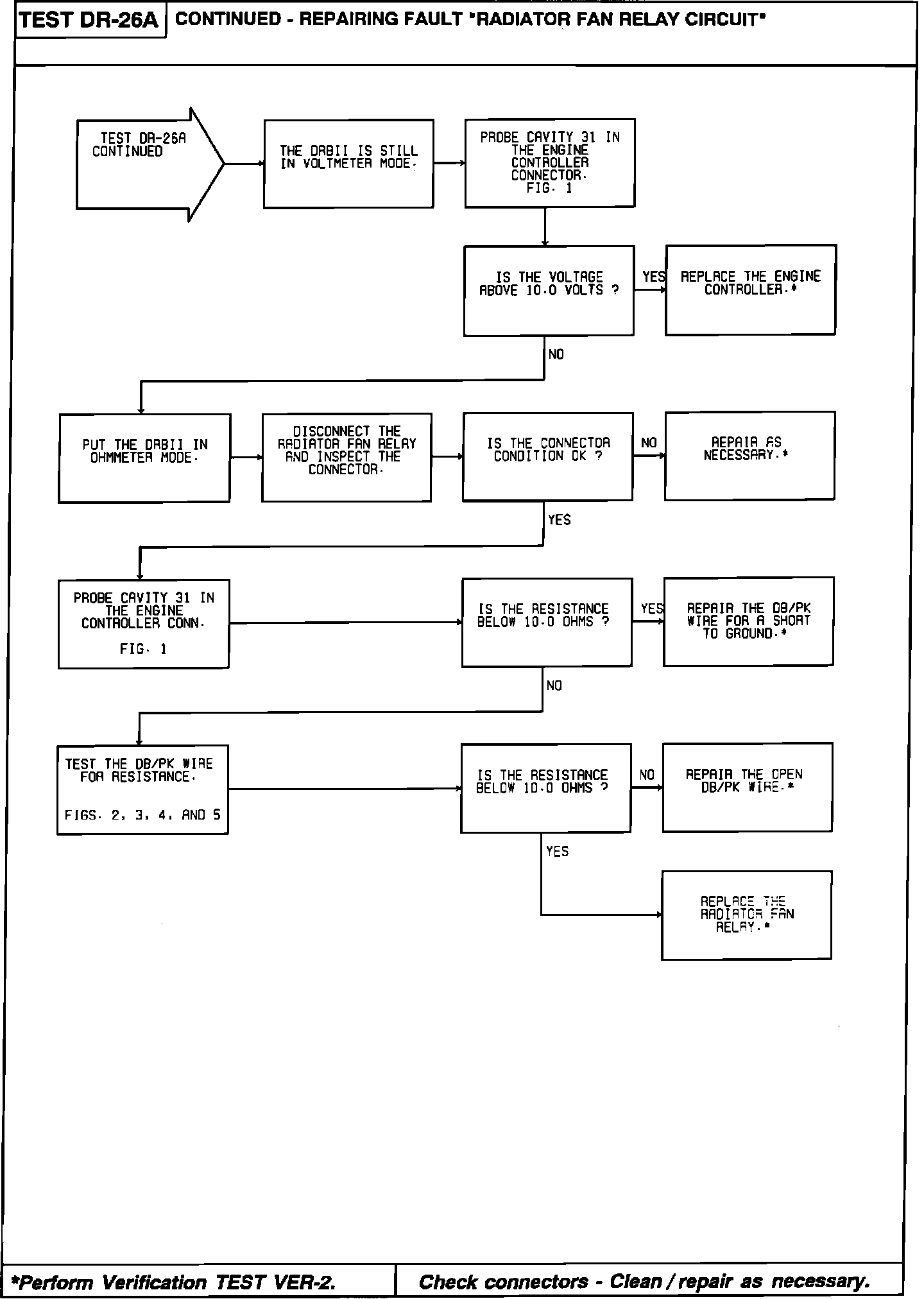

Test DR-26A Repairing "Radiator Fan Relay Circuit":



Test DR-26A Repairing "Radiator Fan Relay Circuit":
