DR-27A Repairing "No ASD Relay Sense" Fault
DR-27A Repairing "No ASD Relay Sense" Fault

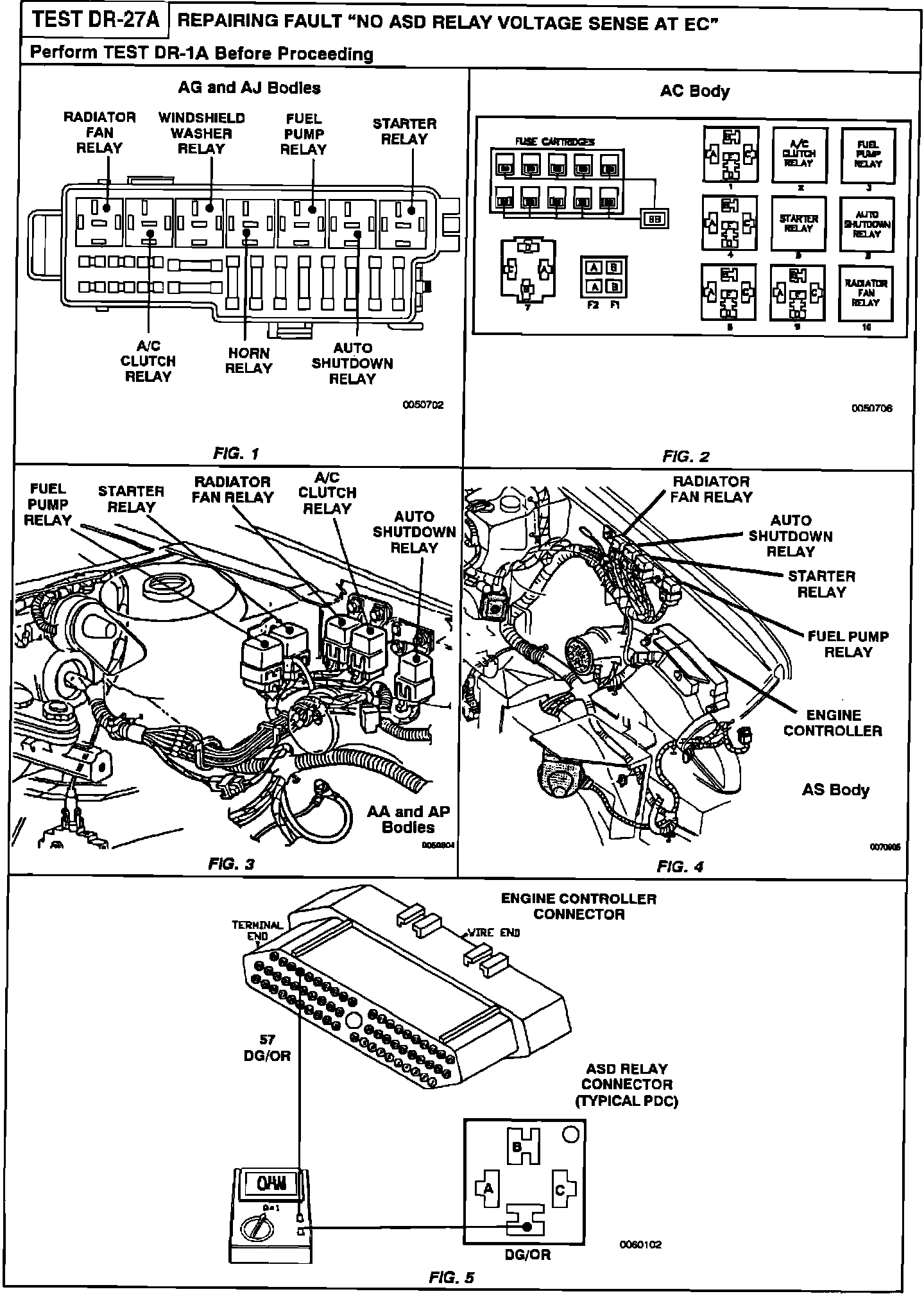

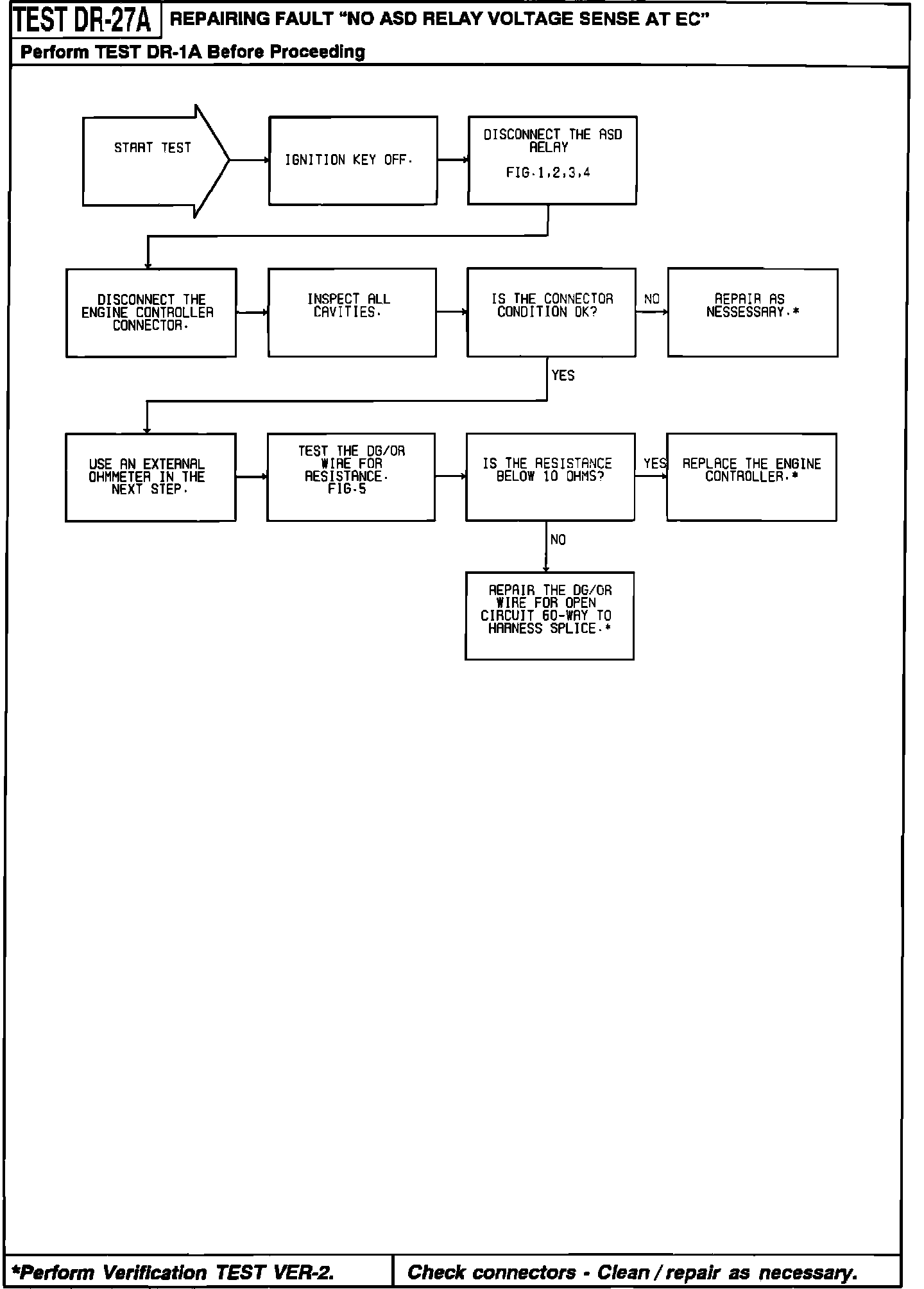

Repairing "No ASD Relay Voltage Sense At EC" Fault:
Repairing "No ASD Relay Voltage Sense At EC" Fault:
