Plymouth
>>
1994
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
61 Thru 80
>>
79
61 Thru 80: 79

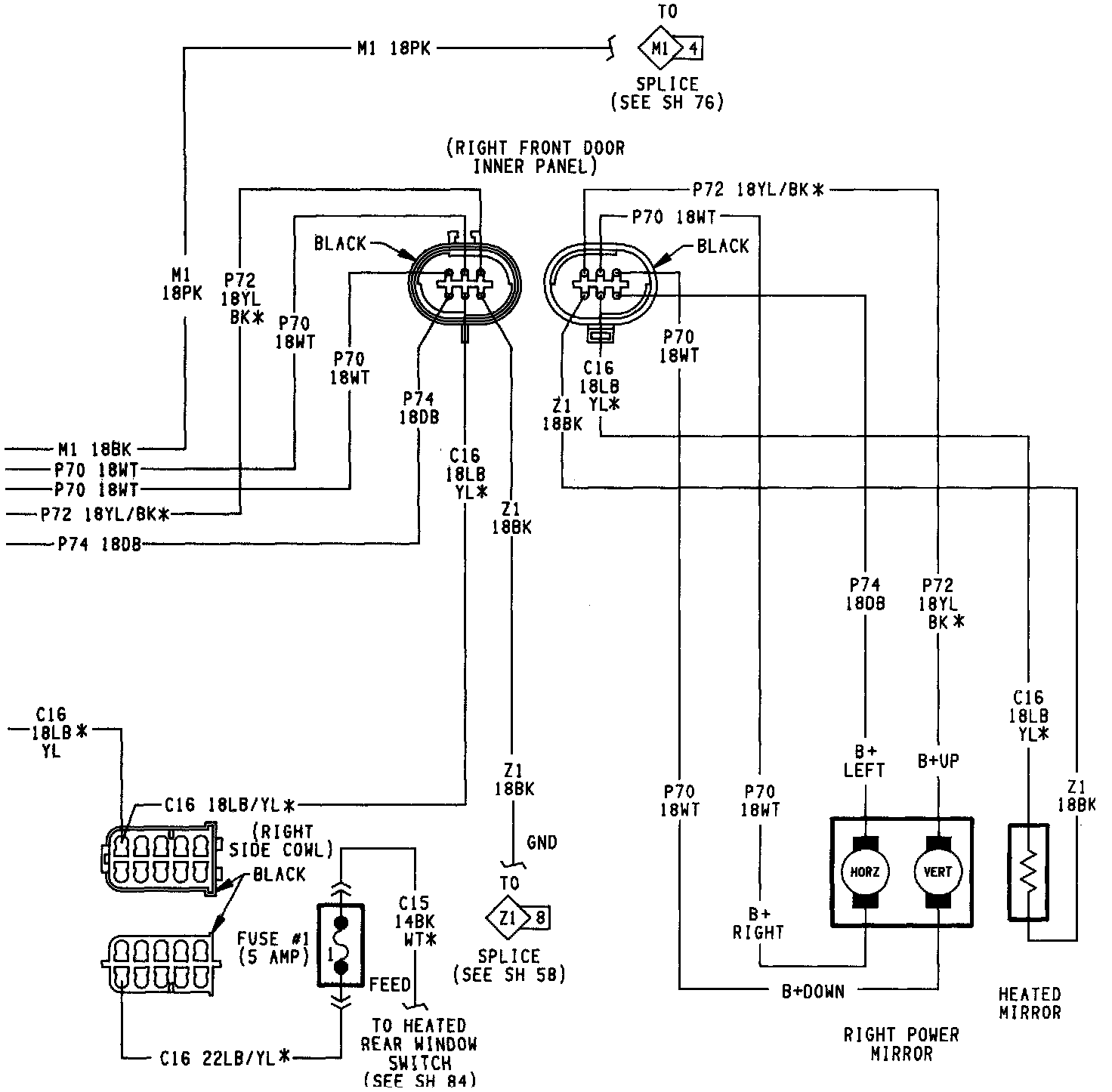

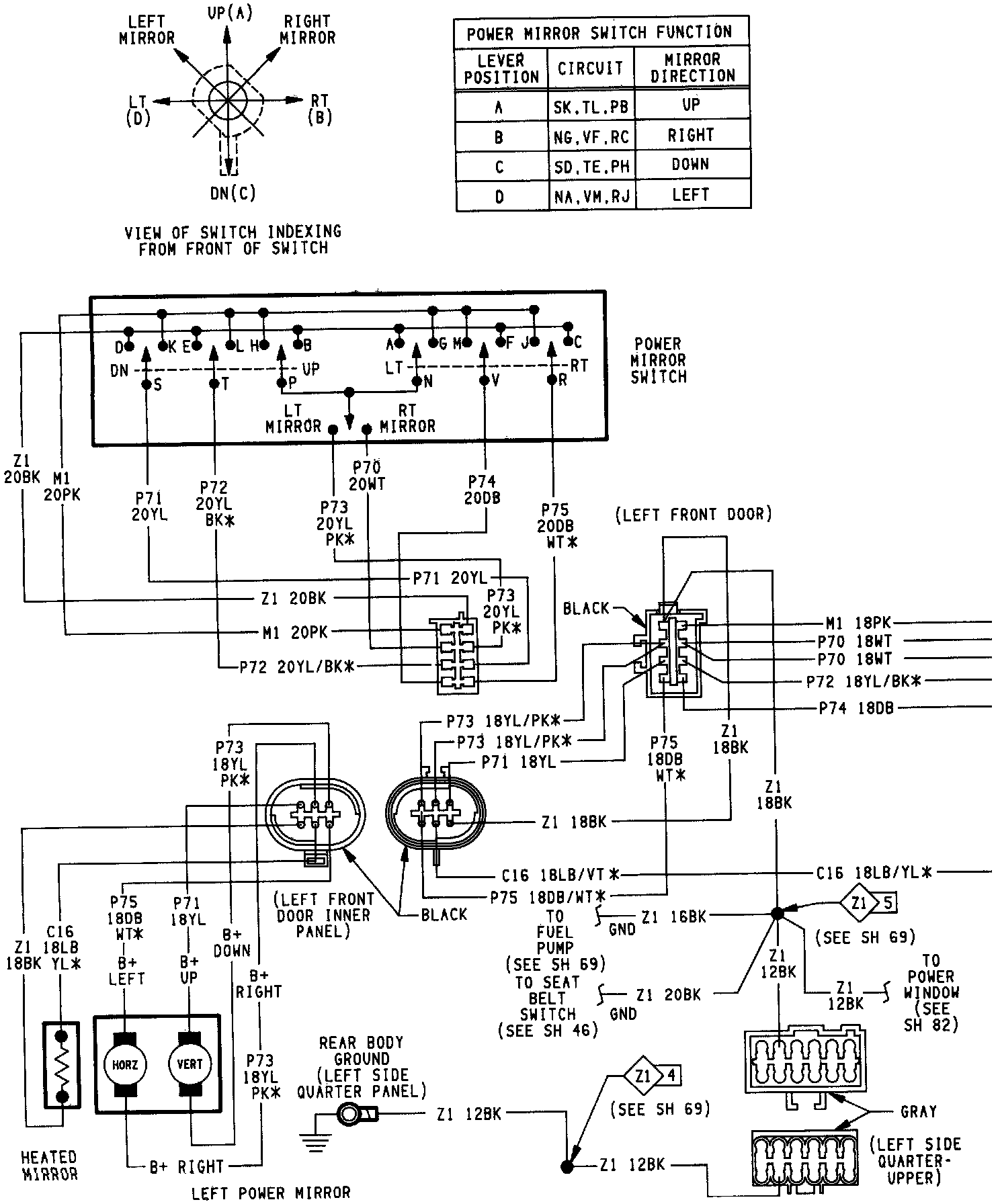

Power Remote Heated Mirrors:
Power Remote Heated Mirrors:
