Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

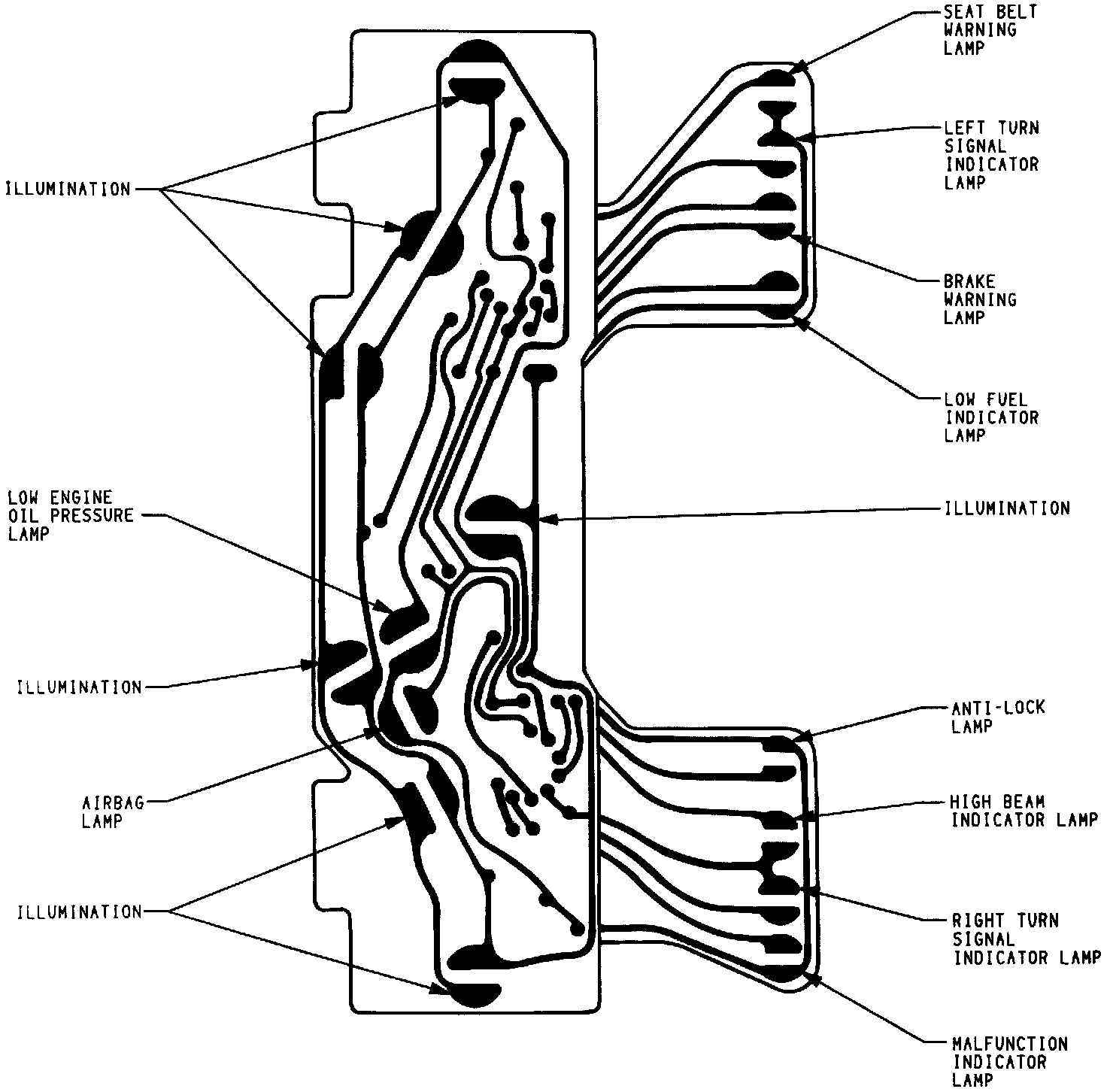

Cluster Printed Circuit Board:

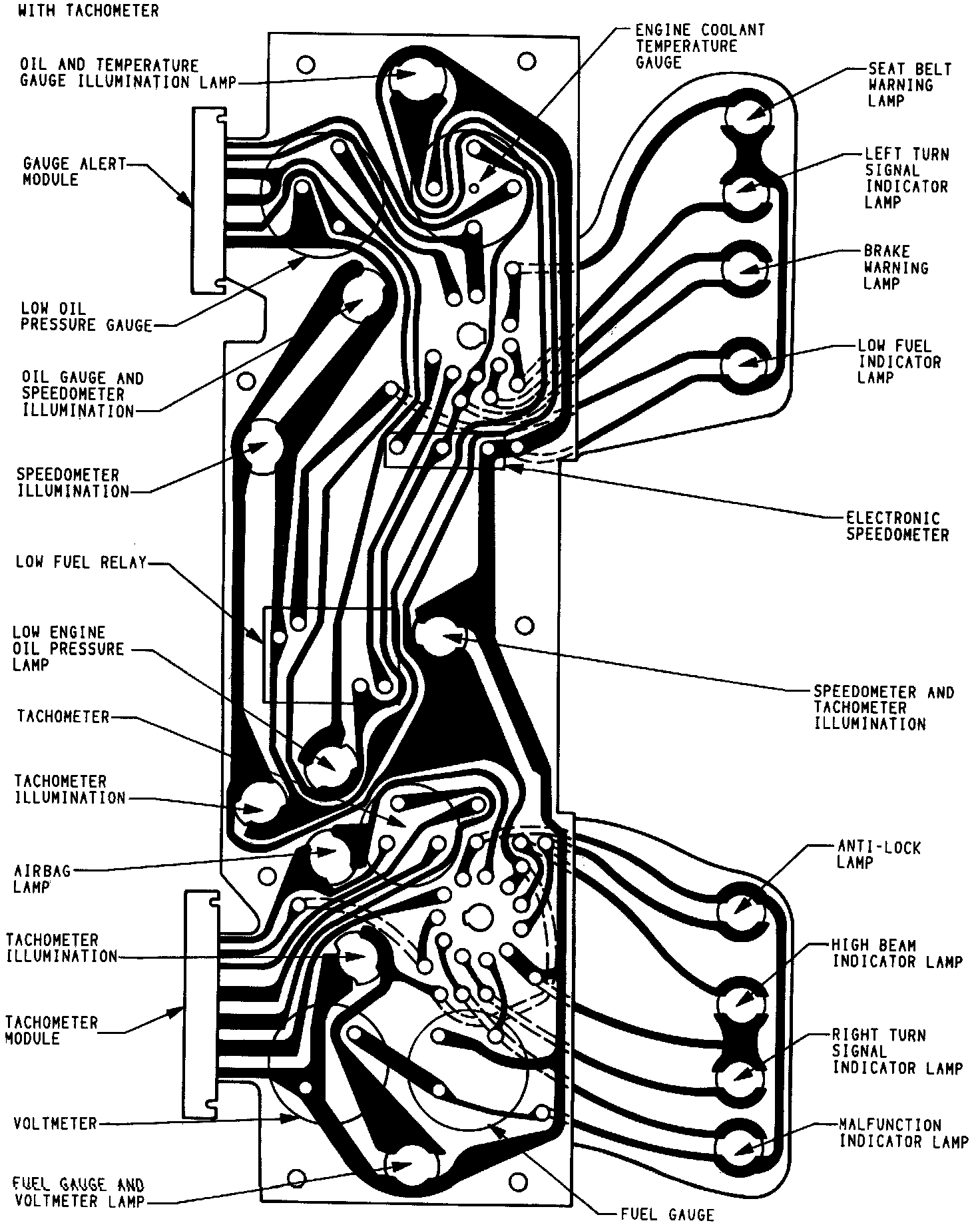

Cluster Printed Circuit Board:
