Home >> Plymouth >> 1994 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Part 5 of 5

Part 5 of 5

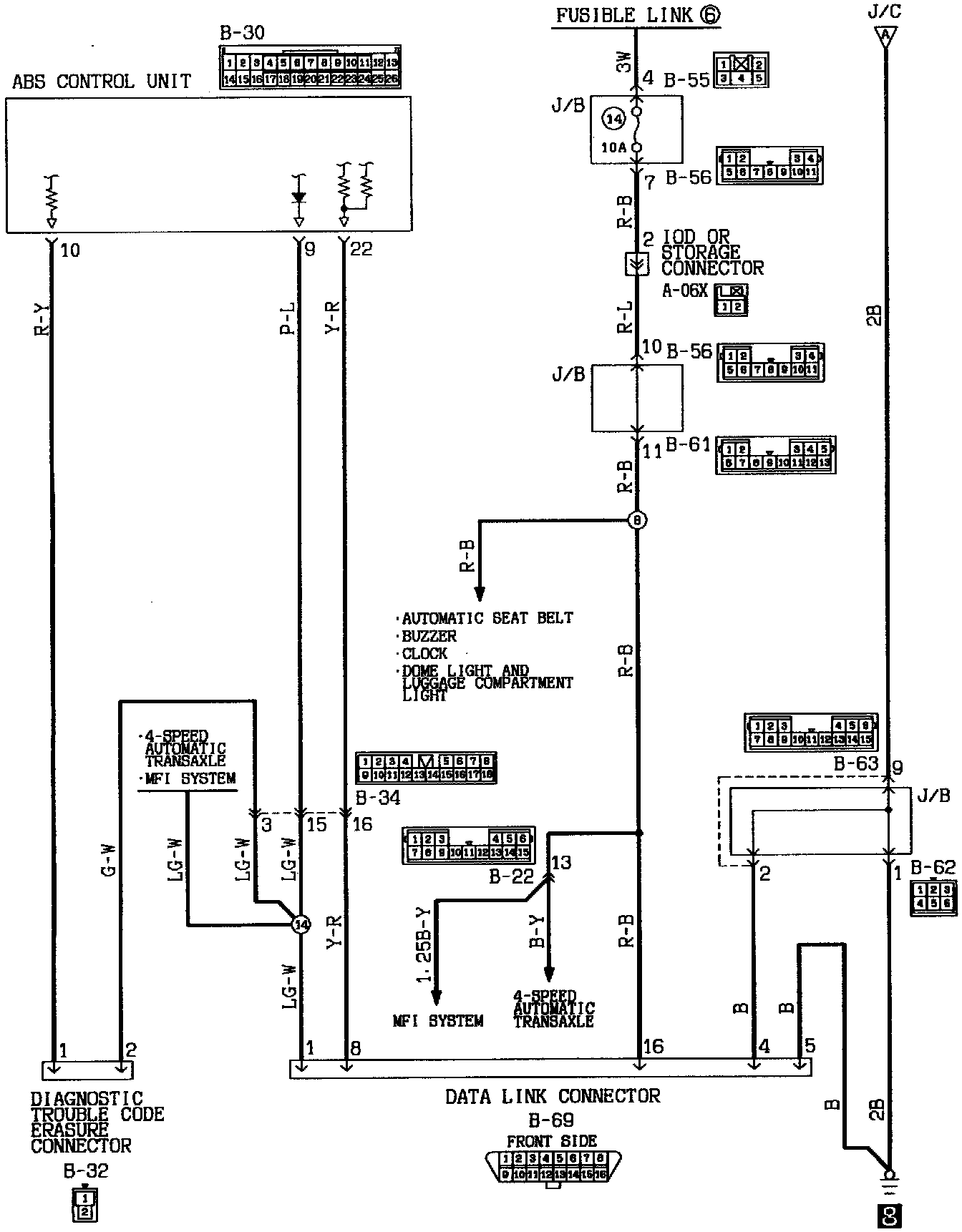

Anti-Lock Braking System Circuit (Part 5 Of 5):
