Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1994
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
Canada
Canada

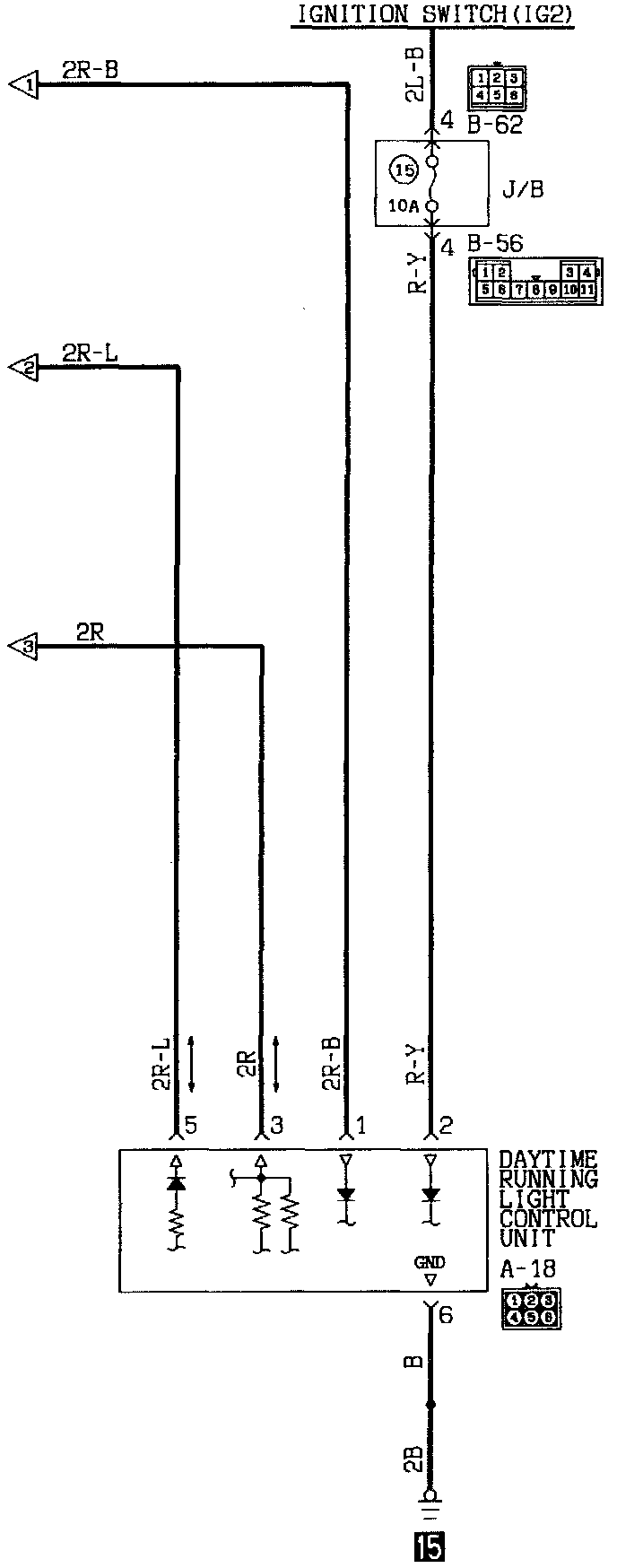

Headlight Circuit Diagram <Vehicles For CANADA> (Part 1 Of 2):

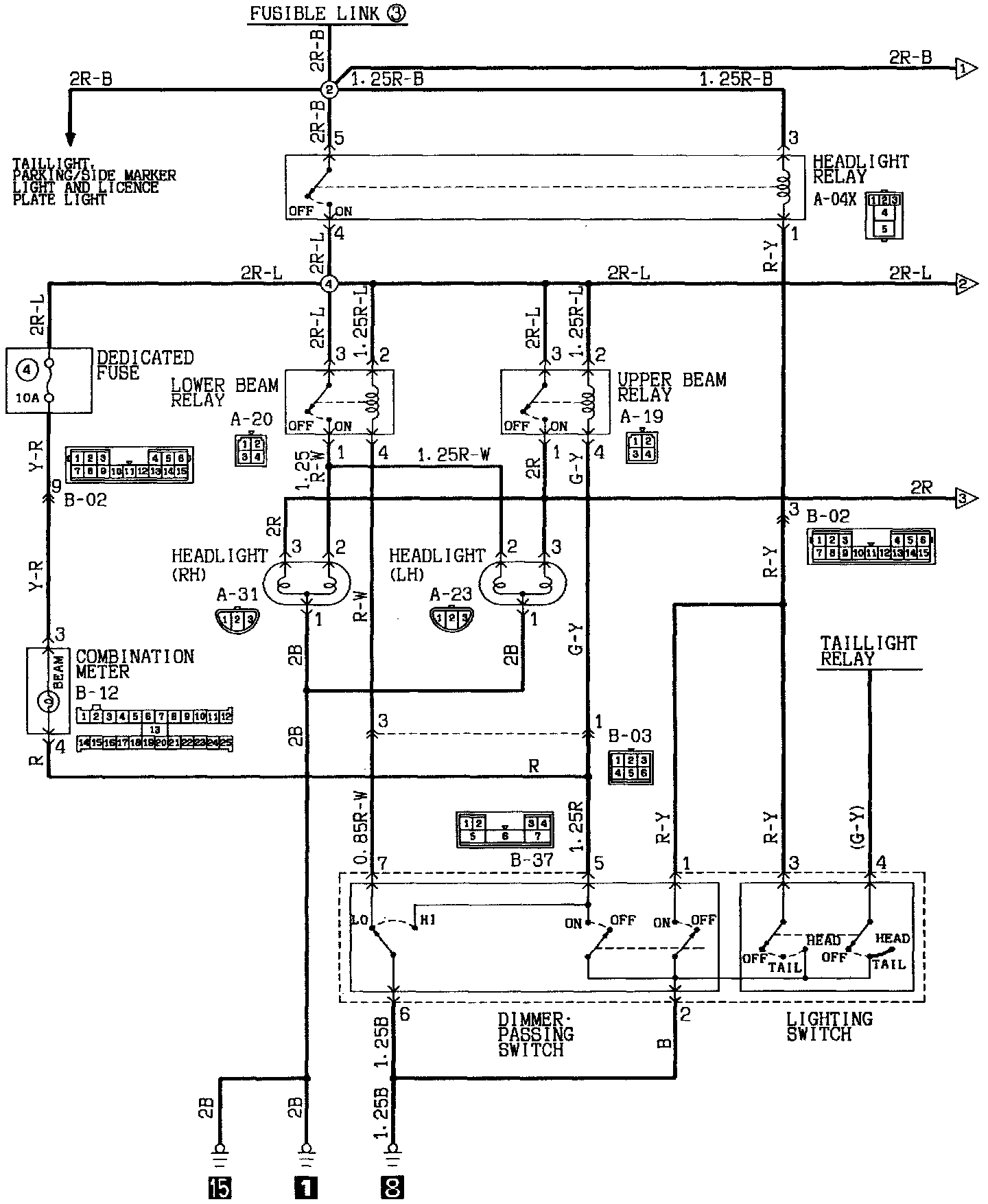

Headlight Circuit Diagram <Vehicles For CANADA> (Part 2 Of 2):
