Home >> Plymouth >> 1994 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Key Reminder Switch >> For U.S.

For U.S.

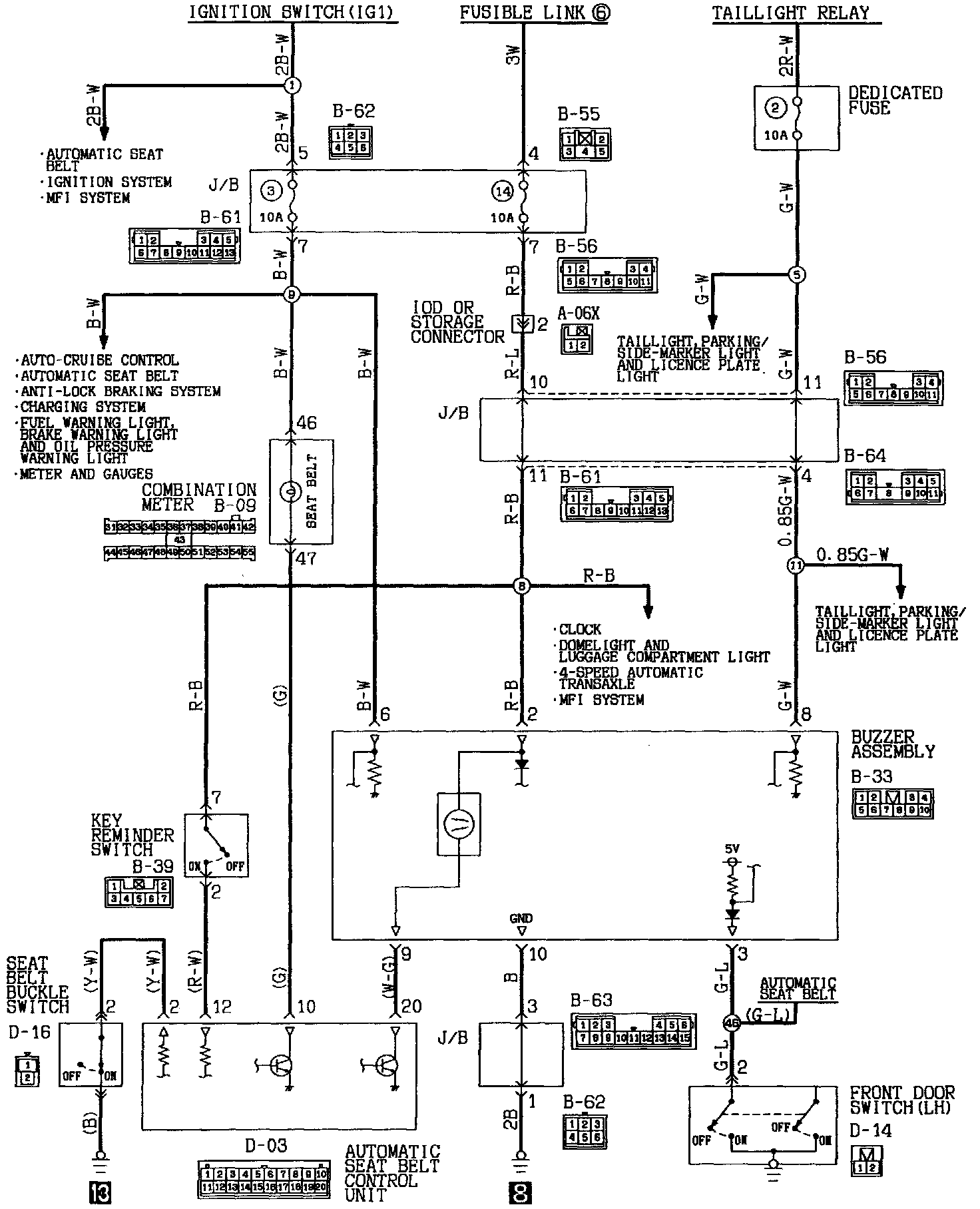

Buzzer Circuit <Vehicles For U.S.>:
