Home >> Plymouth >> 1994 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Seat Belt Reminder Buzzer >> For CANADA

For CANADA

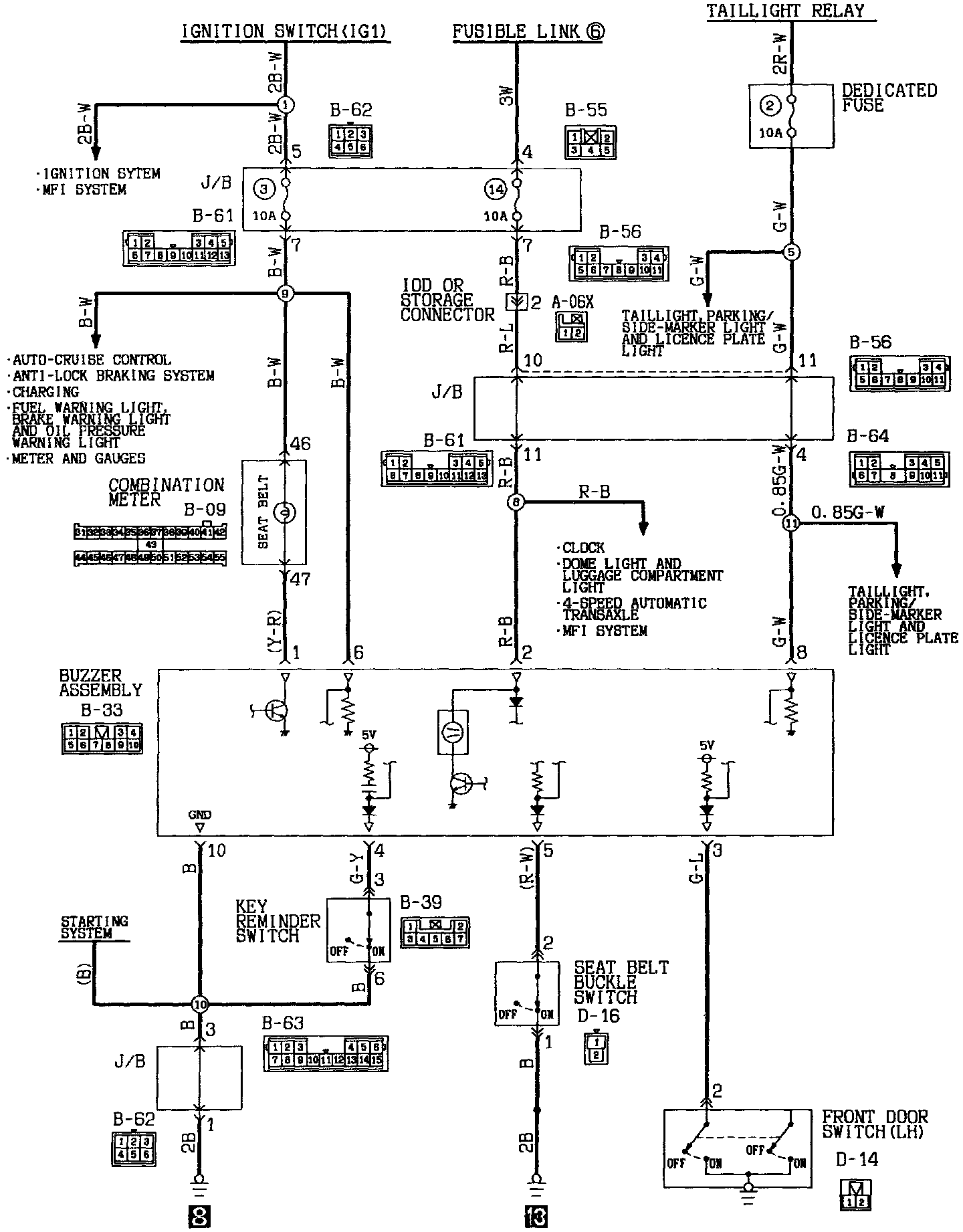

Buzzer Circuit <Vehicles For CANADA>:
