Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1994
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Intermittent Wiper
With Intermittent Wiper

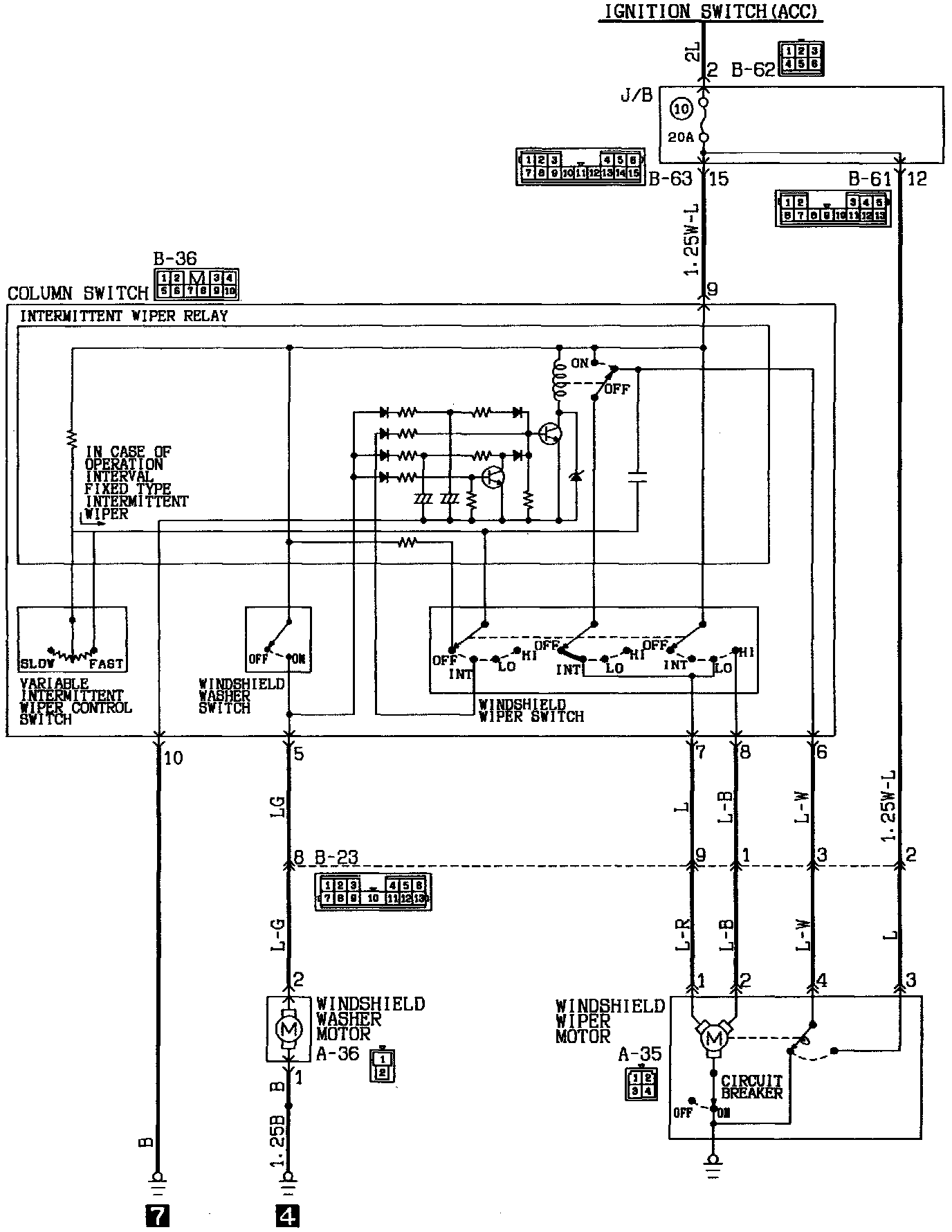

Windshield Wiper And Washer Circuit Diagram <Vehicles With Intermittent Wiper>:
