Home >> Plymouth >> 1994 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

Air Bag Systems: Locations

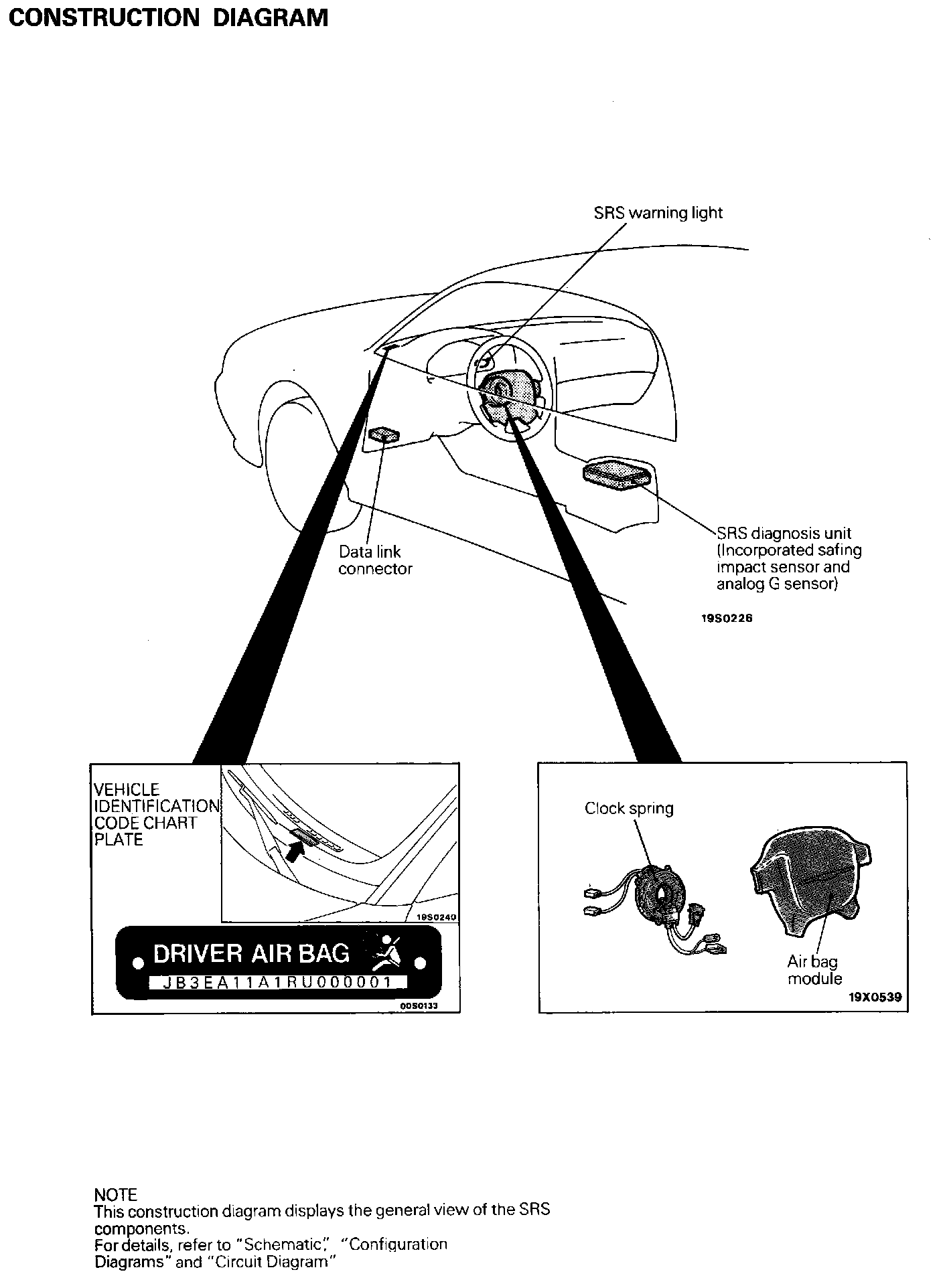

Construction Diagram:

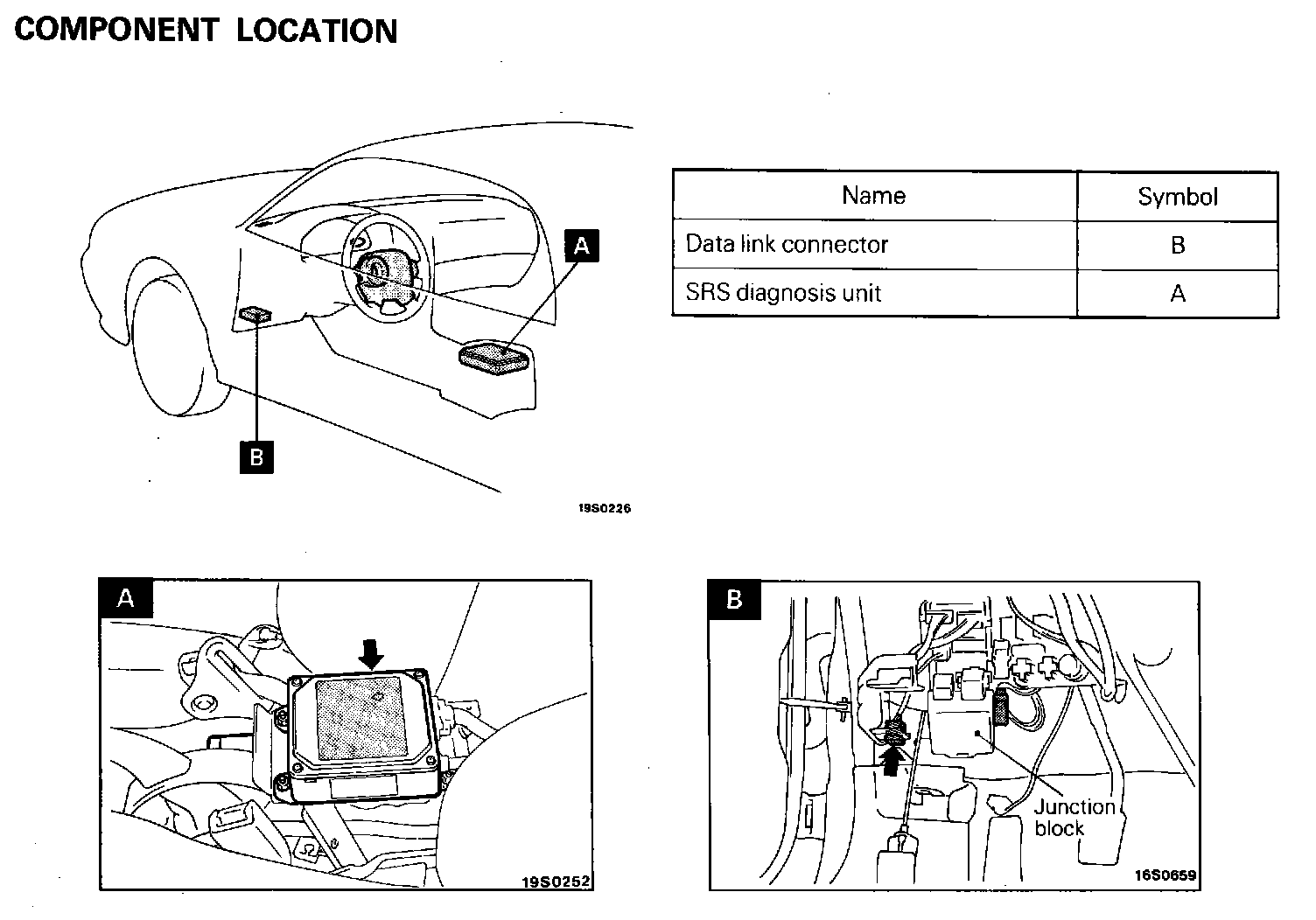

Component Location:

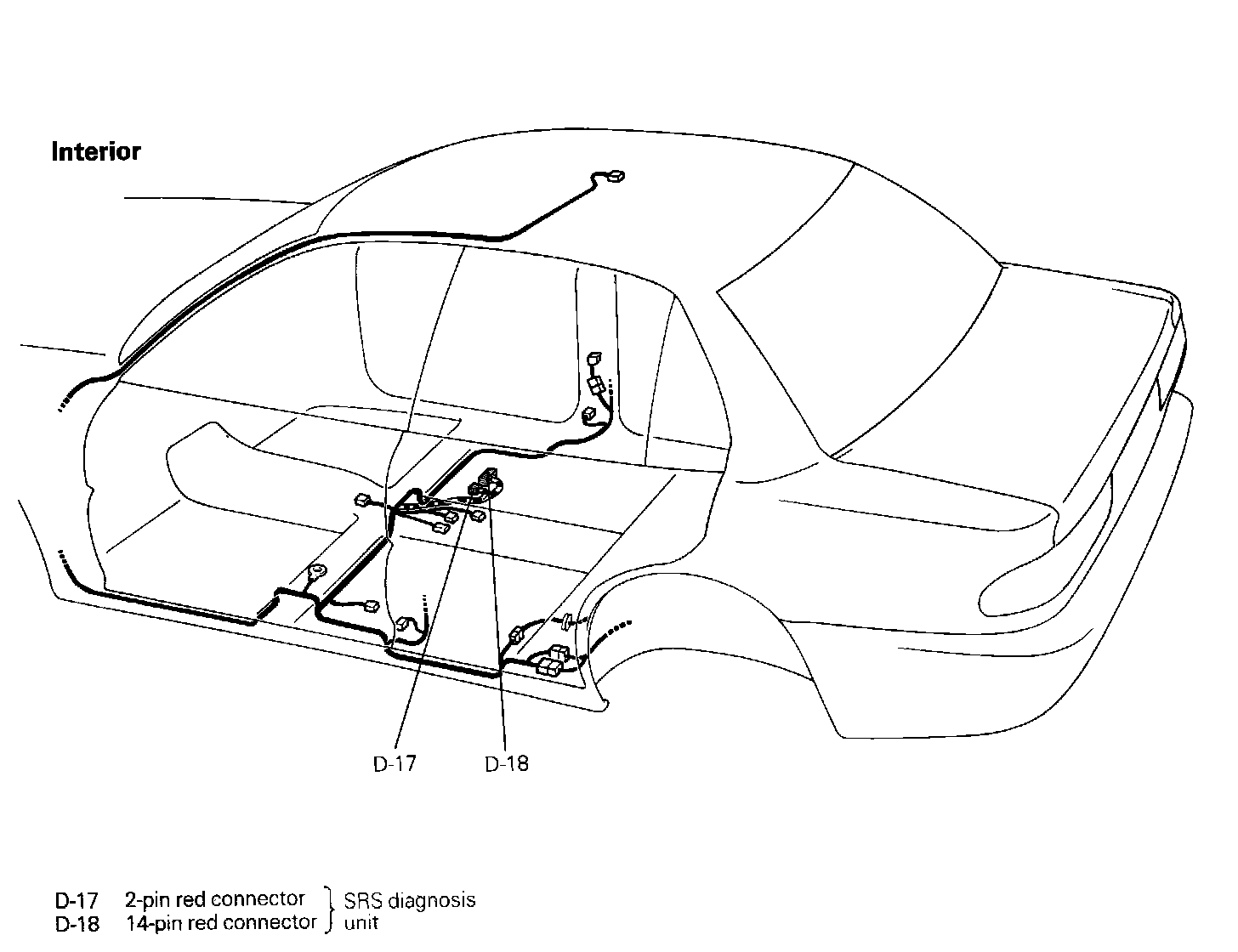

Interior:
