Home >> Plymouth >> 1995 >> Acclaim L4-153 2.5L SOHC Flex Fuel >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 41 Thru 60 >> 58

41 Thru 60: 58

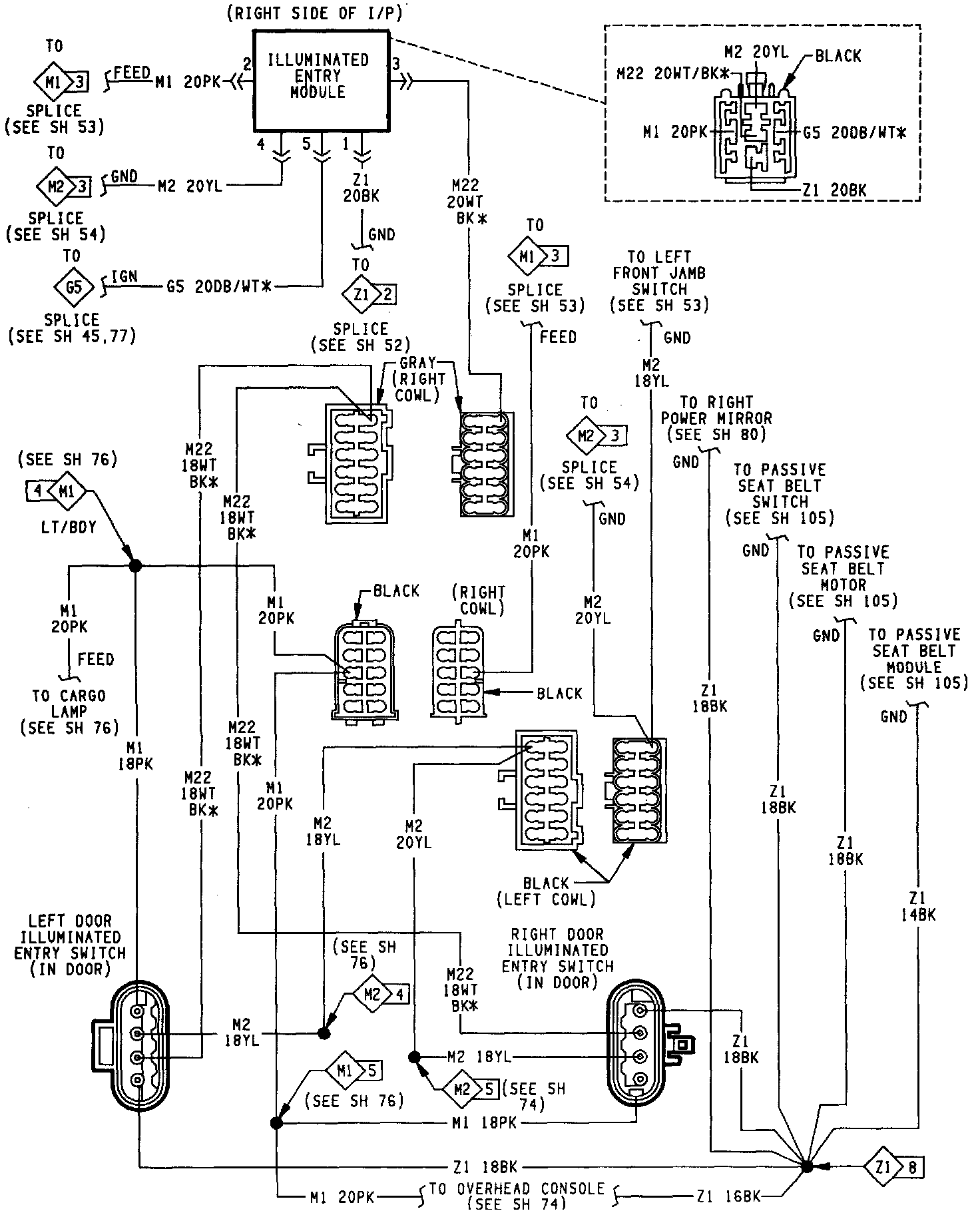

Illuminated Entry:
