81 Thru 100: 92

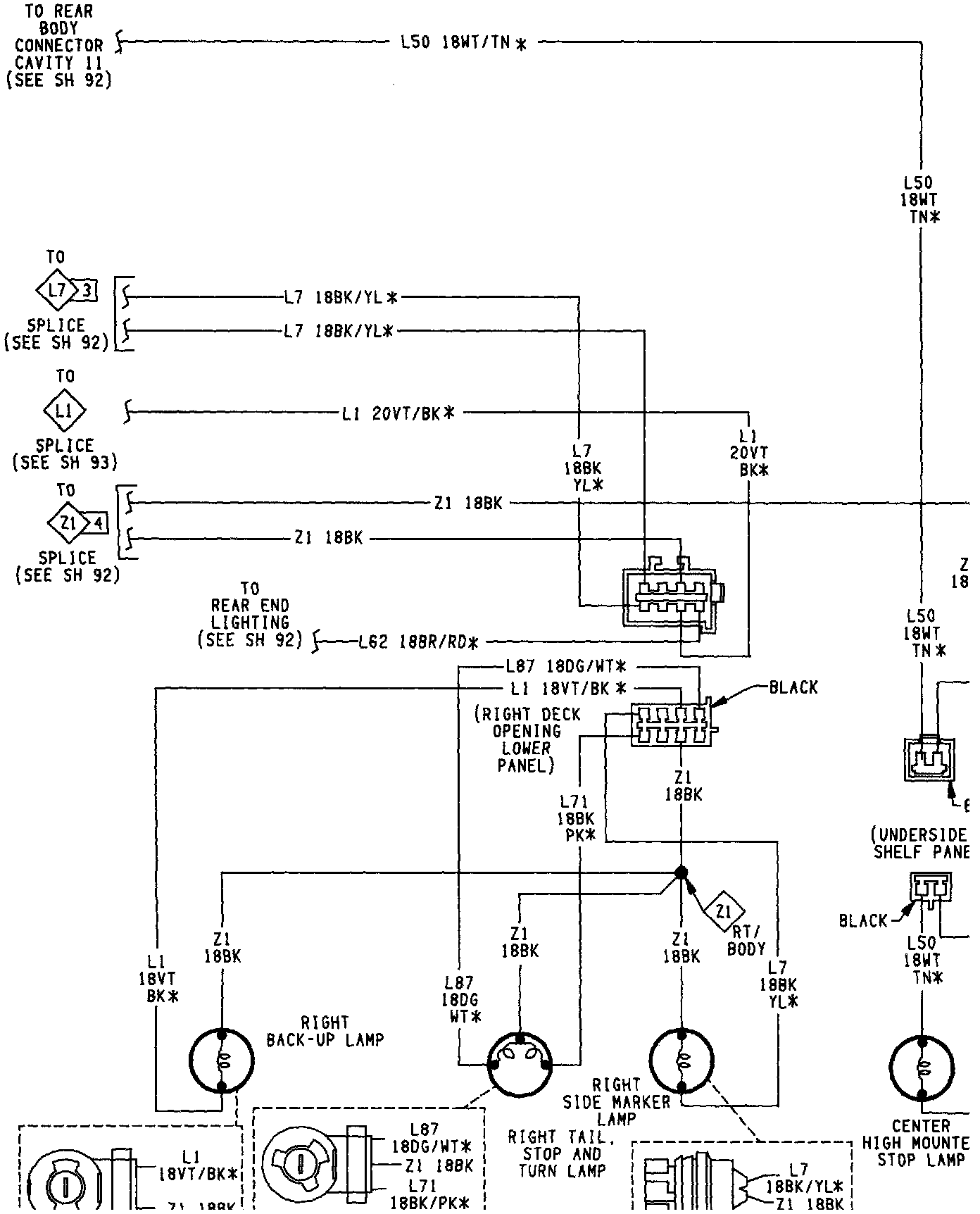

Rear End Lighting Without Lamp Outage:

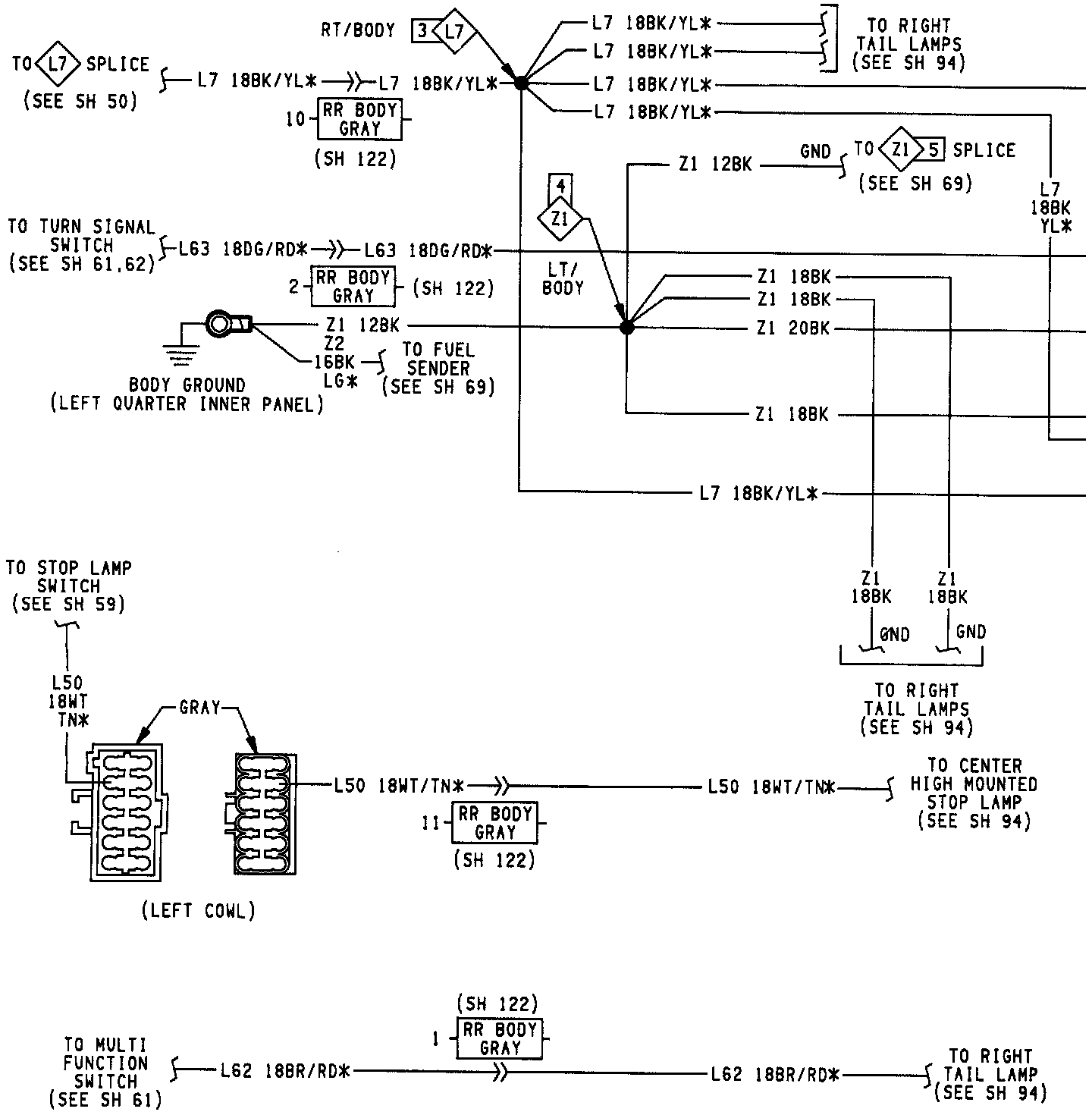

Rear End Lighting Without Lamp Outage:

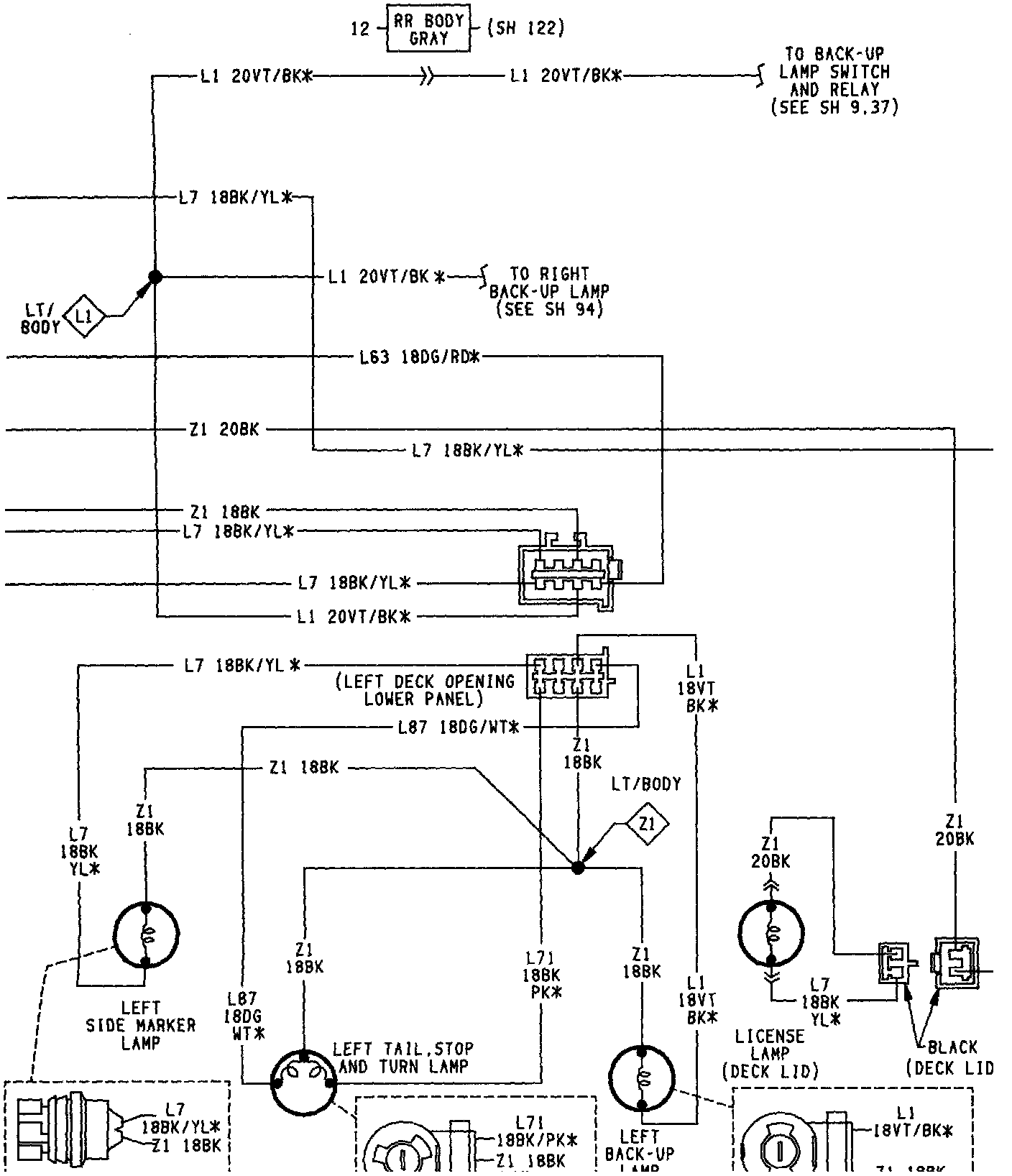

Rear End Lighting Without Lamp Outage:
