Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1995
>>
Acclaim L4-153 2.5L SOHC Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
81 Thru 100
>>
95
81 Thru 100: 95

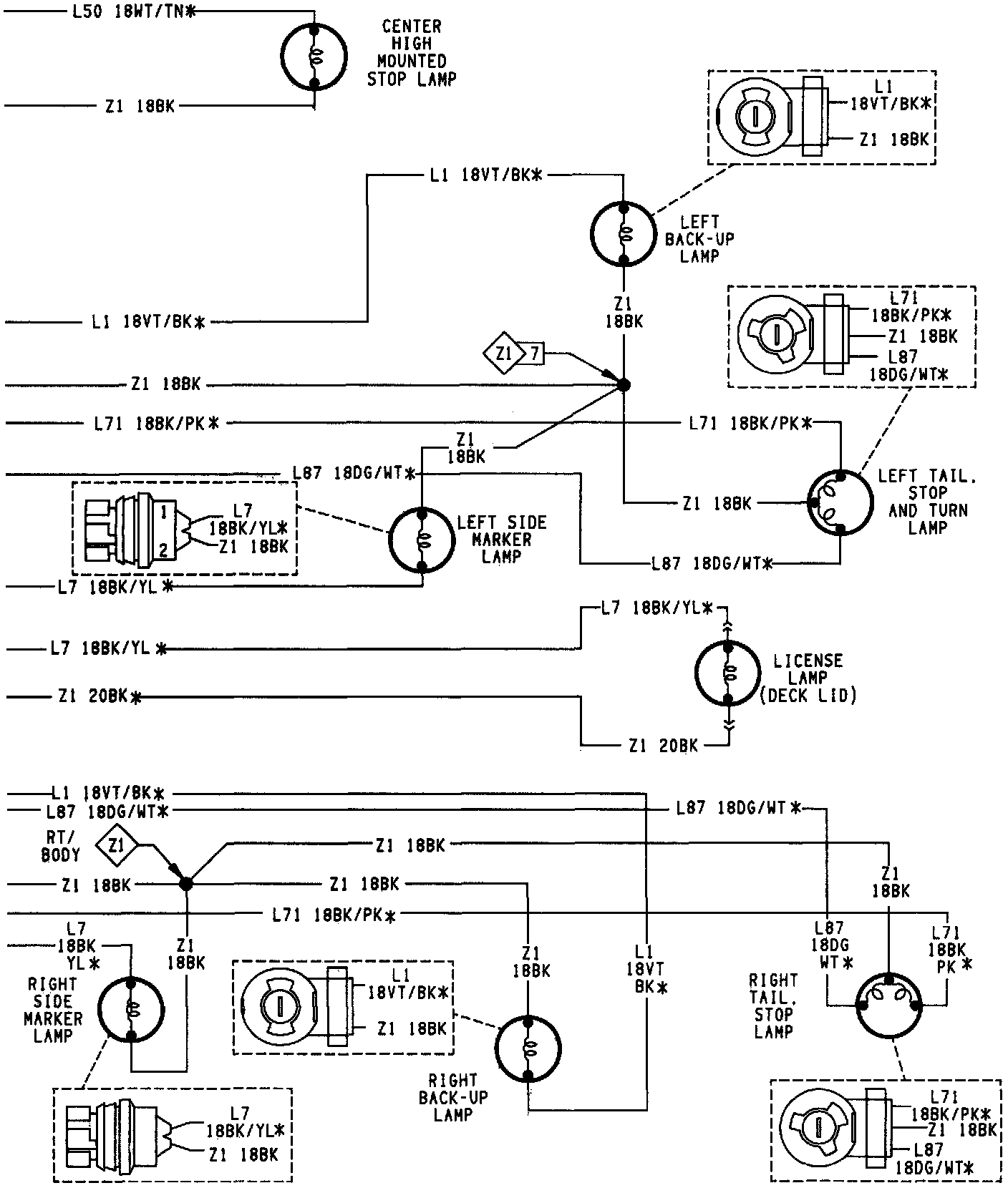

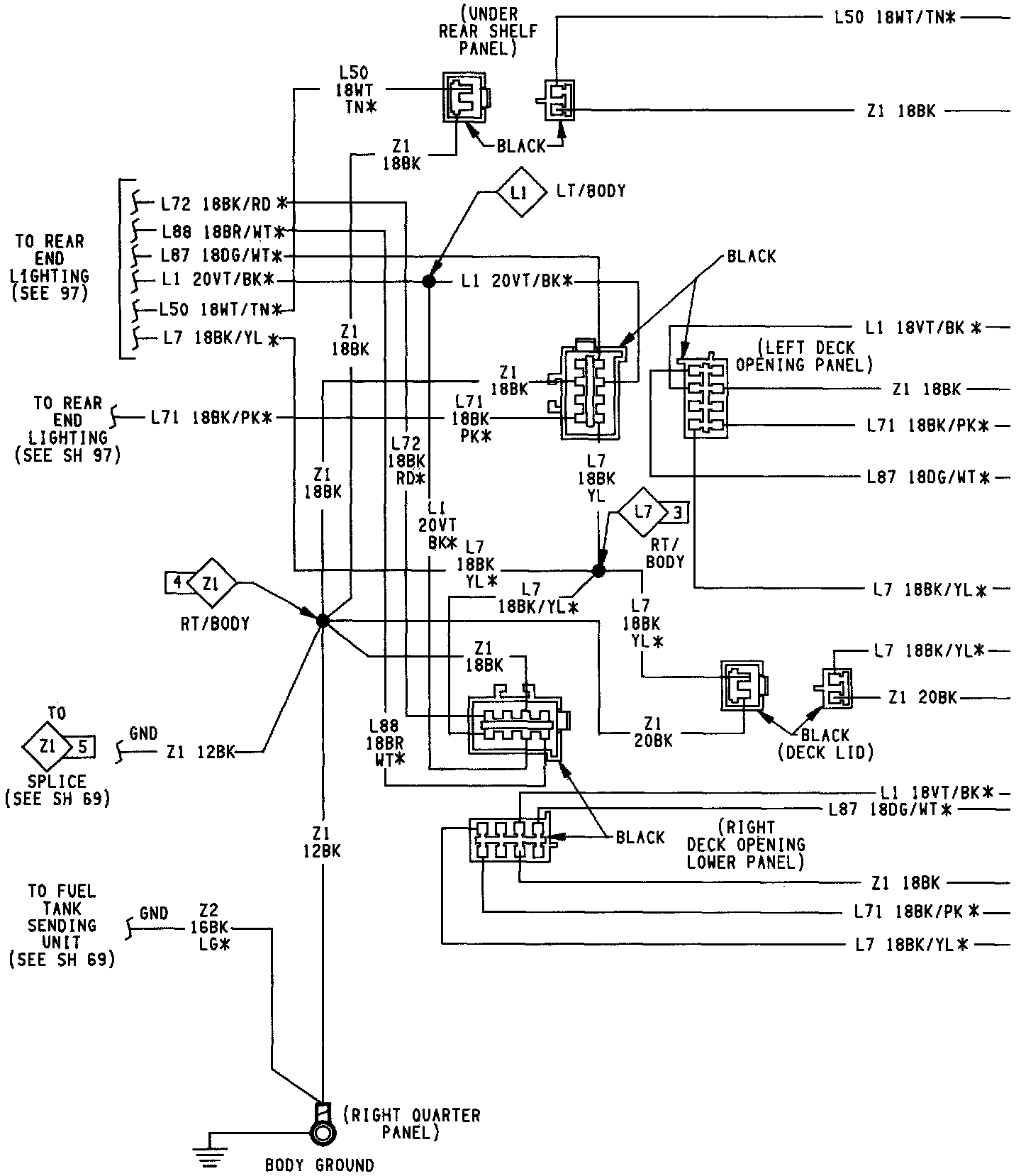

Rear End Lighting With Lamp Outage:
Rear End Lighting With Lamp Outage:
Rear End Lighting With Lamp Outage:
