Without Name Brand Speakers

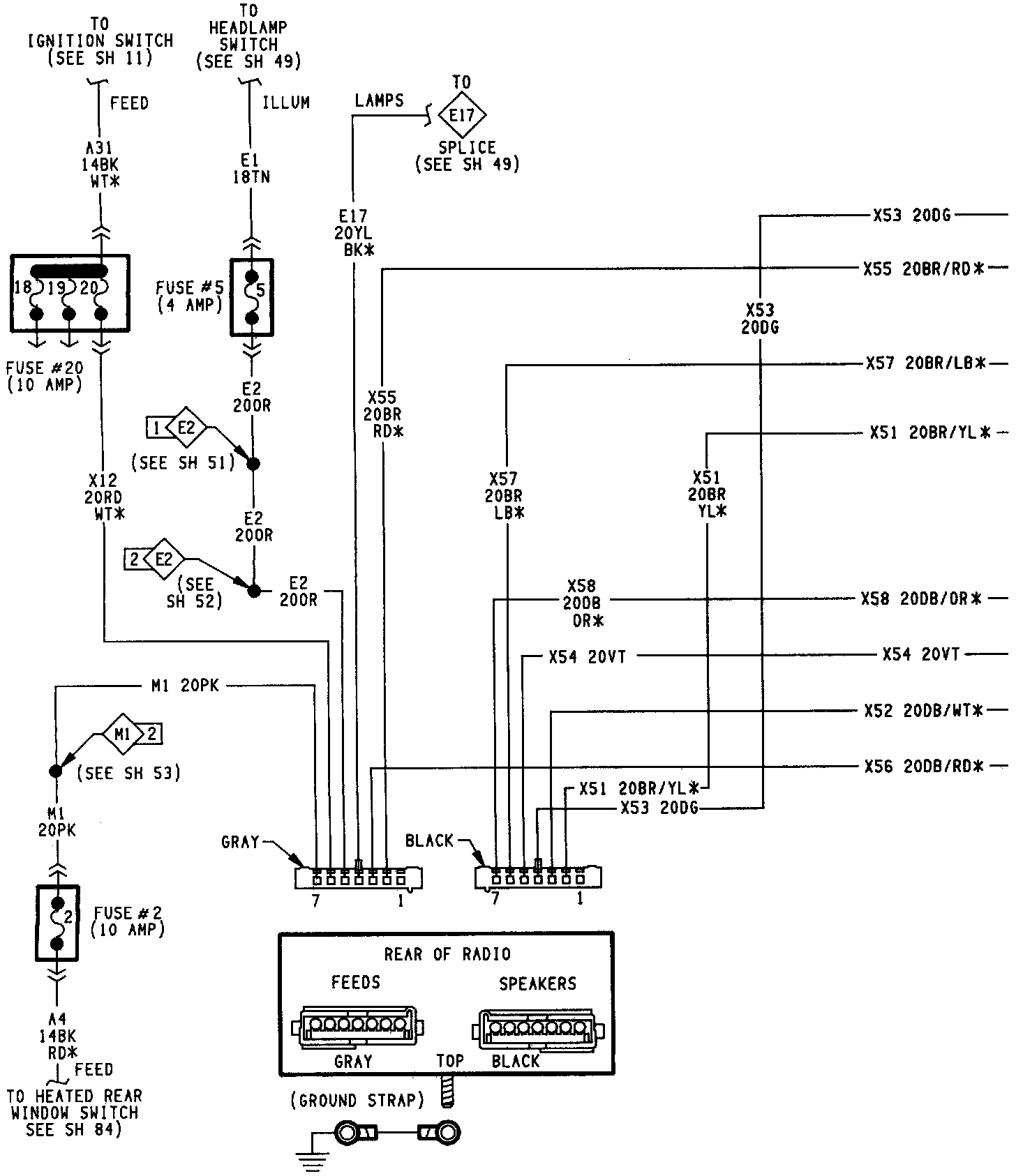

Electronically Tuned Stereo Radio Without Name Brand Speakers:

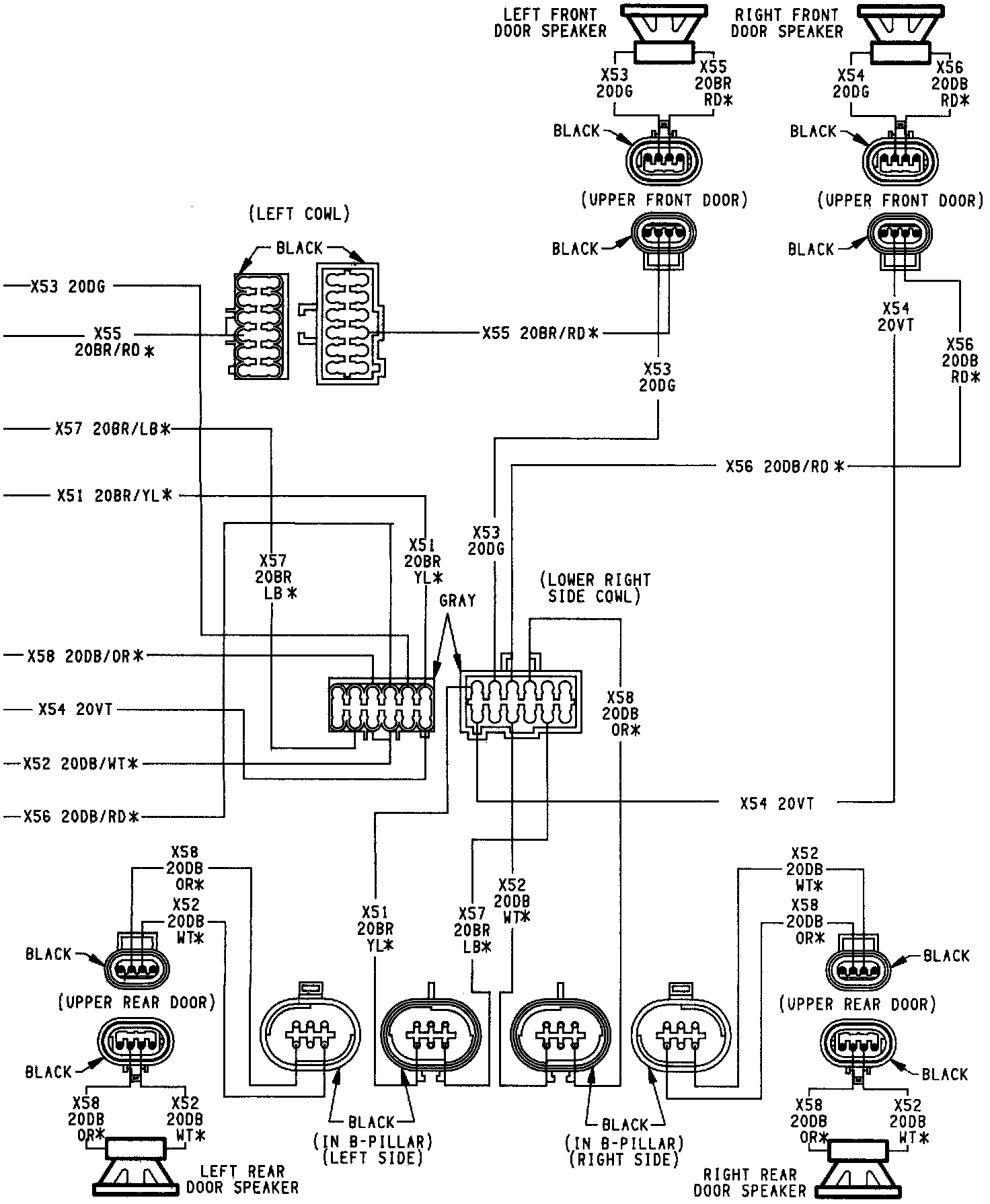

Front & Rear Door Speakers Without Name Brand Speakers:
