Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1995
>>
Acclaim L4-153 2.5L SOHC Flex Fuel
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

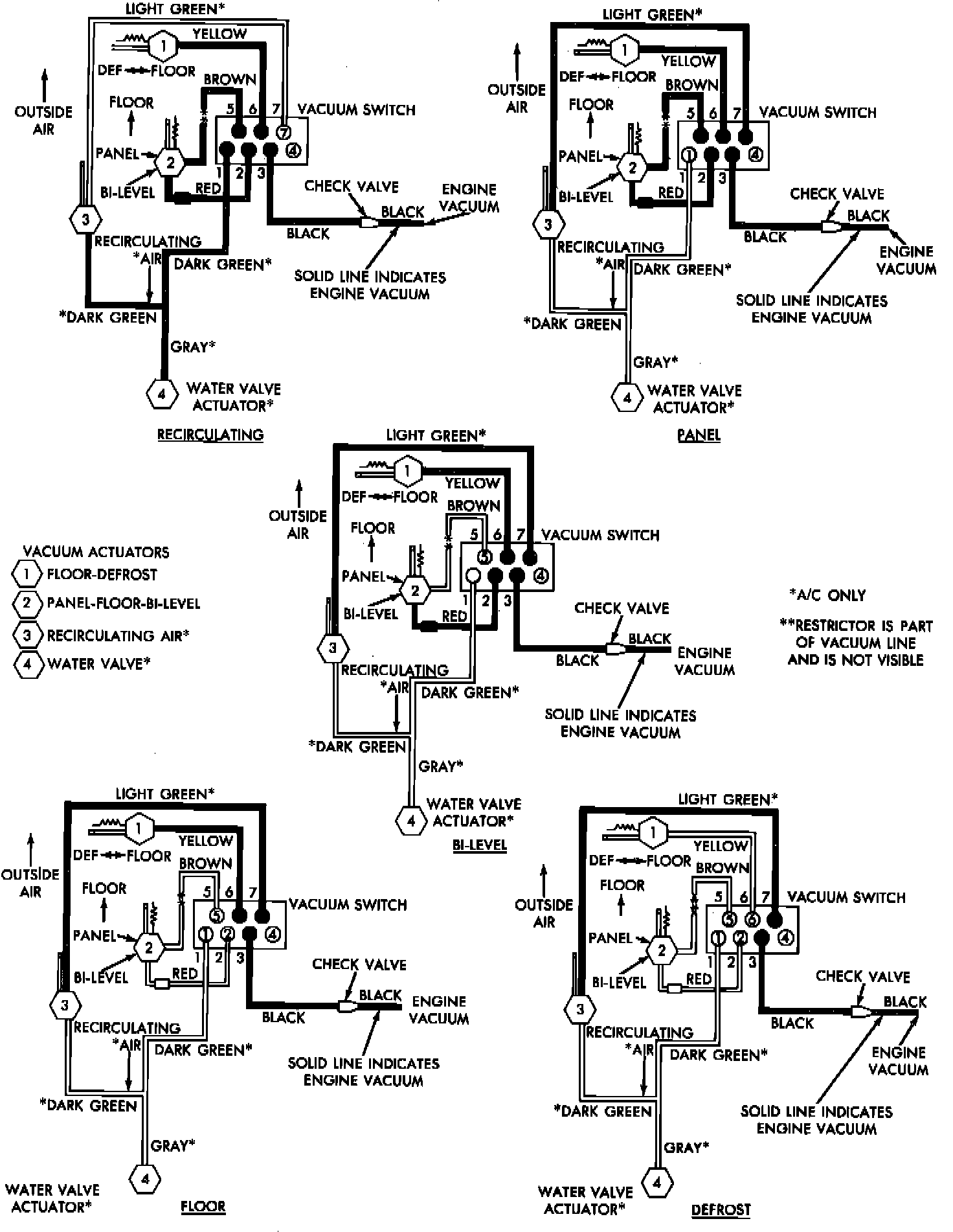

Air Conditioning & Heater Vacuum Hose Routing. Acclaim & Spirit:
