Group 8W-11 Power Distribution
>>
Sheet 8W-11-5
Sheet 8W-11-5

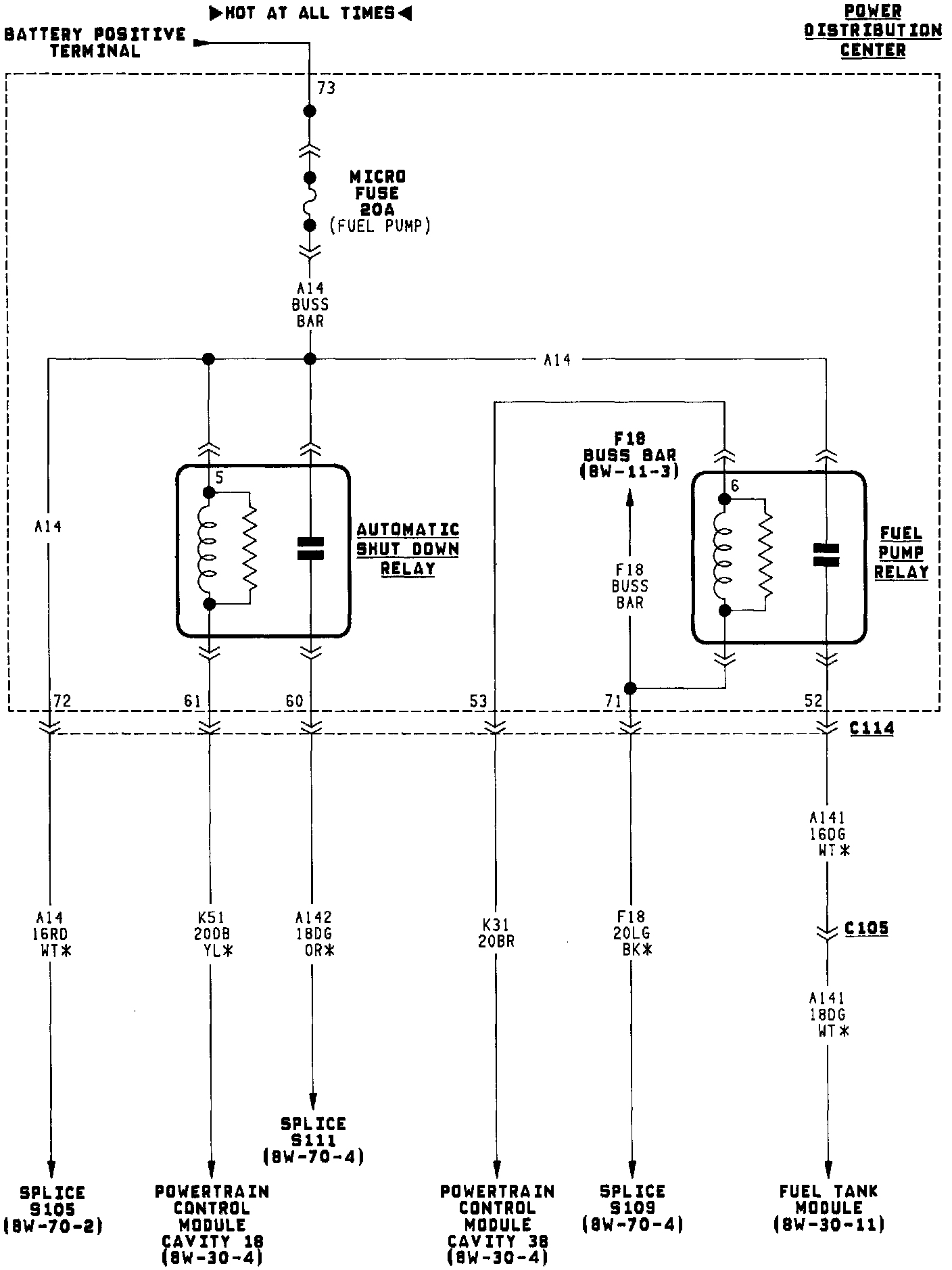

Power Distribution Center (Part 4 Of 4):
