Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1995
>>
Neon L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Group Number
>>
Group 8W-30 Fuel/Ignition System
>>
Sheet 8W-30-11
Sheet 8W-30-11

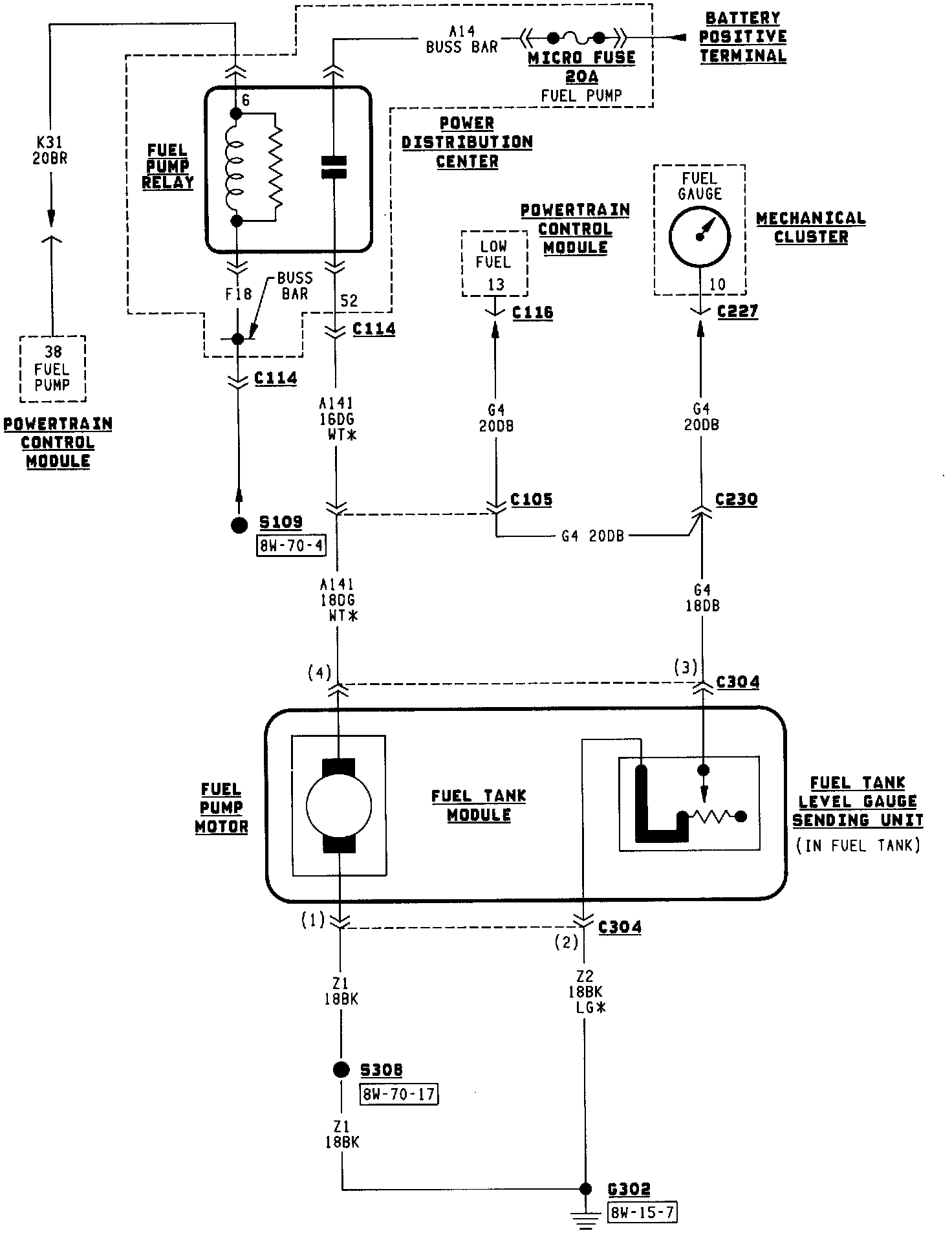

Ignition/Fuel System (Part 11 Of 11):
