Group 8W-30 Fuel/Ignition System
>>
Sheet 8W-30-3
Sheet 8W-30-3

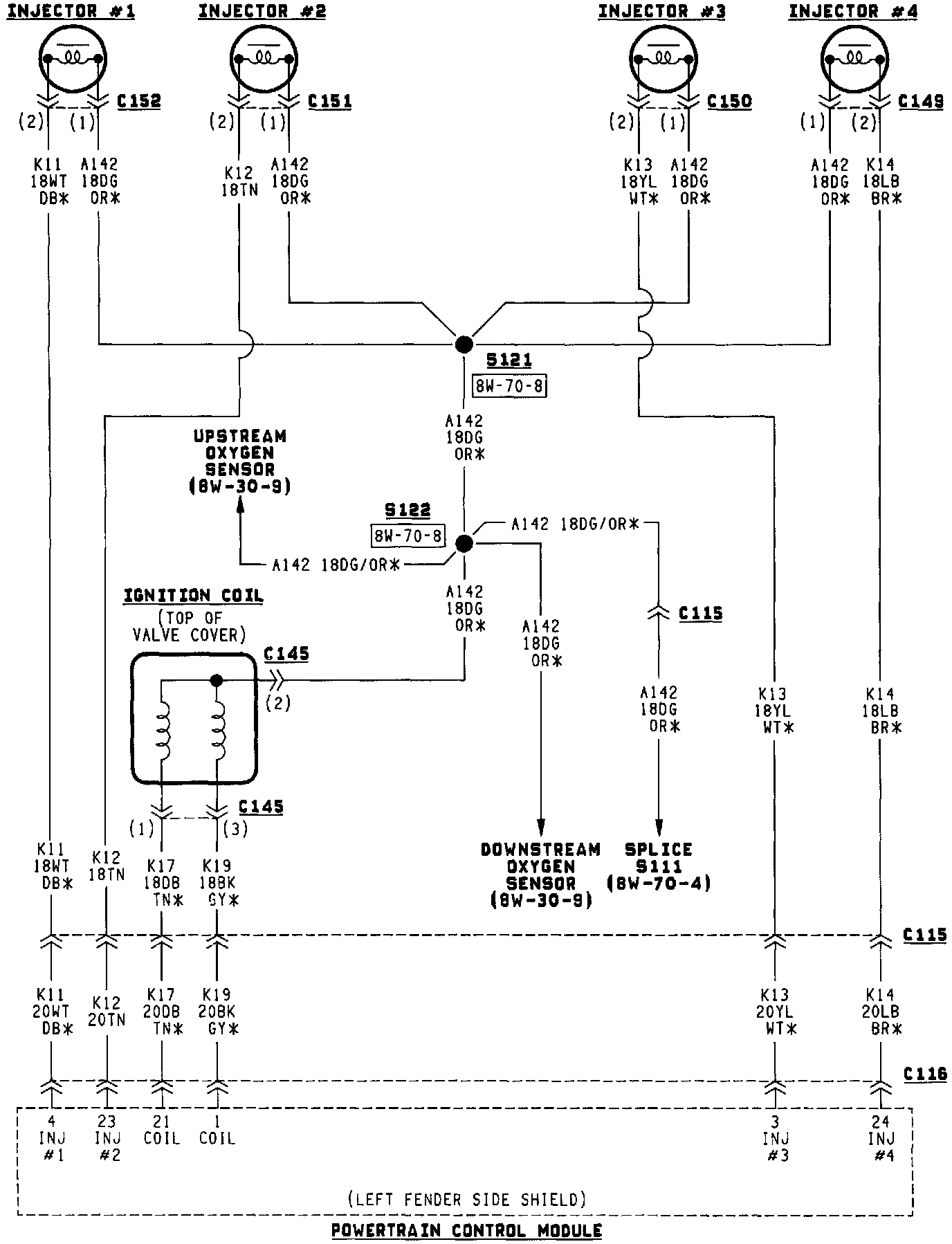

Ignition/Fuel System (Part 3 Of 11):
