Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1995
>>
Neon L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Group Number
>>
Group 8W-52 Turn Signals
Group 8W-52 Turn Signals

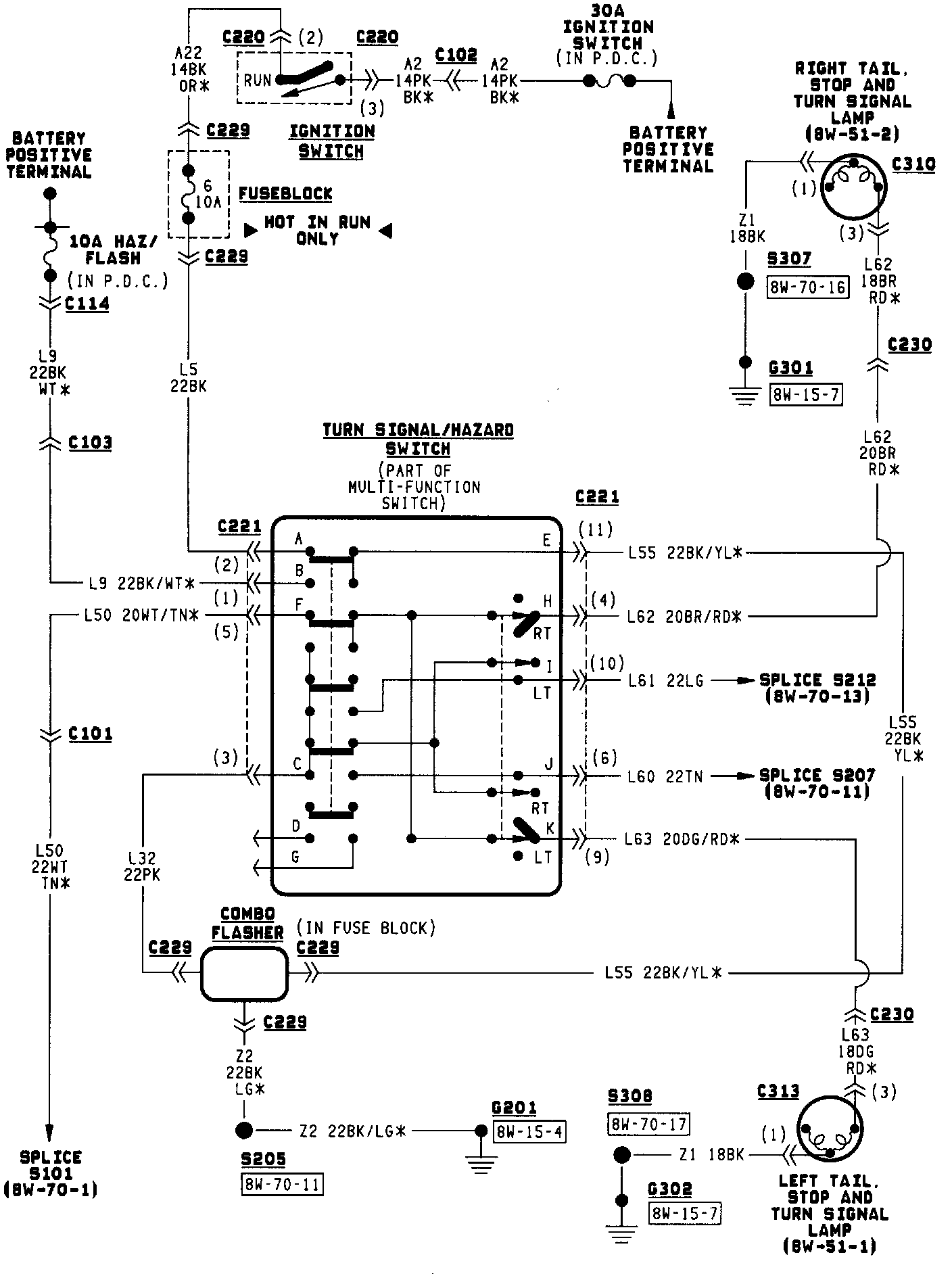

Turn Signals System:
