Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1997
>>
Prowler V6-3.5L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

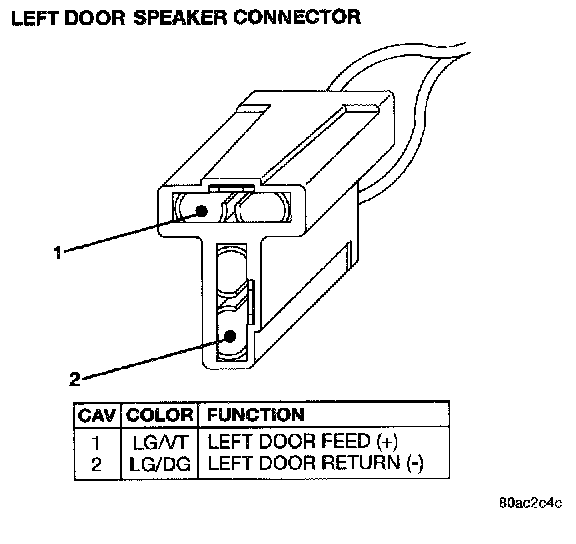

Left Door Speaker:

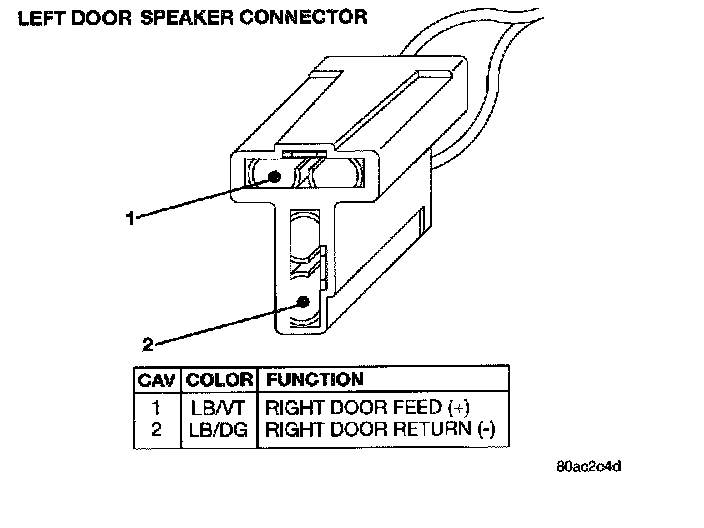

Right Door Speaker:

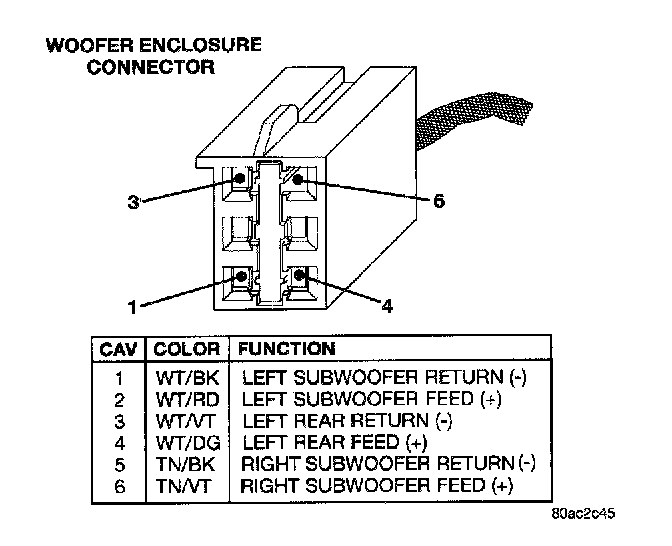

Woofer Enclosure Connector:

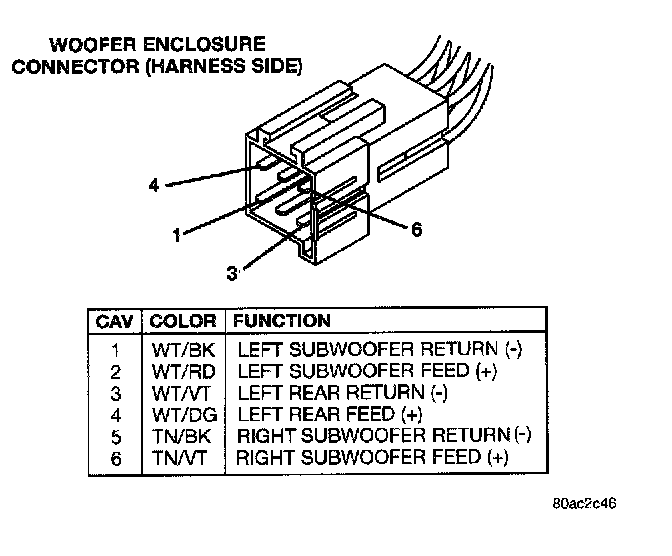

Woofer Enclosure Connector -- Harness Side:

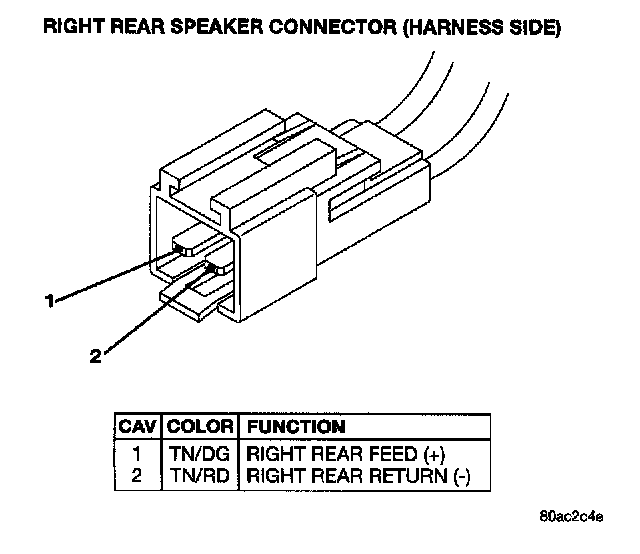

Right Rear Speaker -- Harness Side:

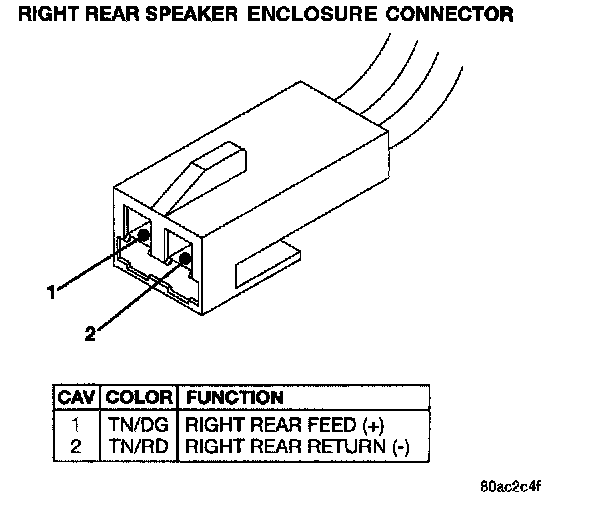

Right Rear Speaker:
