Diesel Data
: Automotive Repair
Home
>>
Plymouth
>>
1997
>>
Prowler V6-3.5L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Group Number
>>
Group 8W-40 Instrument Cluster
>>
Sheet 8W-40-3
Sheet 8W-40-3

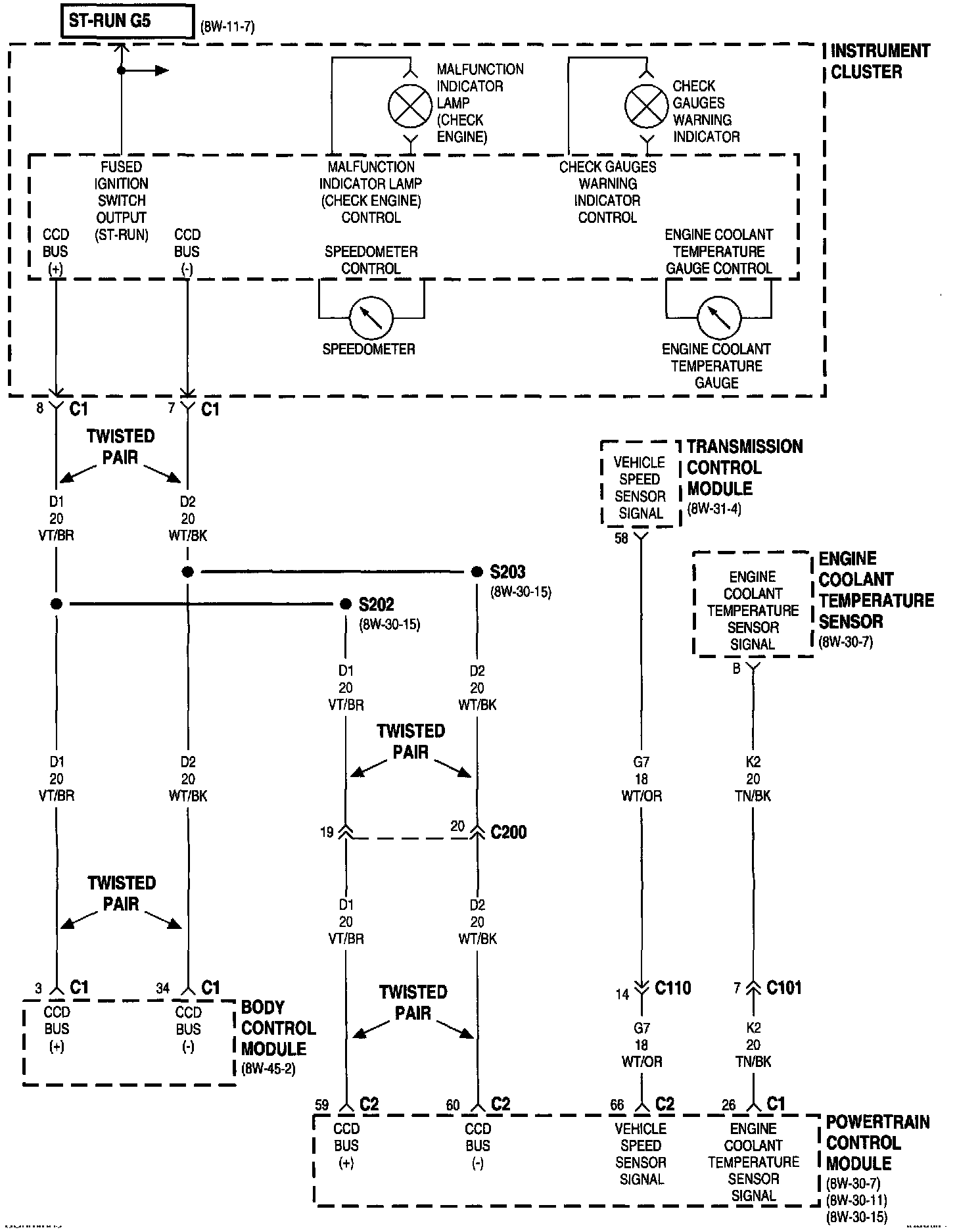

Instrument Cluster (Part 2 Of 9):
