Prowler V6-3.5L VIN F
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Low Tire Pressure Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

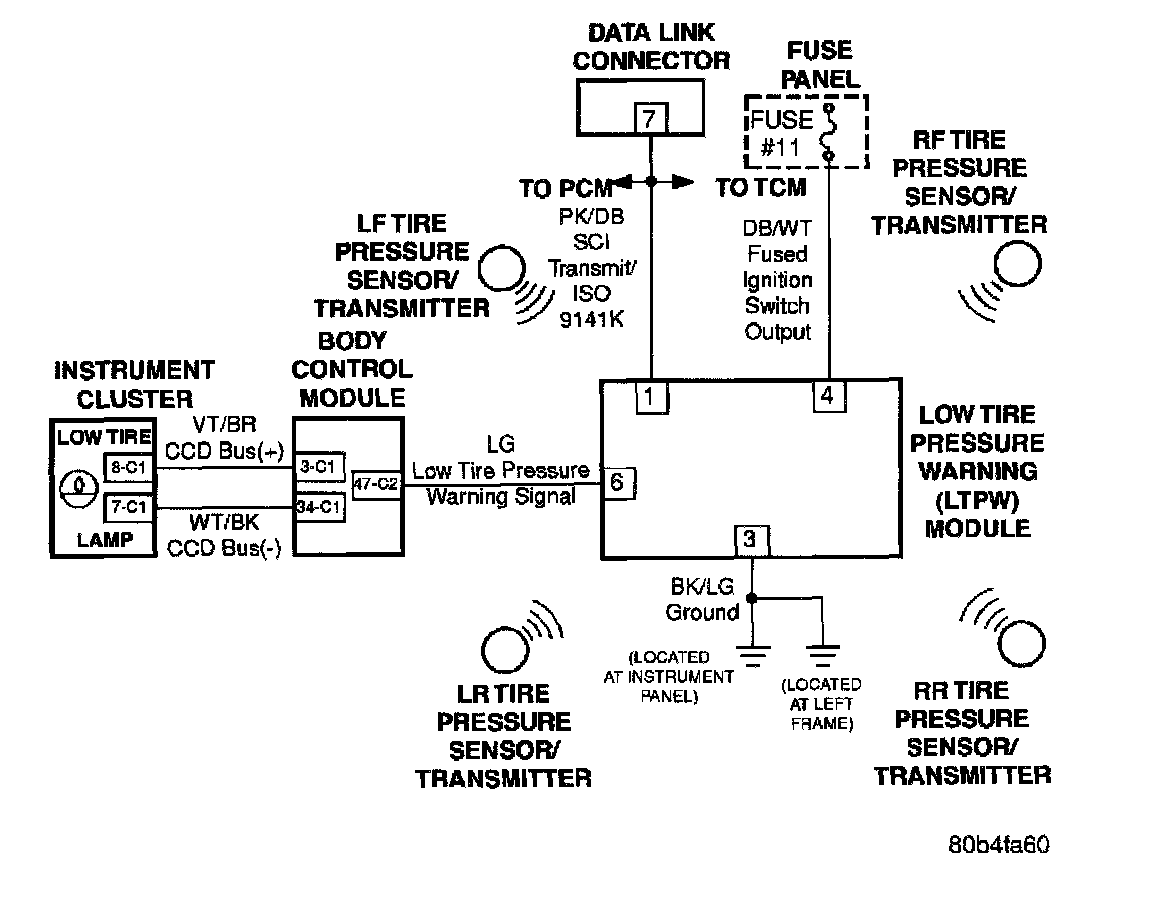

Low Tire Pressure Warning System:
