Rear

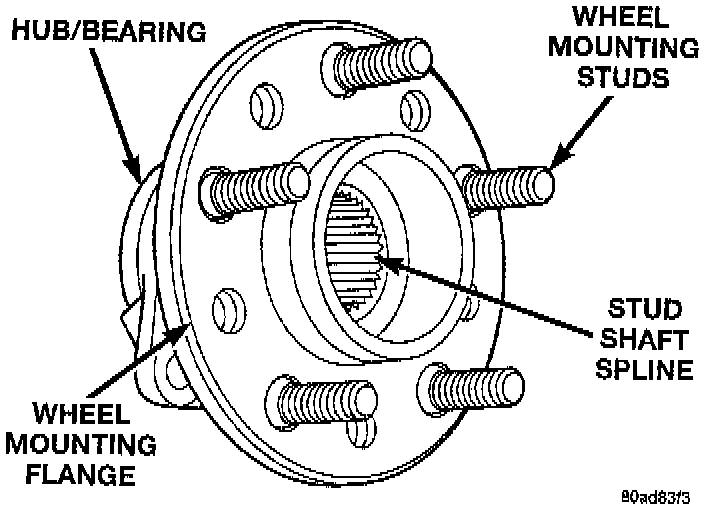

The hub/bearing used on the rear of this vehicle can only he serviced as a complete unit. No attempt should ever be made to disassemble a rear hub/bearing unit in an effort to repair it or replace the bearing or the hub as a separate part of the unit.

The hub/bearing is attached to the rear knuckle using 3 mounting bolts. The hub/bearing mounting bolts are removable from the back side of the rear knuckle.
