Home >> Plymouth >> 1998 >> Neon L4-122 2.0L DOHC VIN Y SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-35 Antilock Brakes >> Sheet 8W-35-2

Sheet 8W-35-2

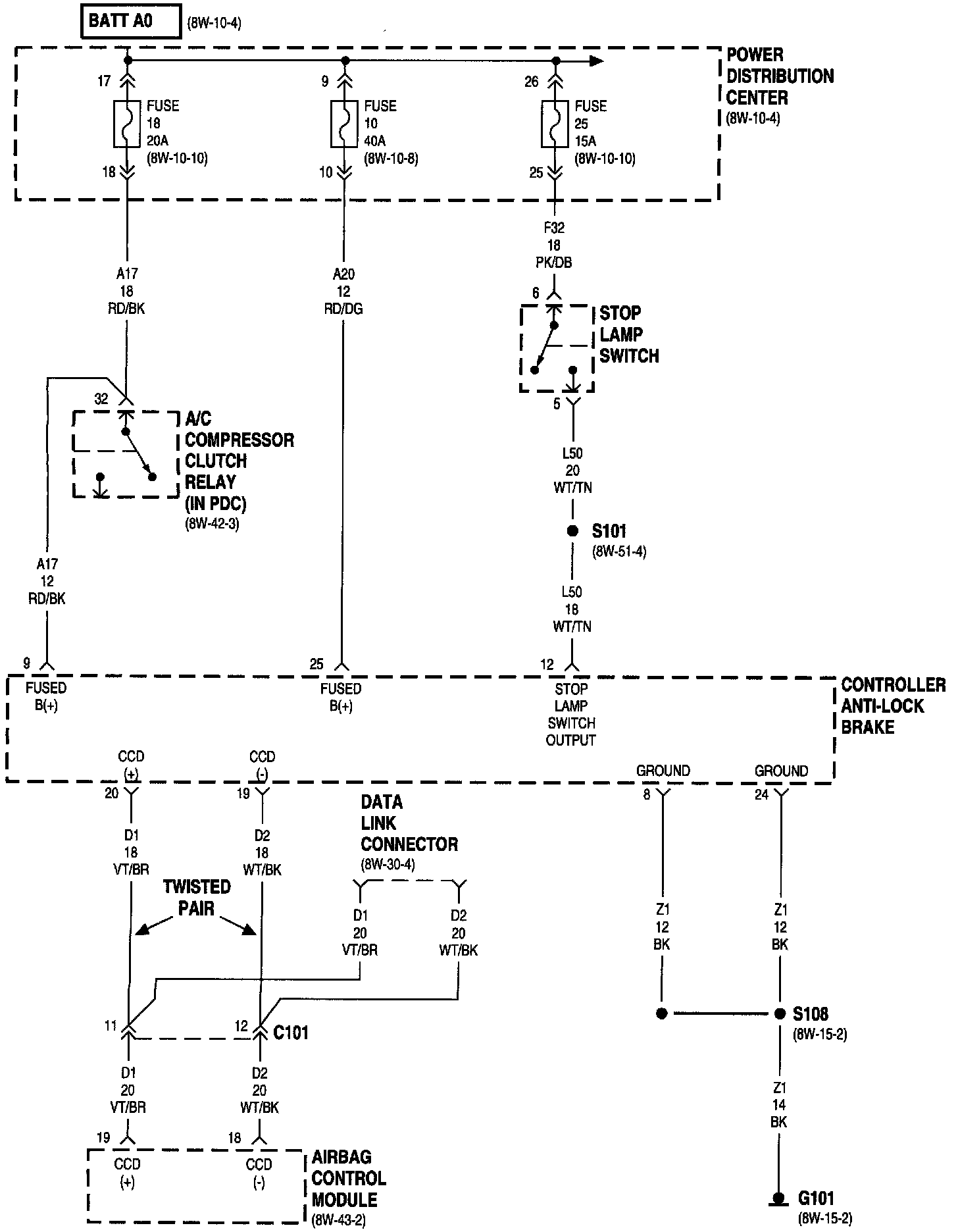

Anti-Lock Brakes (Part 1 Of 3):
