Home
>>
Plymouth
>>
1998
>>
Neon L4-122 2.0L DOHC VIN Y SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Group Number
>>
Group 8W-35 Antilock Brakes
>>
Sheet 8W-35-4
Sheet 8W-35-4

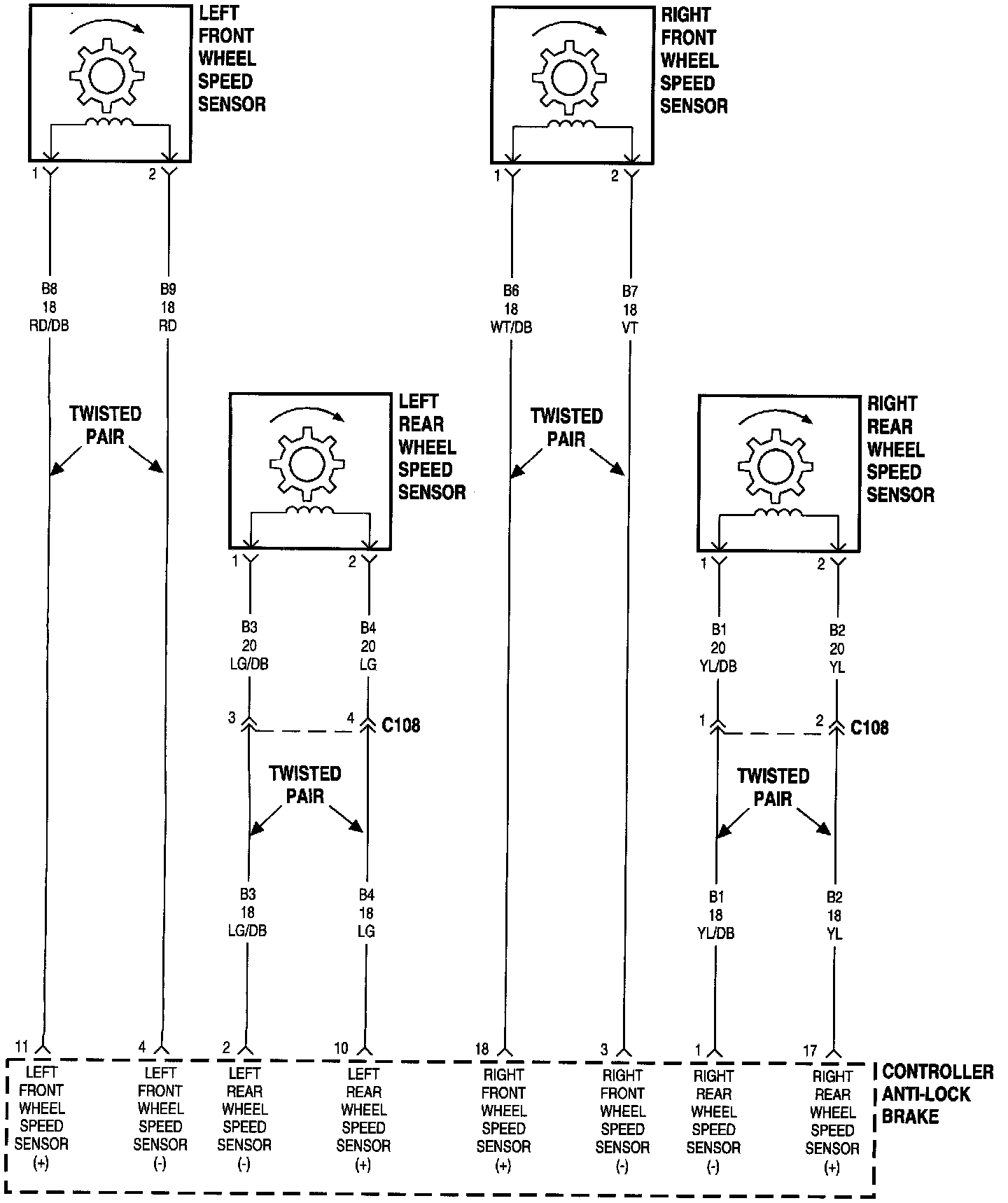

Anti-Lock Brakes (Part 3 Of 3):
