Home >> Pontiac >> 2004 >> Vibe AWD L4-1.8L VIN 8 >> Repair and Diagnosis >> Locations >> Harness Locations >> Engine Compartment Views >> Engine Compartment Ground and Inline Connector Locations

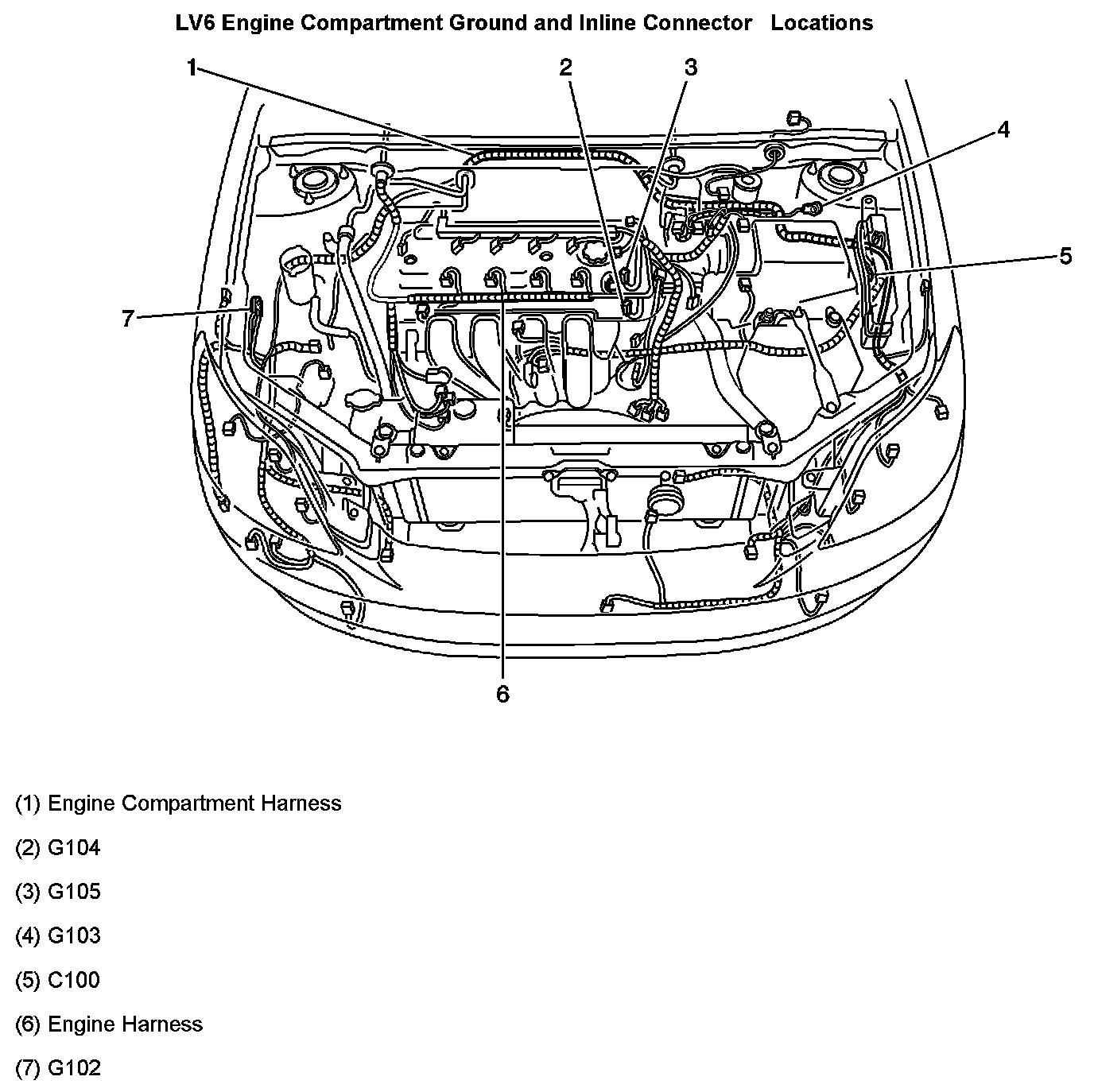

Engine Compartment Ground and Inline Connector Locations

Engine Compartment Ground And Inline Connector Locations:
