Sunroof Window Replacement - Front

SUNROOF WINDOW REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Open the sunshade to the full rearward position.
2. Cycle the sunroof window to the fully vent position.

3. IMPORTANT: The sunroof window actuator cover conceals the window actuator screws.




Remove the front sunroof window side actuator covers from left and right sides.

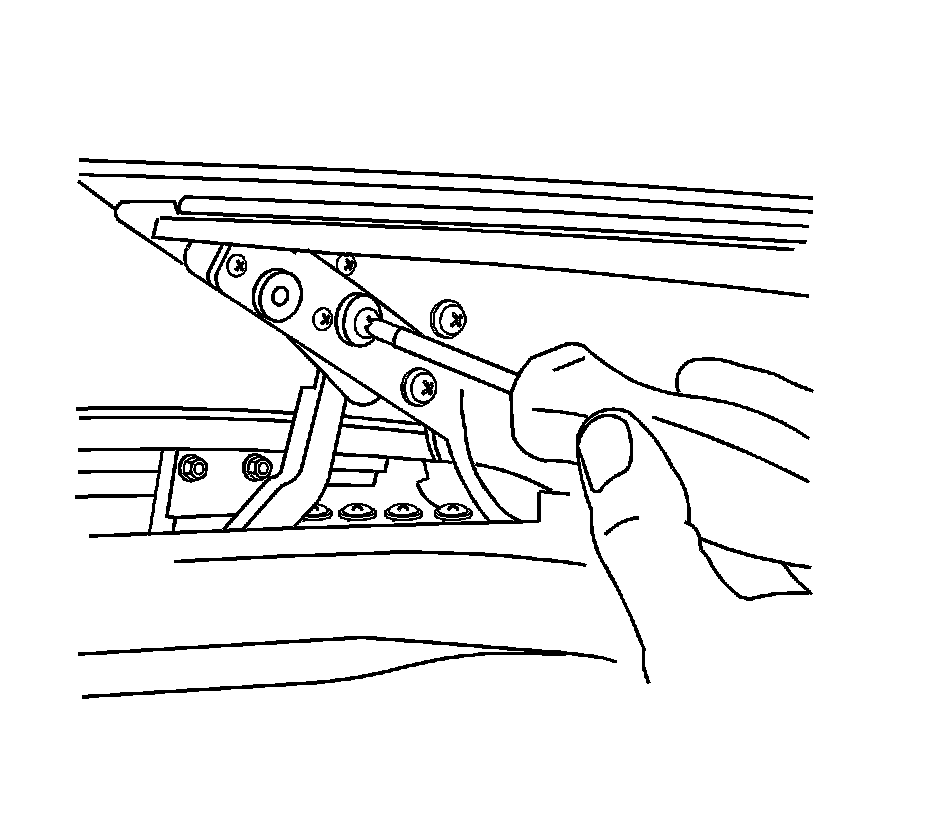

4. Remove the sunroof window actuator screws from the left and right sides.

5. IMPORTANT: Do NOT scratch the roof surface or the sunroof window.




Lift the front sunroof window (4) from the sunroof opening.

INSTALLATION PROCEDURE




1. Position the sunroof window (4) into the opening.

2. IMPORTANT: Do NOT tighten the sunroof window actuator screws all way down before inspecting the alignment of the sunroof window. Maintain a 4.00 mm (0.16 inch) gap clearance around the sunroof window edges.




Install the sunroof window front actuator screws. Do NOT tighten the screws.
3. Carefully close the sunroof window from the vent position to the full closed position.
4. Adjust the front sunroof window and sunroof windows alignment. Refer to Sunroof Window Height and Opening Fit Adjustment (C3Y) Sunroof Window Height and Opening Fit Adjustment (CF5) or Sunroof Window Alignment. Adjustments Adjustments

5. NOTE: Refer to Fastener Notice.

Tighten the front sunroof window actuator screws to the left and right sides.

Tighten the screws to 4 N.m (35 lb in).




6. Install the sunroof window side actuator front covers to the left and right sides.
7. Close the sunshade.
8. Cycle the sunroof window to ensure proper operation and fit.
