Sunroof Window Replacement - Middle

SUNROOF WINDOW REPLACEMENT - MIDDLE

REMOVAL PROCEDURE
1. Open the sunshade to the full rearward position.
2. Cycle the sunroof window to the fully closed position.

3. IMPORTANT: Do NOT fully remove actuator side covers (1). The sunroof window actuator cover conceals the window actuator screws. Use care when lifting up on the corners of the sunroof window actuator side covers to expose the screws.




From inside the vehicle, gently pull back the actuator covers and remove the sunroof window screws from left and right sides.

4. IMPORTANT: Use Care NOT to scratch the roof surface or the sunroof window.

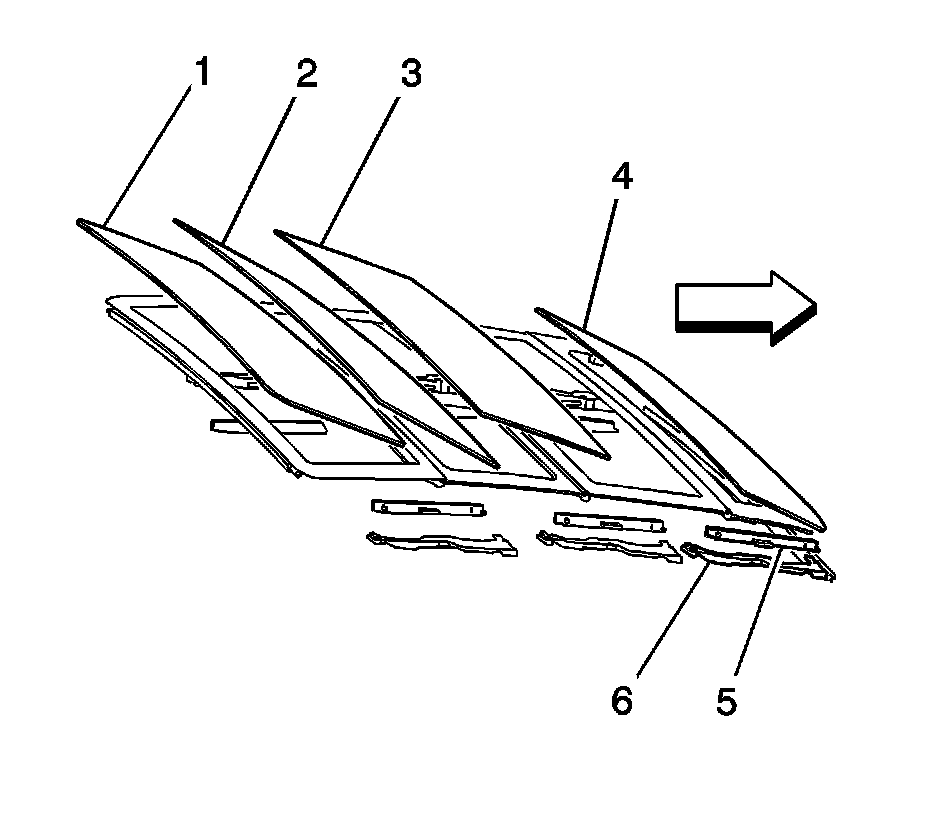

Lift the sunroof window (2 or 3) from the sunroof opening.
5. Remove the actuator cover from the sunroof.

INSTALLATION PROCEDURE




1. Position the sunroof window (2 or 3) into the opening.

2. IMPORTANT: Do NOT tighten the sunroof window actuator screws all way down before inspecting the alignment of the sunroof window. Maintain a 4.00 mm (0.16 inch) gap clearance around the sunroof window edges.




From inside the vehicle, install the sunroof window actuator screws to the left and right sides. Do Not tighten the screws fully
3. Adjust the sunroof window panel. Refer to Sunroof Window Height and Opening Fit Adjustment (C3Y) Sunroof Window Height and Opening Fit Adjustment (CF5) or Sunroof Window Alignment. Adjustments Adjustments

4. NOTE: Refer to Fastener Notice.

Tighten the sunroof window actuator screws.

Tighten the screws to 4 N.m (35 lb in).

5. Install the sunroof window side actuator covers (1) to the left and right sides.
6. Close the sunshade.
7. Cycle the sunroof window to ensure proper operation and fit.
