Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Tensioner

Seat Belt Tensioner

SIR Connector End Views

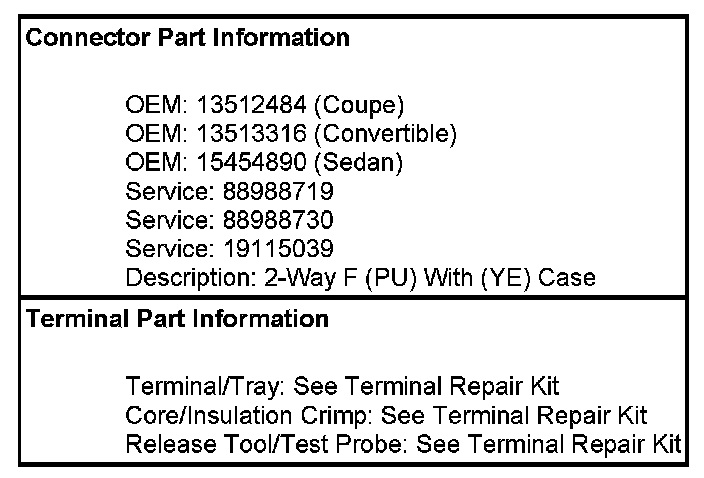

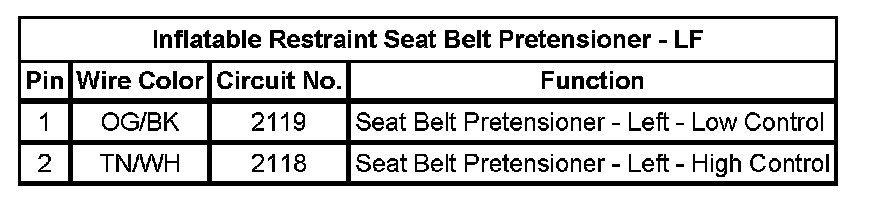

Inflatable Restraint Seat Belt Pretensioner - LF

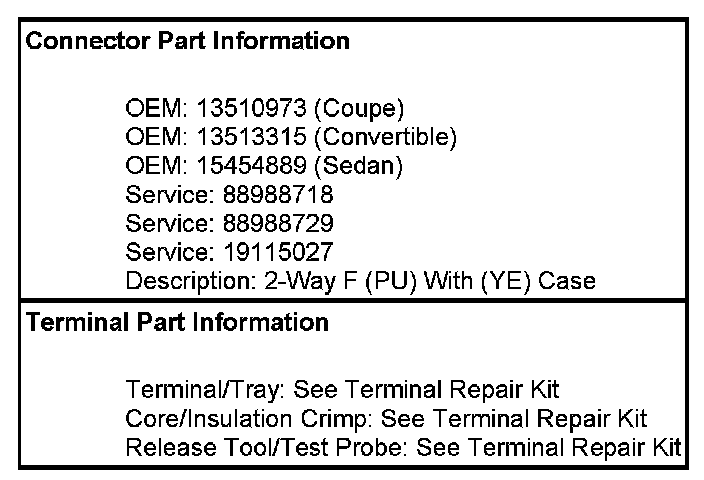

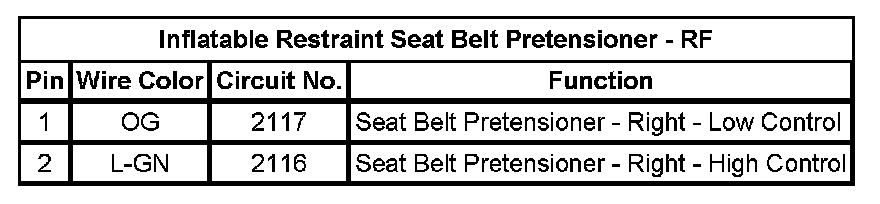

Inflatable Restraint Seat Belt Pretensioner - RF
