Clutch Slave Cylinder: Service and Repair

Clutch Concentric Actuator Cylinder Replacement

Removal Procedure

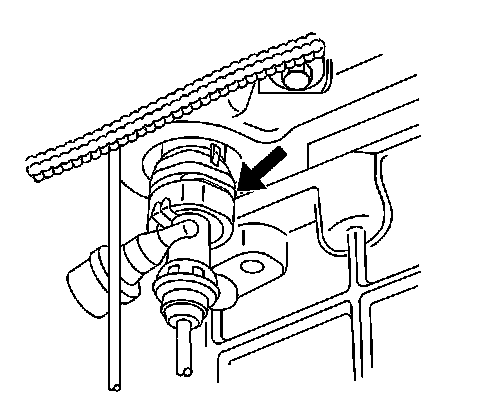

1. Disconnect the clutch actuator cylinder line.
2. Remove the transmission.




3. Remove the clutch actuator cylinder body bolts.




4. Remove the upper line retainer bolt.
5. Remove the actuator.

Installation Procedure

1. Lubricate the inside diameter of the bearing with GM P/N 12345777, or equivalent.





Notice: Refer to Fastener Notice.

2. Install the clutch actuator cylinder and the body bolts.

Tighten the bolts to 10 N.m (89 lb in).




3. Install the upper line retainer bolt.
4. Install the transmission.




5. Connect the clutch actuator cylinder line.
6. Bleed the hydraulic system. Refer to Hydraulic Clutch Bleeding.
