Radio Front Side Door Lower Speaker Replacement

Radio Front Side Door Lower Speaker Replacement

Removal Procedure





1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .

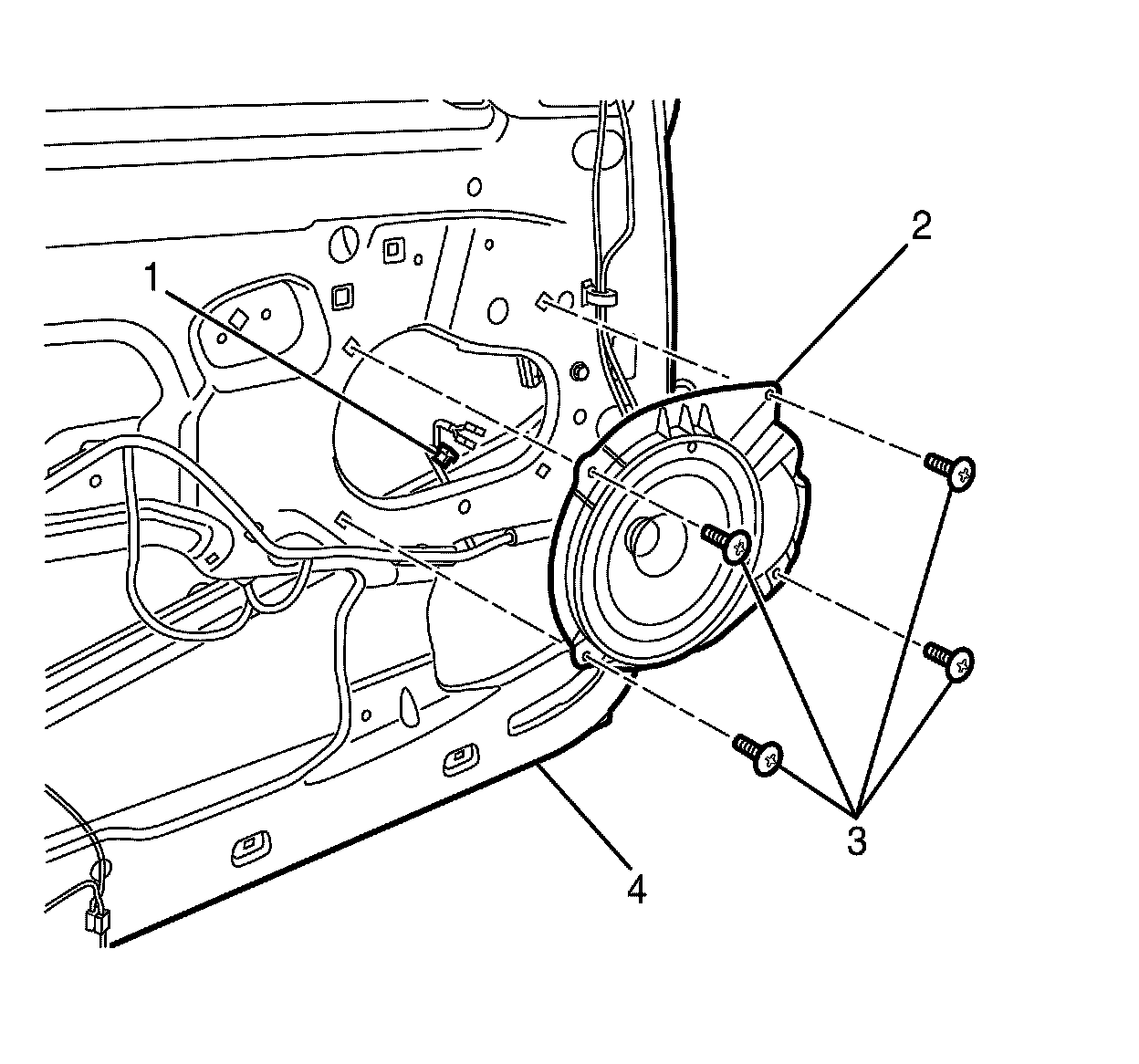

2. Remove the speaker assembly to door frame retaining screws (3).
3. Disconnect the electrical connector(s) (1).
4. Remove the speaker assembly (2) from the door frame (4).



Installation Procedure





1. Connect the electrical connector(s) (1).
2. Install the speaker assembly (2) to the door frame (4).
Notice: Refer to Fastener Notice (Fastener Notice) .


3. Install the front speaker assembly to door frame attaching screws (3).

Tighten the screws to 2 N.m (18 lb in).

4. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .
