Seat Belt Tensioner



Component Connector End Views

Seat Belt Buckle Pretensioner - Driver

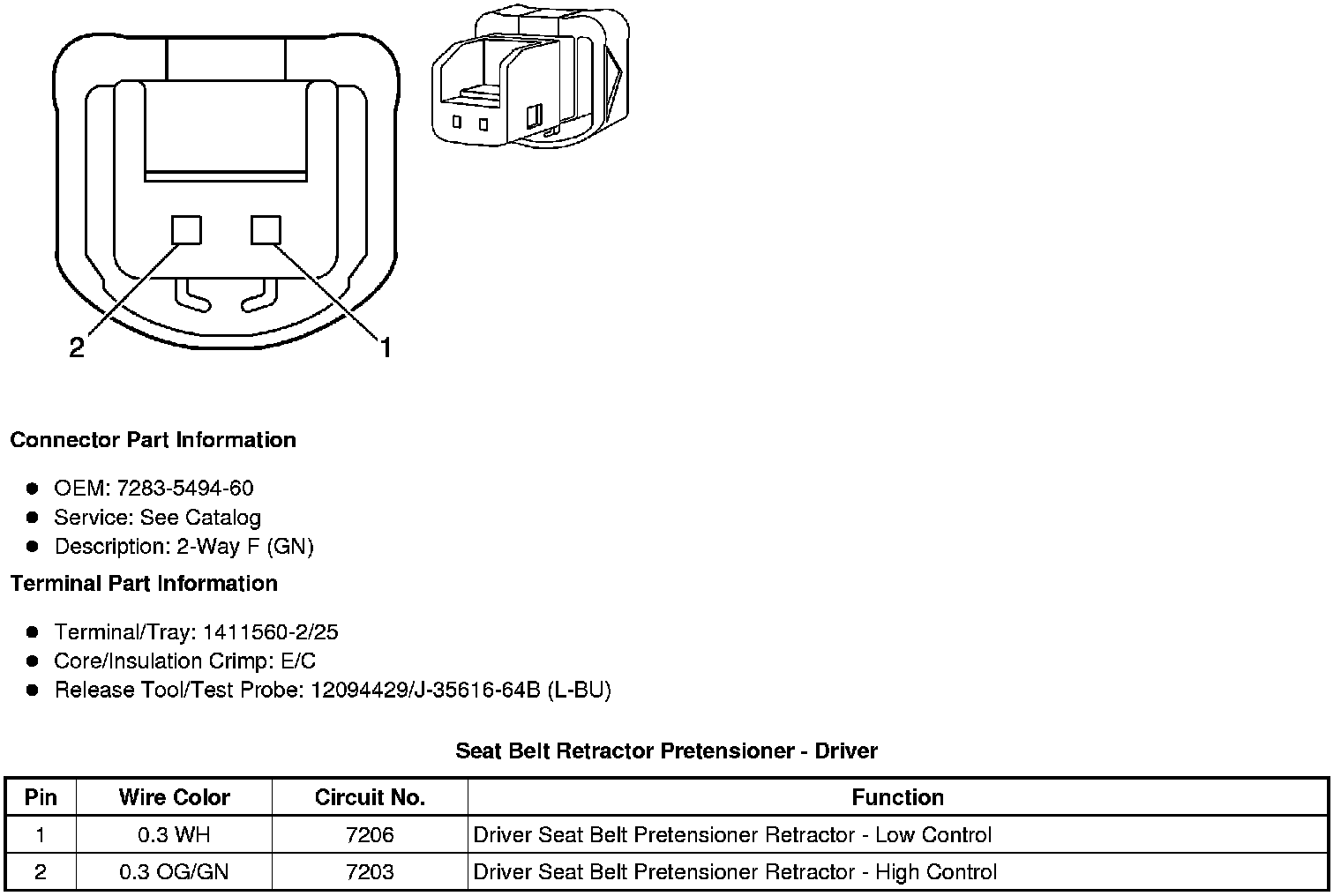

Seat Belt Retractor Pretensioner - Driver






Seat Belt Buckle Pretensioner - Passenger

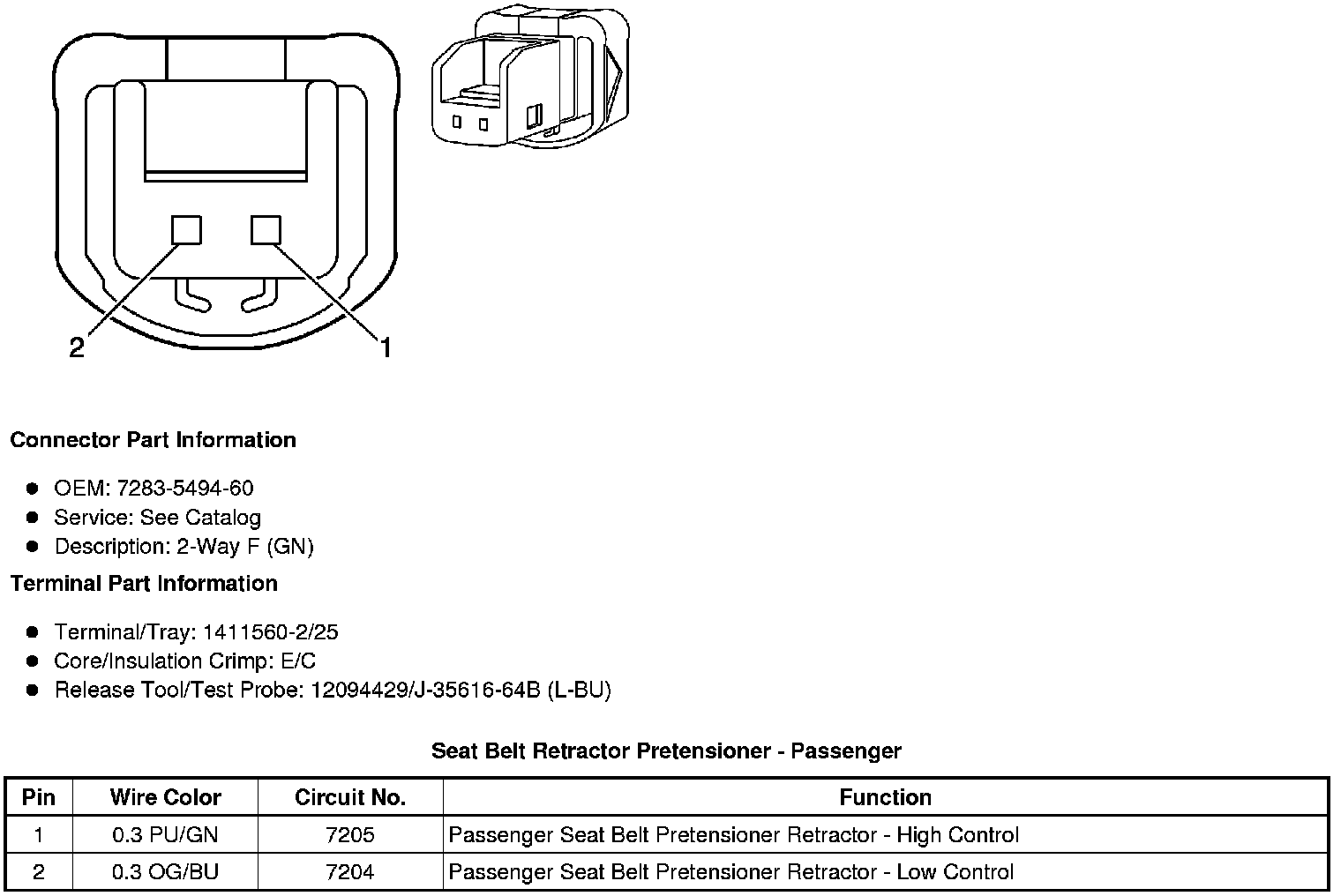

Seat Belt Retractor Pretensioner - Passenger
