Air Door Actuator / Motor: Diagrams



Component Connector End Views

Air Temperature Actuator (C60)

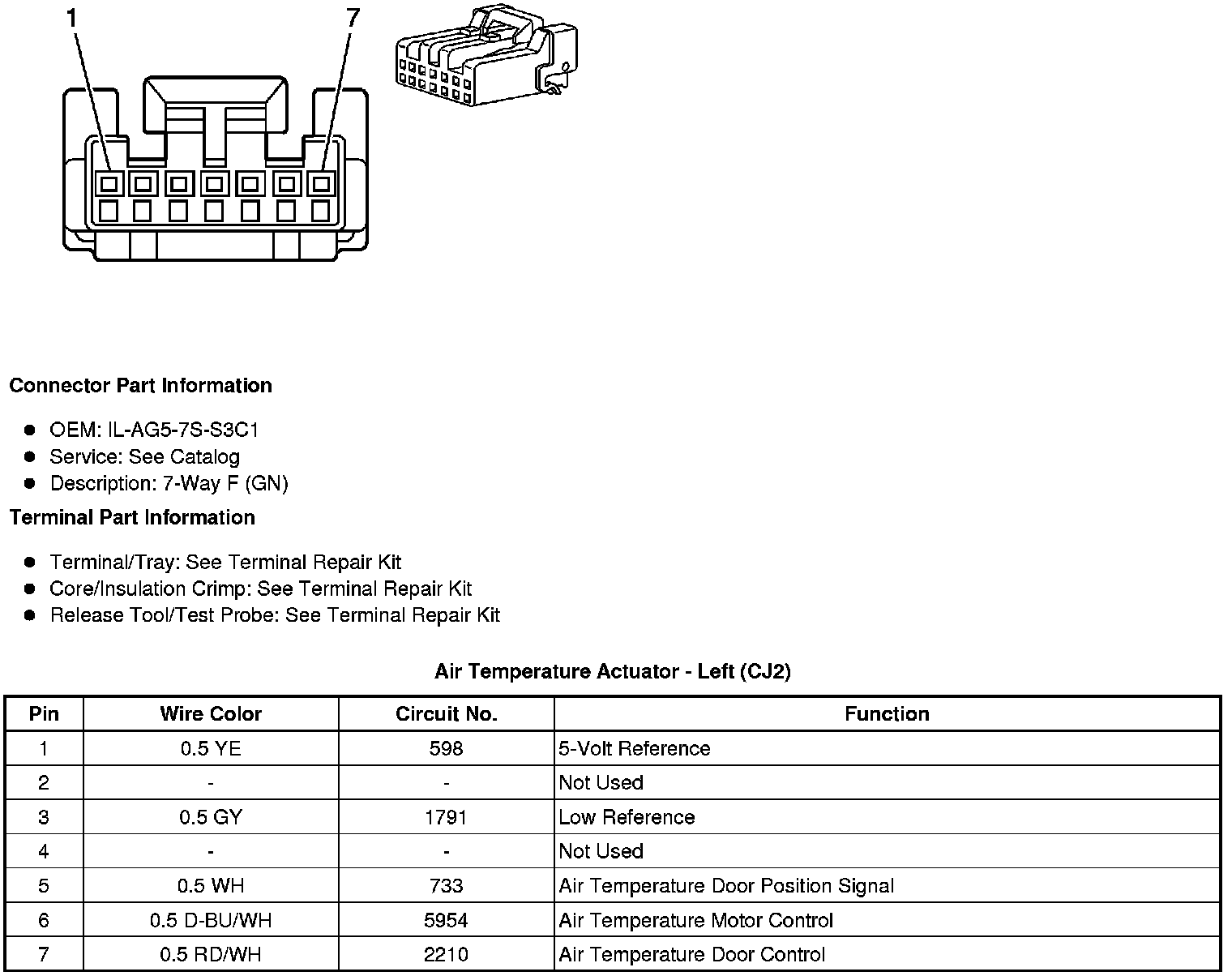

Air Temperature Actuator - Left (CJ2)

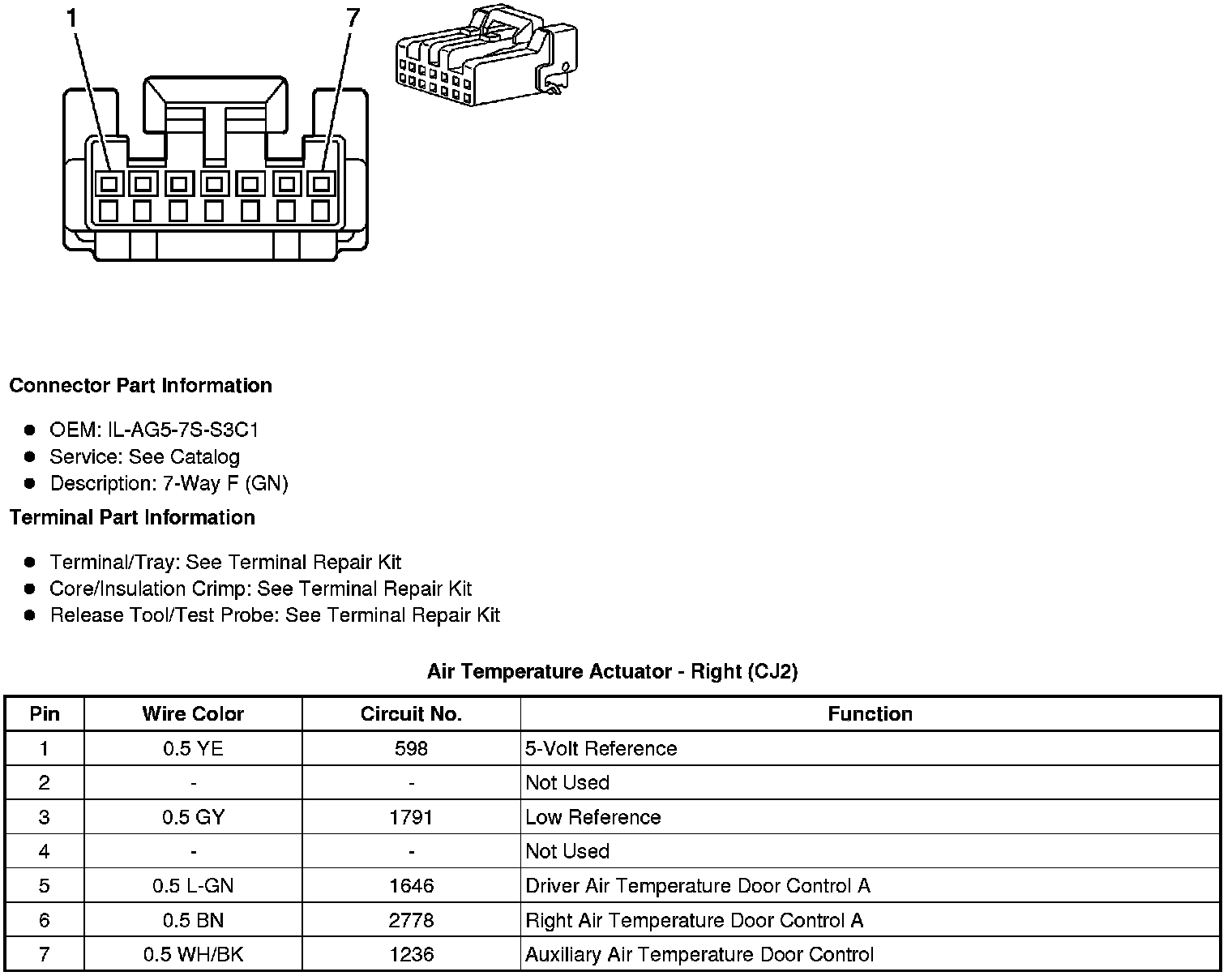

Air Temperature Actuator - Right (CJ2)








Component Connector End Views

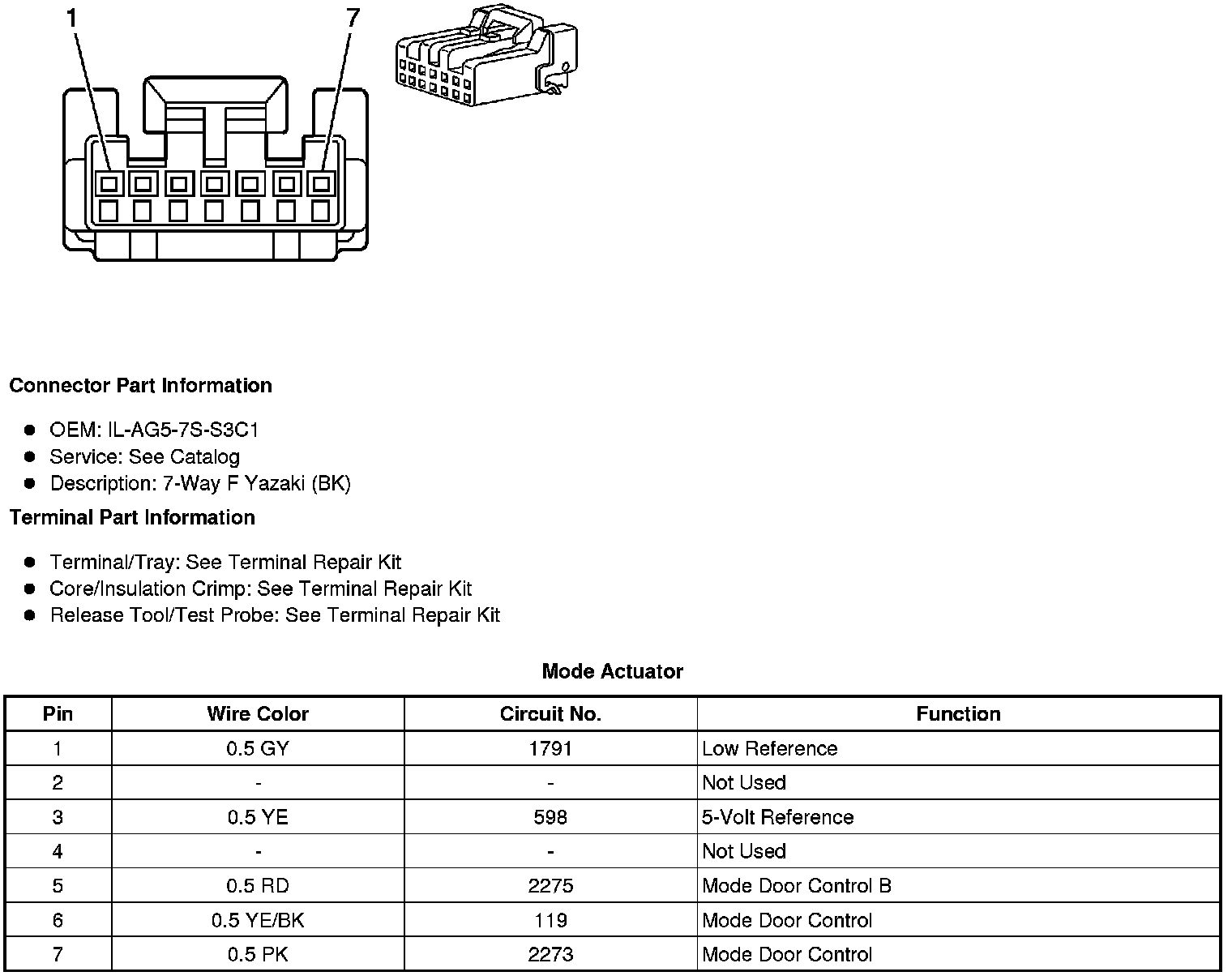

Mode Actuator






Mode Actuator - Auxiliary
