Engine Mount Bracket Replacement - Left



Engine Mount Bracket Replacement - Left Side

Removal Procedure

1. Remove the left side engine mount. Refer to Engine Mount Replacement - Left Side (Service and Repair) .

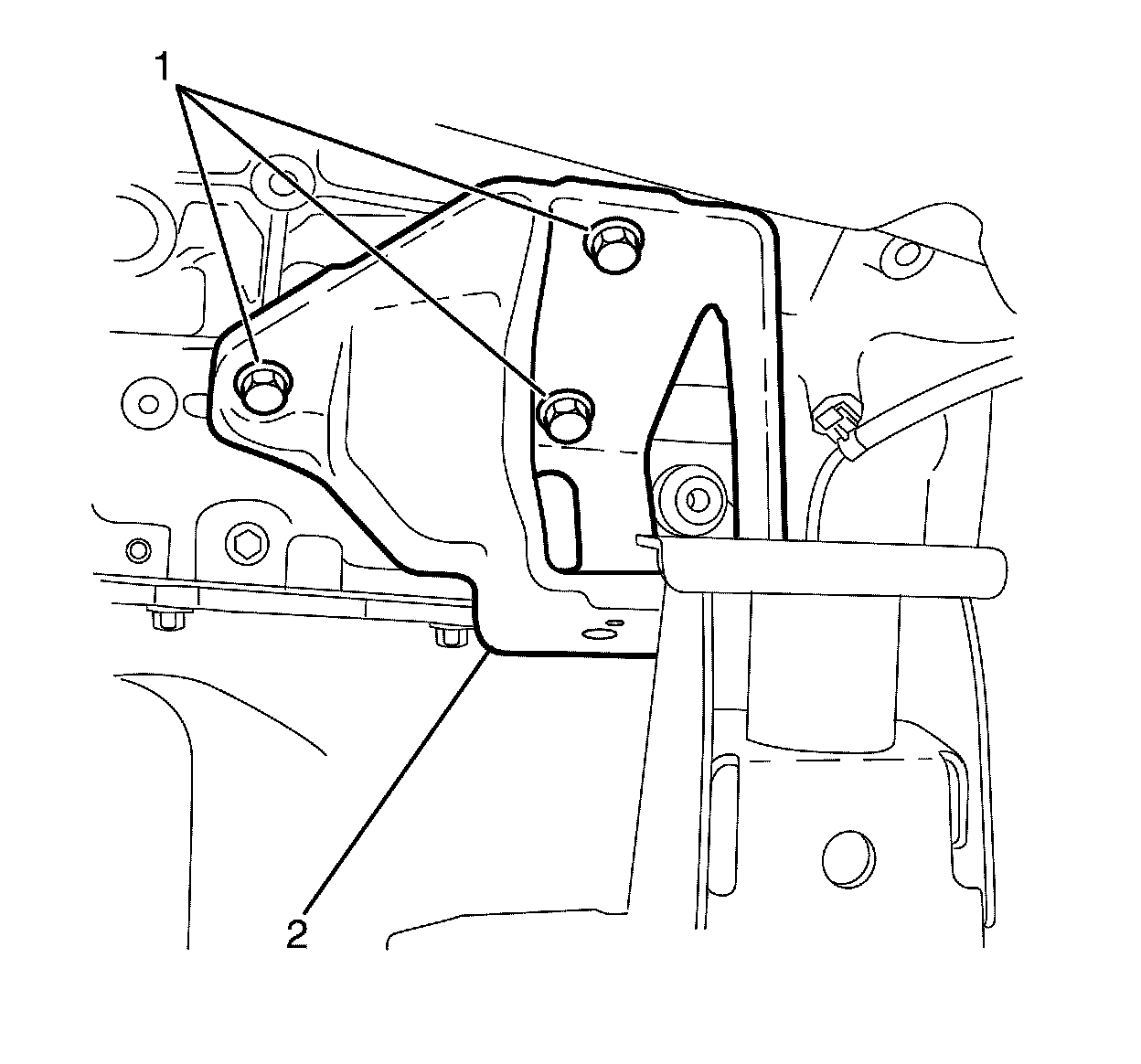

2. Remove the left side engine mount bracket to cylinder block retaining bolts (1).
3. Remove the left side engine mount bracket (2).



Installation Procedure





1. Install the left side engine mount bracket (2).

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the left side engine mount bracket to cylinder block retaining bolts (1).

Tighten the bolt to 50 N.m (37 lb ft).

3. Install the left side engine mount. Refer to Engine Mount Replacement - Left Side (Service and Repair) .
