Instrument Panel Center Air Outlet Deflector Replacement

Instrument Panel Center Air Outlet Deflector Replacement

Removal Procedure

1. Remove the I/P upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement (Service and Repair) .

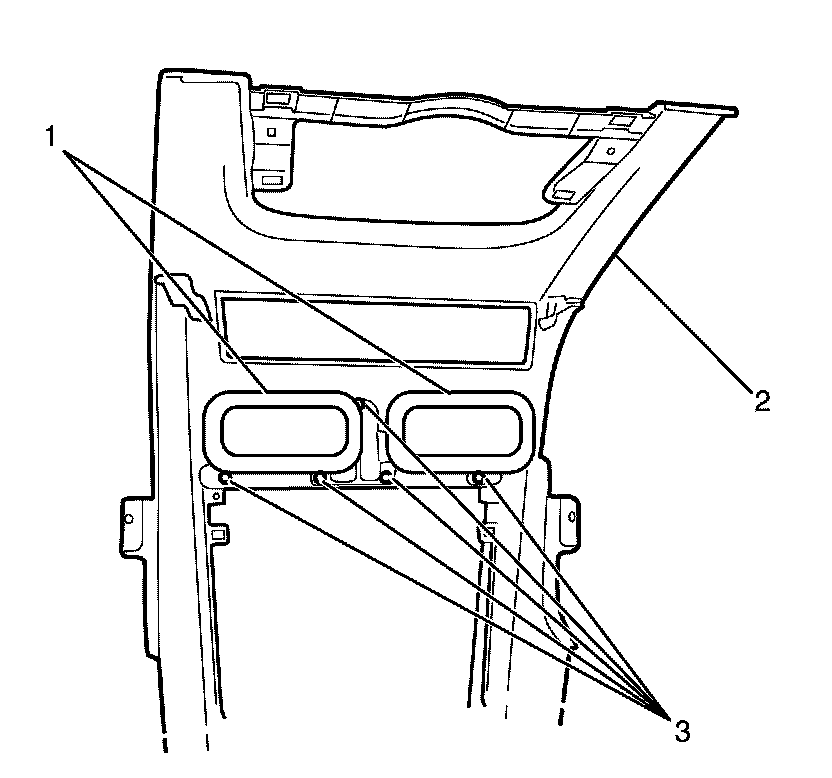

2. Remove the I/P center air outlet deflector to I/P upper trim panel retaining screws (3).
3. Remove the I/P center air outlet deflector (1) from the I/P upper trim panel (2).



Installation Procedure





1. Install the I/P center air outlet deflector (1) to the I/P upper trim panel (2).

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the I/P center air outlet deflector to I/P upper trim panel retaining screws (3).

Tighten the screws to 2 N.m (18 lb in.)

3. Install the I/P upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement (Service and Repair) .
