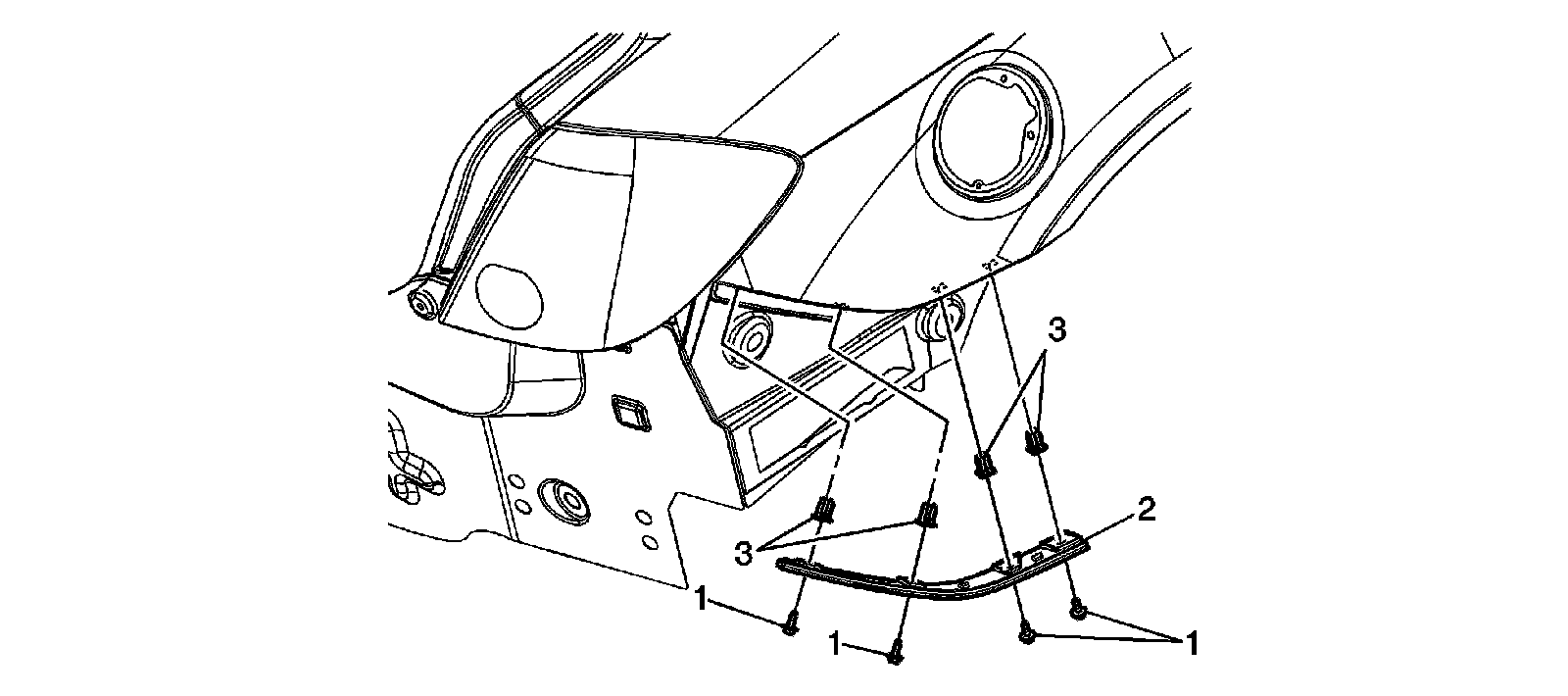

Rear Bumper Fascia Outer Support Replacement (Sedan)

Rear Bumper Fascia Outer Support Replacement (Sedan)

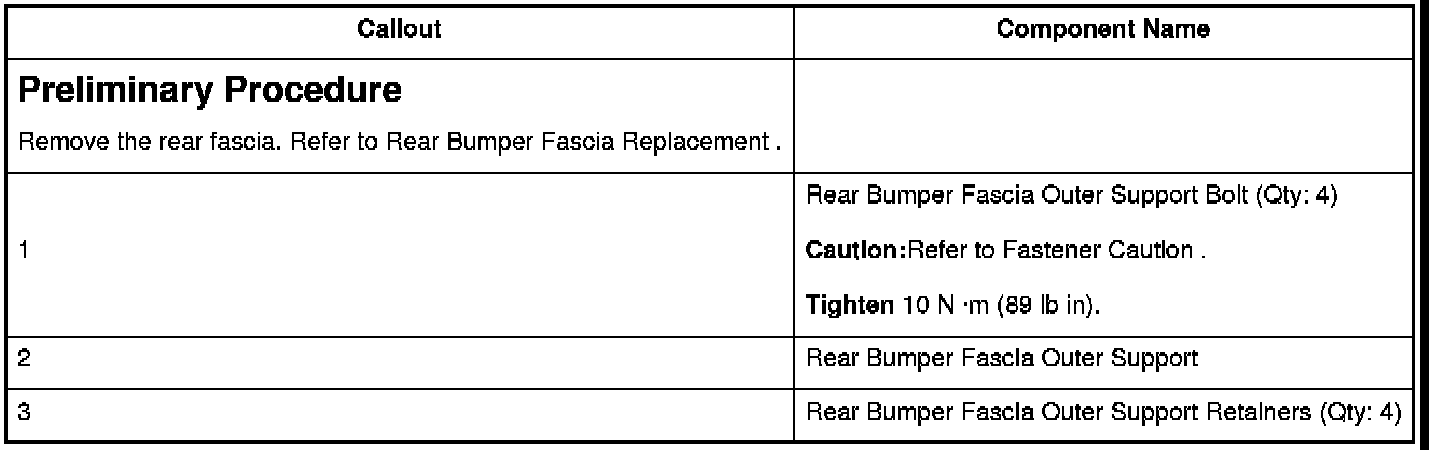

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
