Antenna, Radio




Component Connector End Views

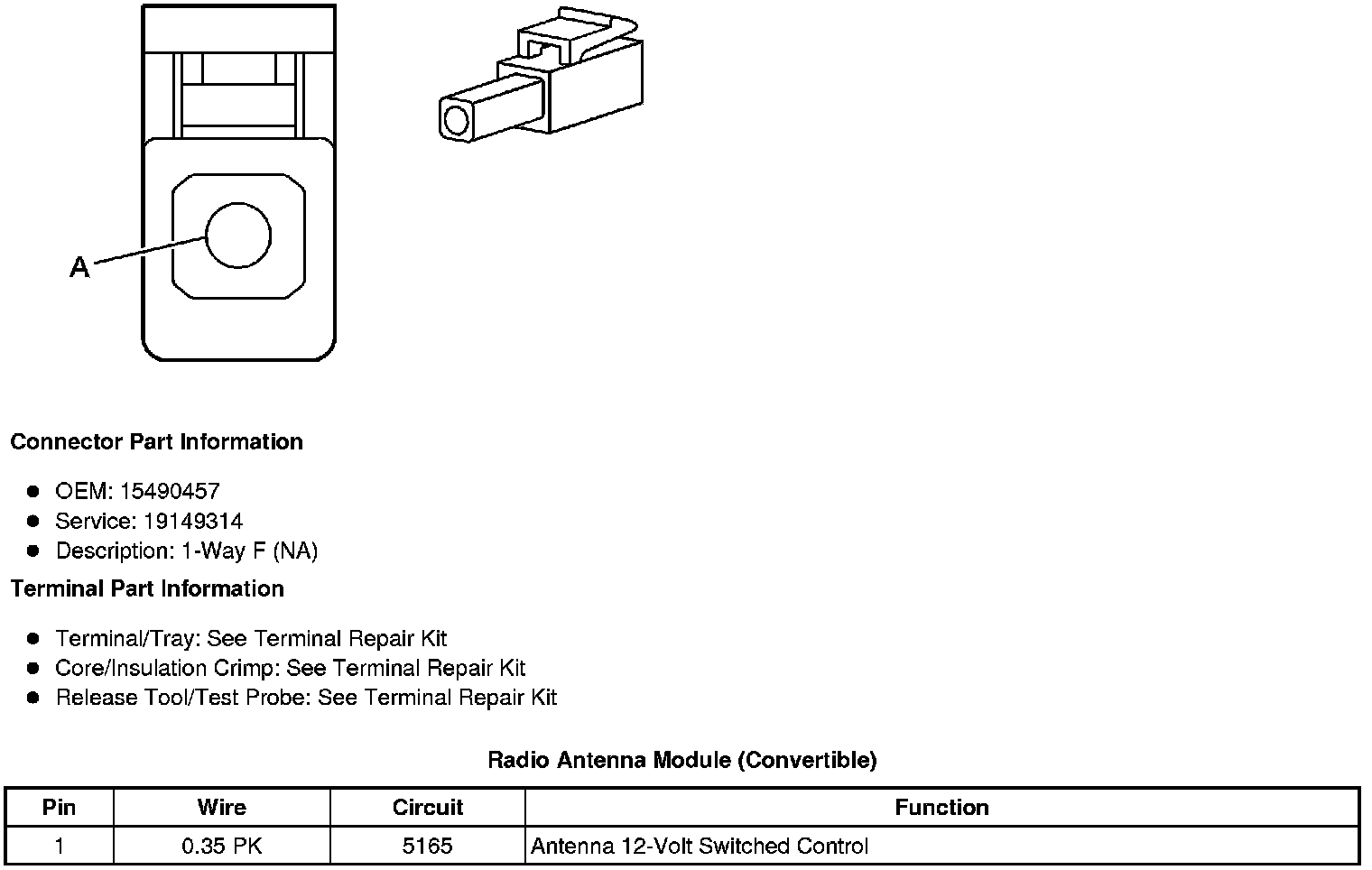

Radio Antenna Module (Convertible)

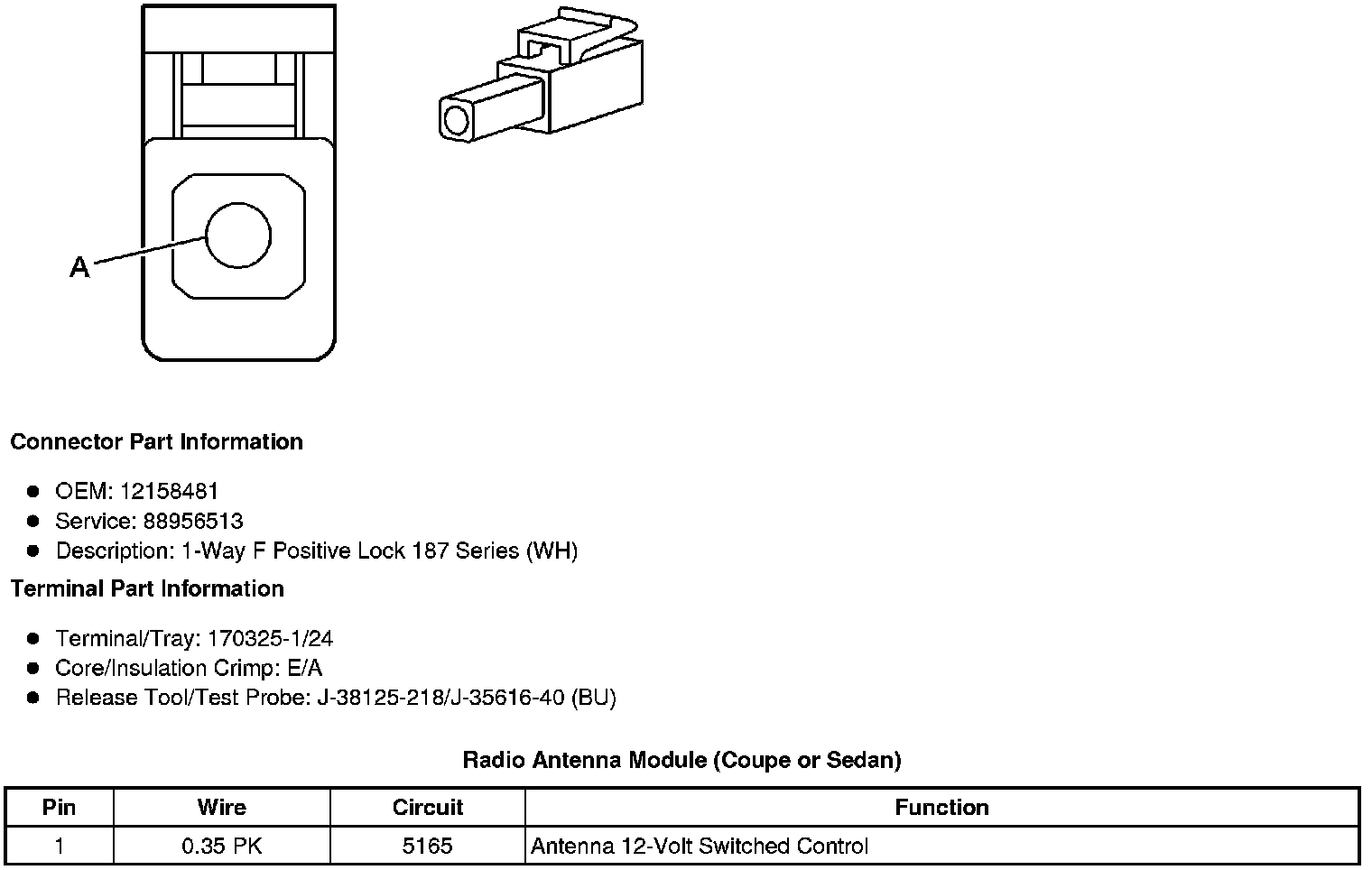

Radio Antenna Module (Coupe or Sedan)
