Rear Bumper Fascia Reflector Replacement

Rear Bumper Fascia Reflector Replacement


Removal Procedure

1.Remove rear bumper fascia molding. Refer to Rear Bumper Fascia Molding Replacement .

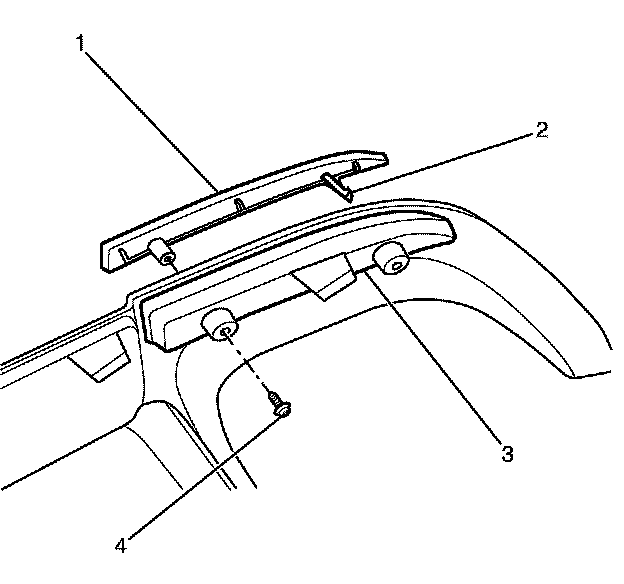

1.Remove the rear bumper fascia molding to rear bumper fascia reflector retaining screw (4).

Note:Care should be taken not to damage the rear bumper fascia reflector retaining clip (2)

2.Remove the rear bumper fascia reflector (1) from the rear bumper fascia molding (3).

Installation Procedure





Note:Make sure that the rear bumper fascia reflector retaining clip (2) engages the rear bumper fascia molding (3).

1.Install the rear bumper fascia reflector (1) to the rear bumper fascia molding (3).

Caution:Refer to Fastener Caution .

2.Install the rear bumper fascia molding to rear bumper fascia reflector retaining screw (4) and tighten to20 N �m (18 lb. ft).

3.Install the rear bumper fascia molding. Refer to Rear Bumper Fascia Molding Replacement .
