Instrument Panel Center Air Outlet Deflector Replacement

Instrument Panel Center Air Outlet Deflector Replacement

Removal Procedure

1. Remove the I/P upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement (Service and Repair).

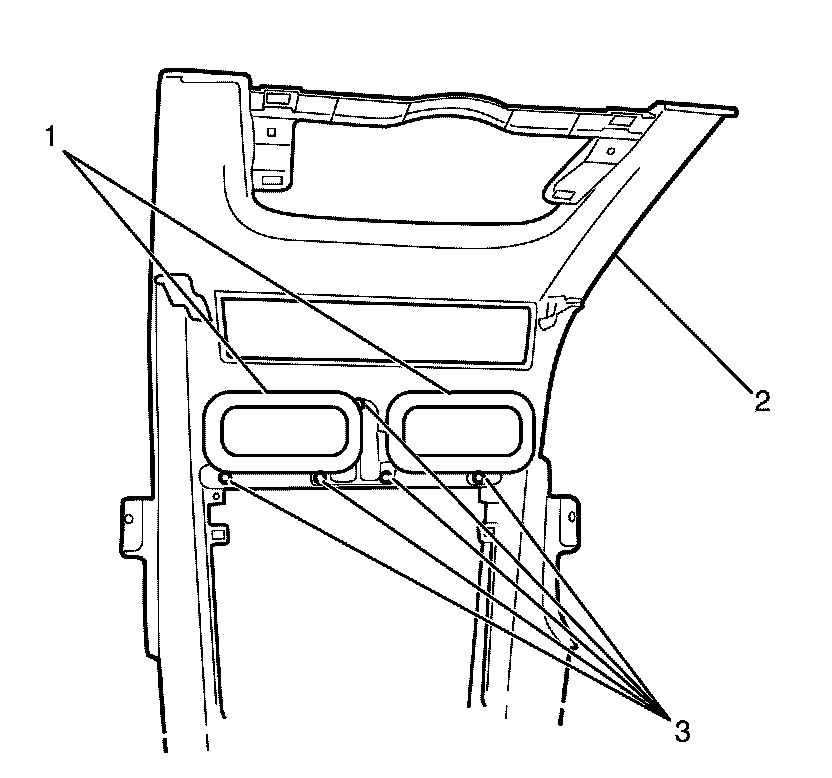

2. Remove the I/P center air outlet deflector to I/P upper trim panel retaining screws (3).
3. Remove the I/P center air outlet deflector (1) from the I/P upper trim panel (2).

Installation Procedure




1. Install the I/P center air outlet deflector (1) to the I/P upper trim panel (2).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the I/P center air outlet deflector to I/P upper trim panel retaining screws (3) and tighten to 2 Nm (18 lb in).
3. Install the I/P upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement (Service and Repair).
