Power Steering Pump: Locations

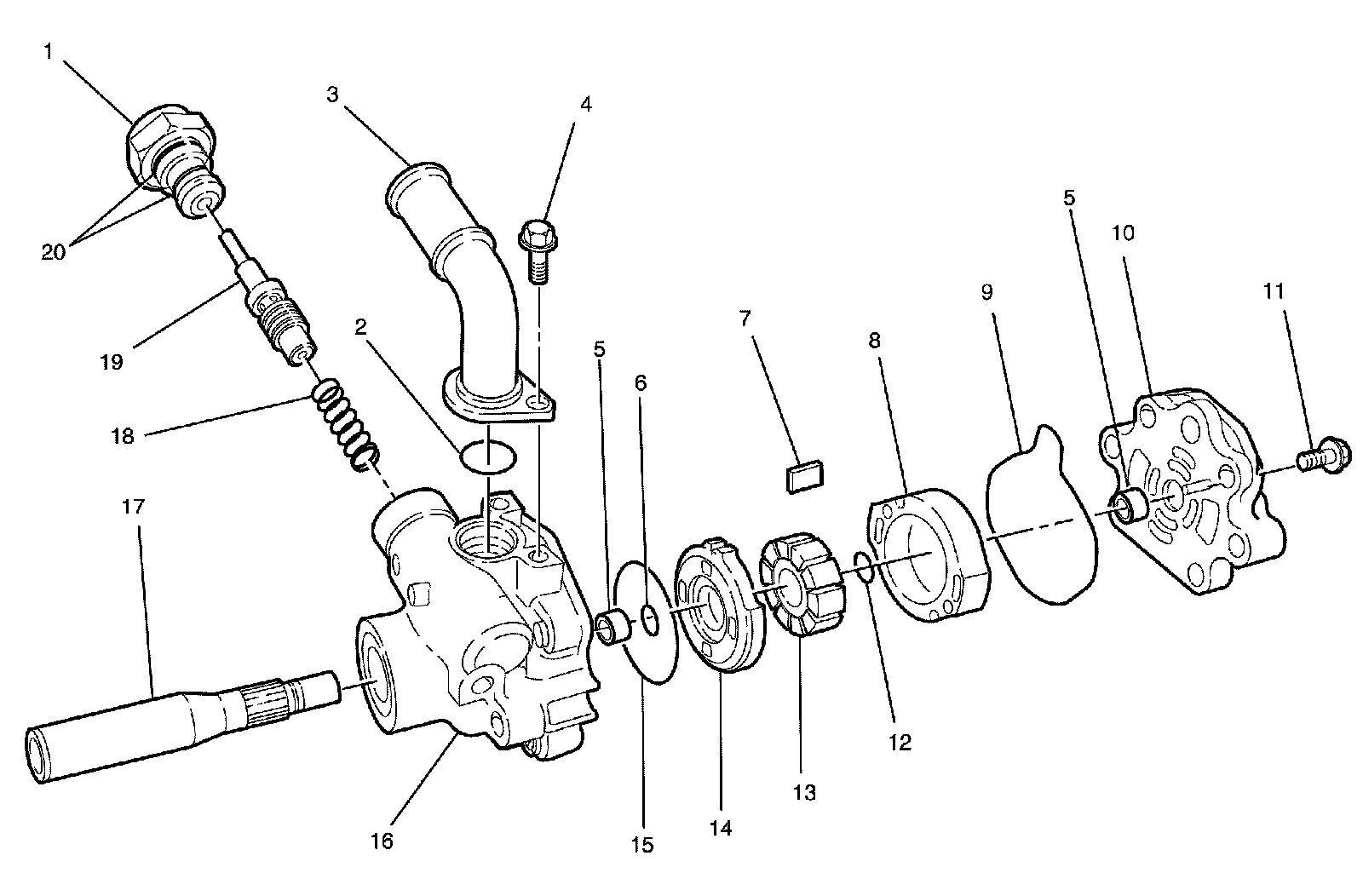

Power Steering Pump Disassembled View

Power Steering Pump




1 - High Pressure Outlet Fitting
2 - Low Pressure Inlet Pipe O-ring
3 - Low Pressure Inlet Pipe
4 - Low Pressure Inlet Pipe to Power Steering Pump Housing Retaining Bolt
5 - Pump Housing Bushes
6 - Thrust Plate O-Ring - Small
7 - Vane, Ten places
8 - Power Steering Pump Ring
9 - Rear End Plate Seal
10 - Rear End Plate
11 - Rear End Plate Attaching Bolt, 4 Places
12 - Full Circumference Retainer Ring
13 - Rotor
14 - Thrust Plate
15 - Thrust Plate O-Ring - Large
16 - Pump Housing
17 - Power Steering Pump Drive Shaft
18 - Droop Flow Control Valve Spring
19 - Droop Flow Control Valve Assembly
20 - High Pressure Outlet Fitting O-Rings
