Rear Bumper Shock Absorber: Service and Repair

Rear Energy Absorber Replacement

Removal Procedure




1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Rear Bumper Fascia Replacement).

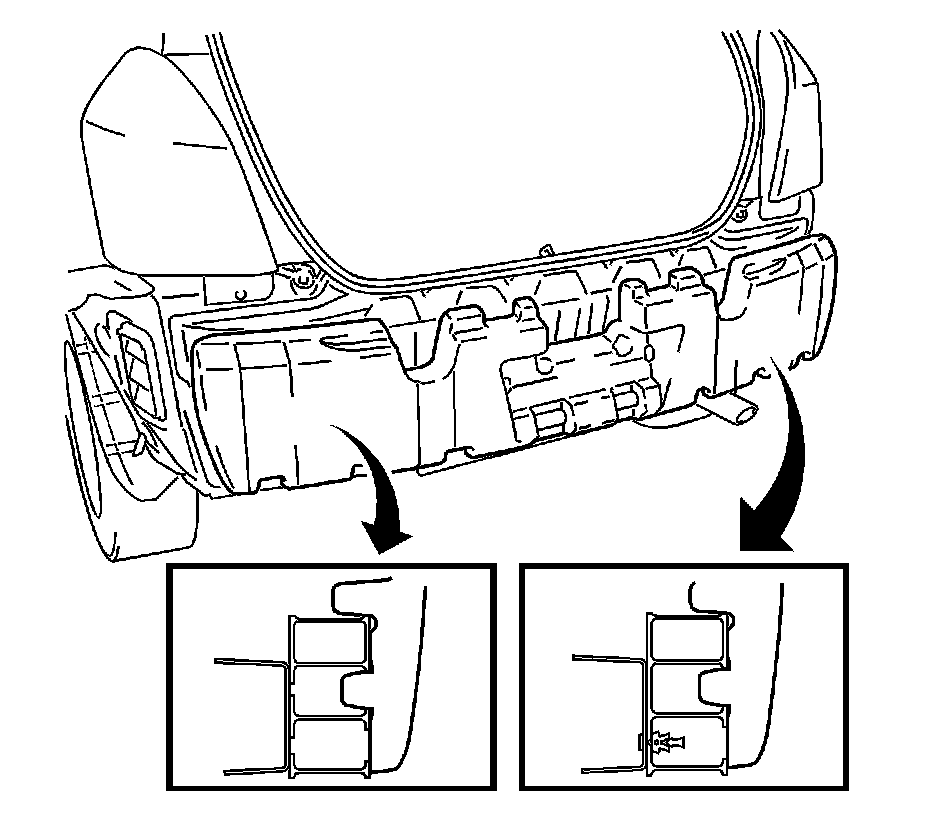

2. Disengage the two guides and remove the rear energy absorber.

Installation Procedure




1. Position the reear energy absorber to the impact bar.
2. Install the rear energy absorber making sure to engage the two guides.
