Rear Suspension

Stabilizer Shaft Insulator Replacement (Except All Wheel Drive and GT)

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

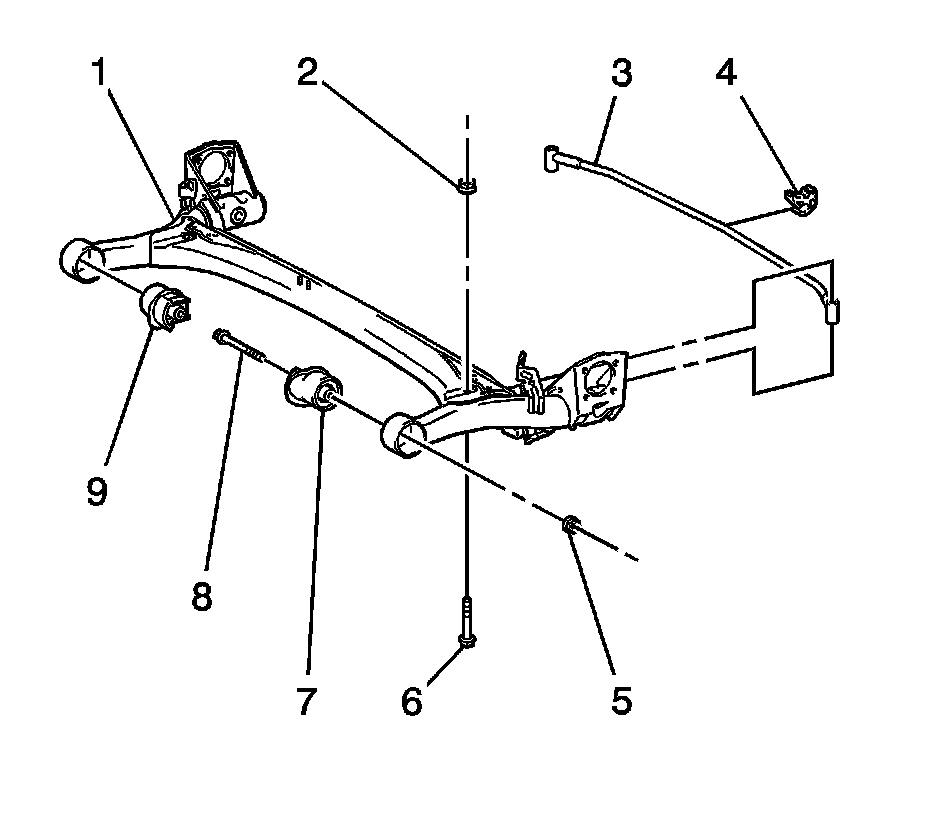

2. Remove the insulator (4) from the stabilizer shaft (3).

Installation Procedure




1. Install the insulator (4) to the center of the stabilizer shaft (3).
2. Lower the vehicle.
