Front Bumper Fascia Extension Replacement

Front Bumper Fascia Extension Replacement


Removal Procedure

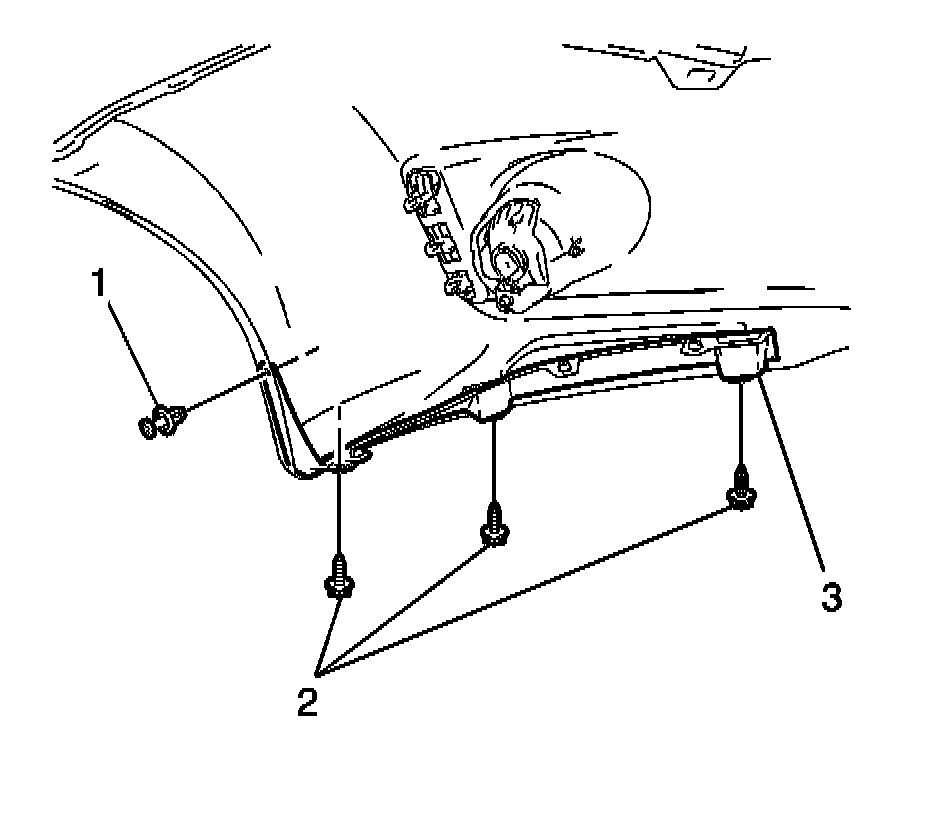

1.Remove the push-retainer (1).

2.Remove the screws (2).

3.Remove the fascia extension (3) from the front bumper fascia.

Installation Procedure





1.Position the fascia extension (3) to the front bumper fascia.

2.Install the push-retainer (1).

Caution:Refer to Fastener Caution .

3.Install the screws (2) and tighten to2.5 N �m (22 lb in).
