Side Air Bag

Component Connector End Views

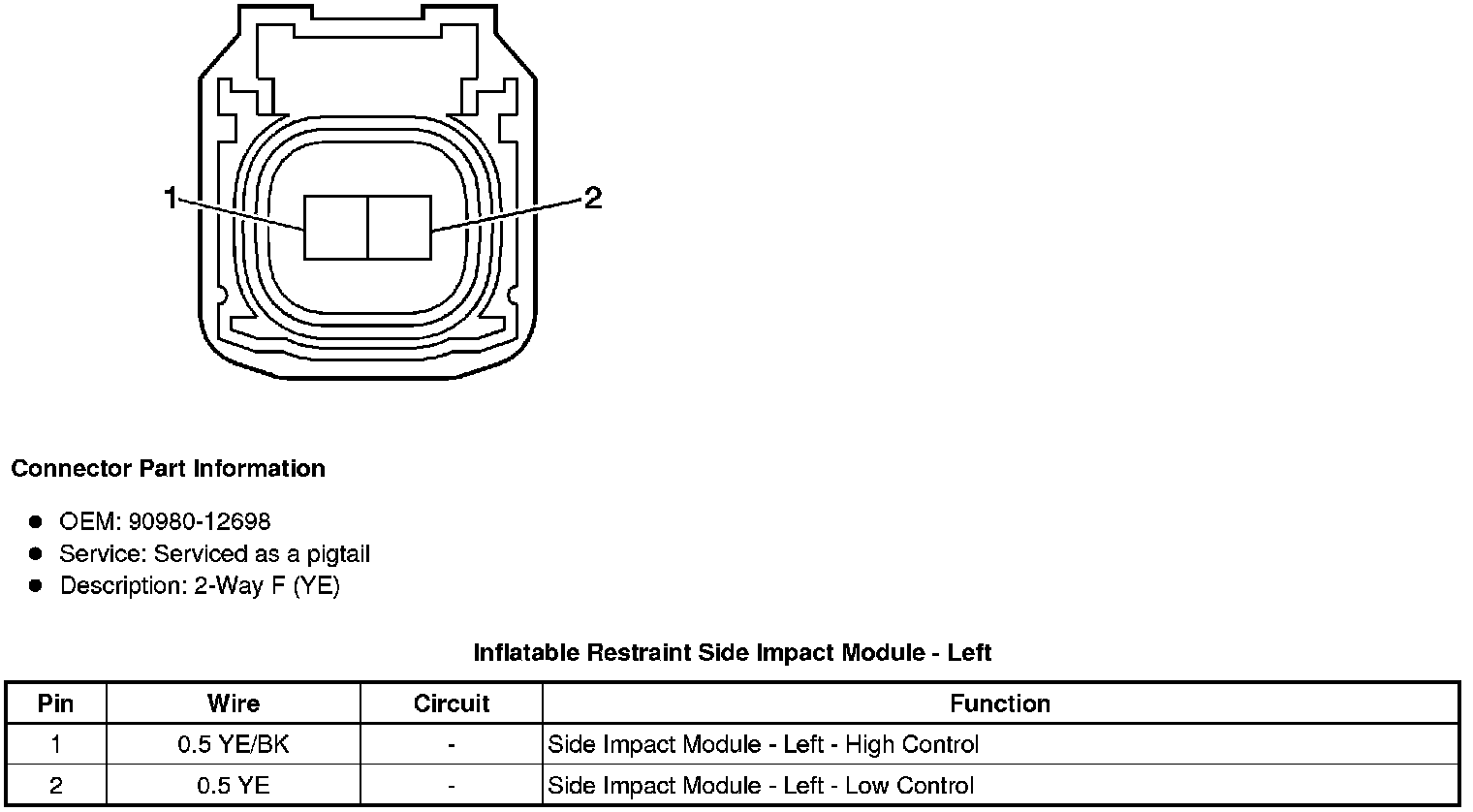

Inflatable Restraint Side Impact Module - Left

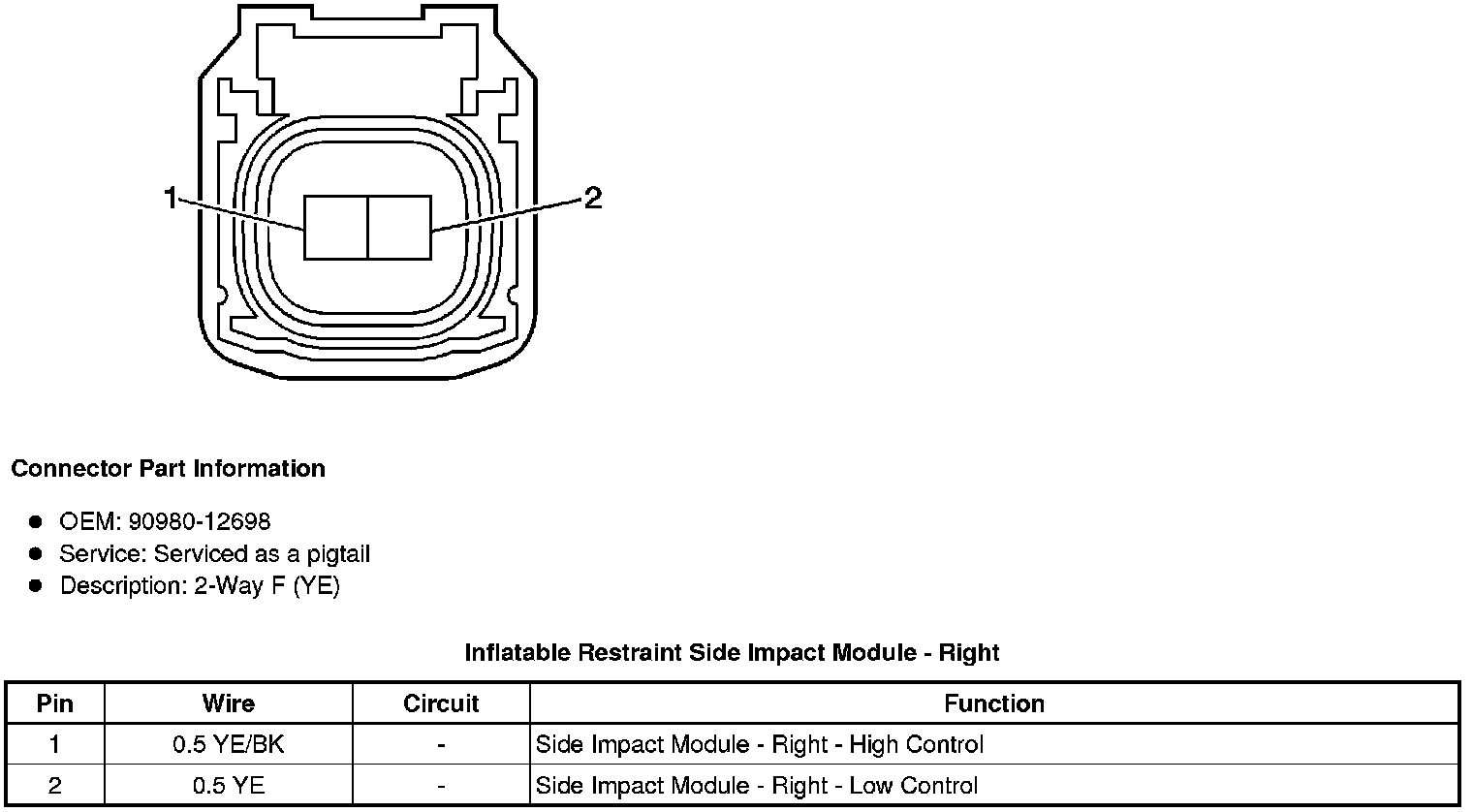

Inflatable Restraint Side Impact Module - Right
