Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC

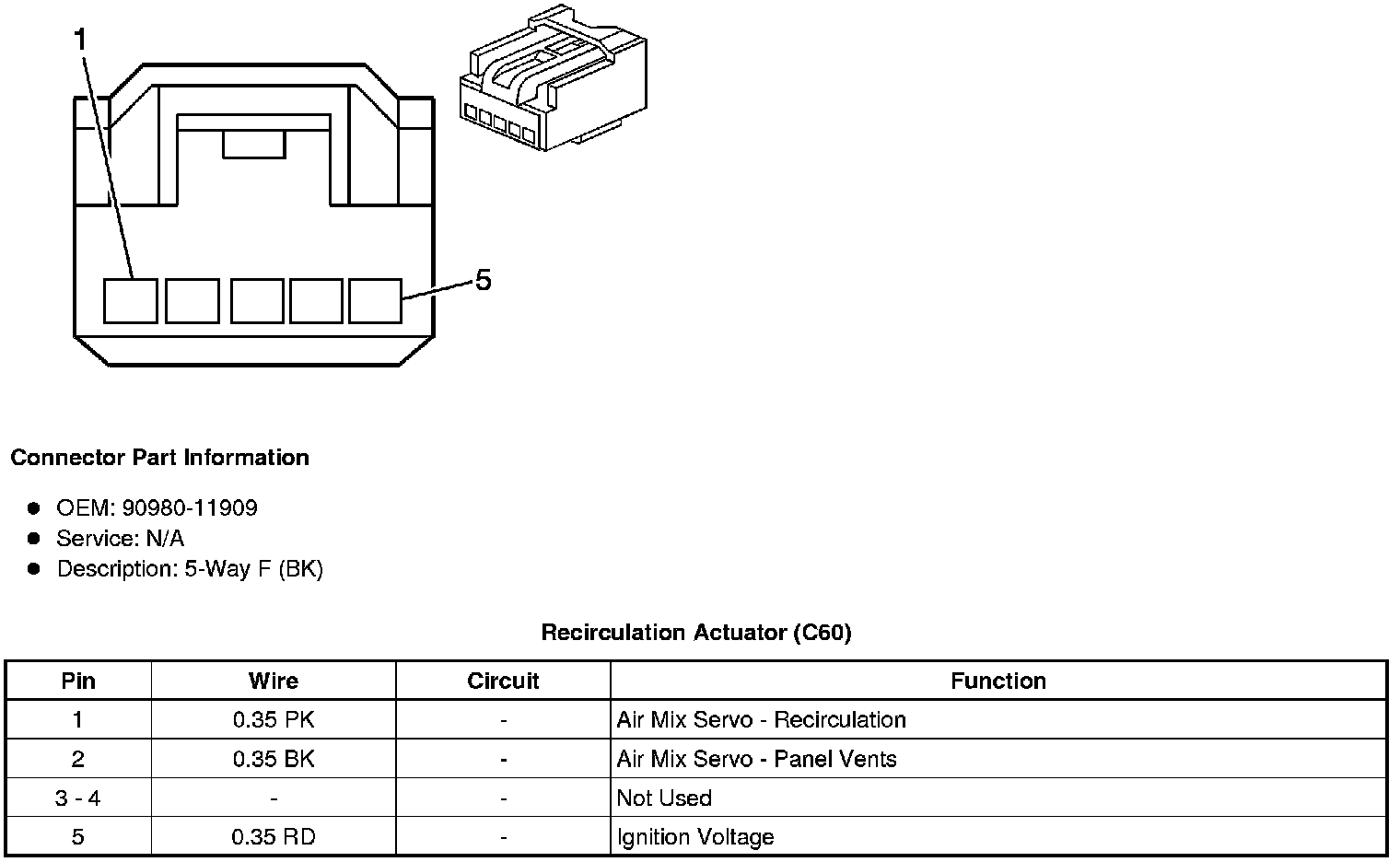

Component Connector End Views
Recirculation Actuator (C60)
